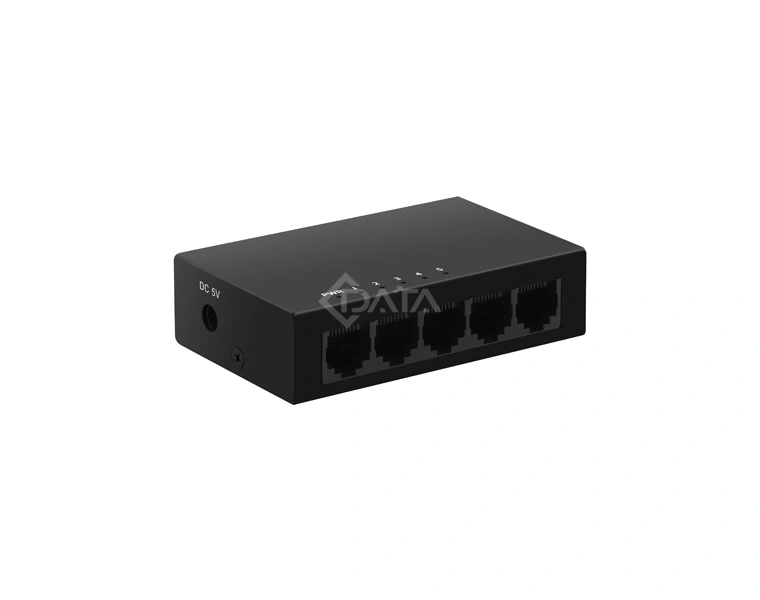

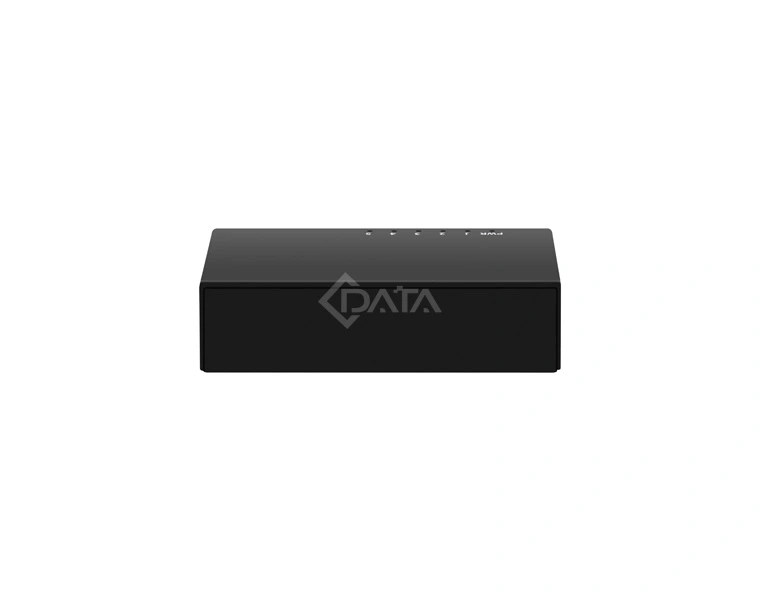

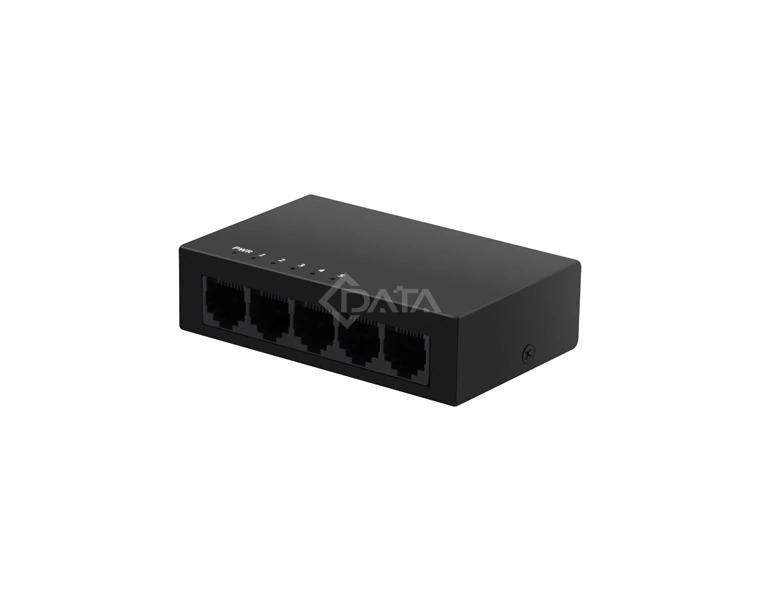

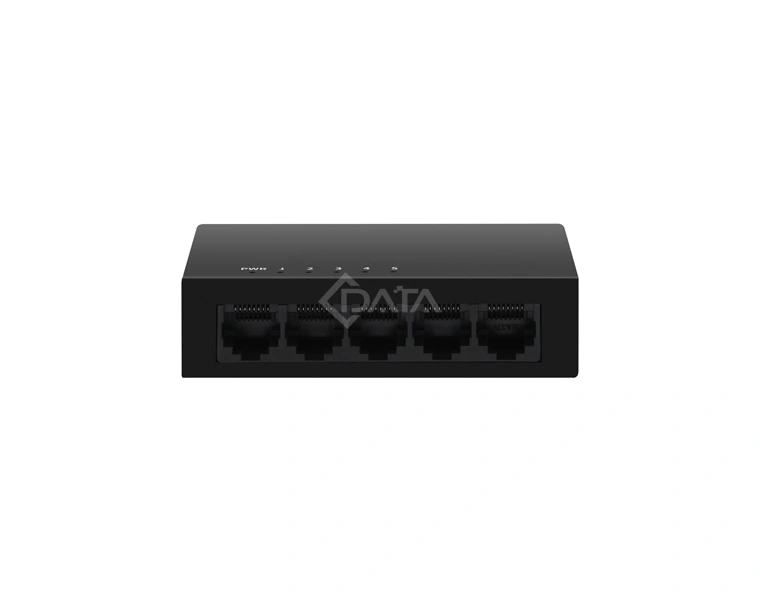

The Fast Ethernet Switch provides 5 10/100/1000Mbps Auto-Negotiation RJ45 ports. All ports support Auto MDI/MDIX function, eliminating the need for crossover cables or Uplink ports. The Switch is Plug-and-Play and each port can be used as general ports or Uplink ports and can be simply plugged into a server, a hub or a switch, using straight cable or crossover cable.
| Item | CS2050G-M |
| Specifications | 5*RJ45 |
Interface | 5 10/100/1000/Mbps RJ45 Ports AUTO Negotiation/AUTO MDI/MDIX |
Power | Input: 5VDC /1A |
Transfer Method | Store and Forward |
Advanced Functions | Green Technology, saving power up to70% 802.3X Flow Control, Back Pressure Auto-Uplink Every Port |
Package Contents | 5-Port 10/100/1000Mbps Desktop Switch Power Adapter User Guide |
Environment | Operating Temperature: 0℃~40℃ (32℉~104℉); Storage Temperature: -40℃~70℃ (-40℉~158℉); Operating Humidity: 10%~90% non-condensing; Storage Humidity: 5%~90% non-condensing |
