EYDFA

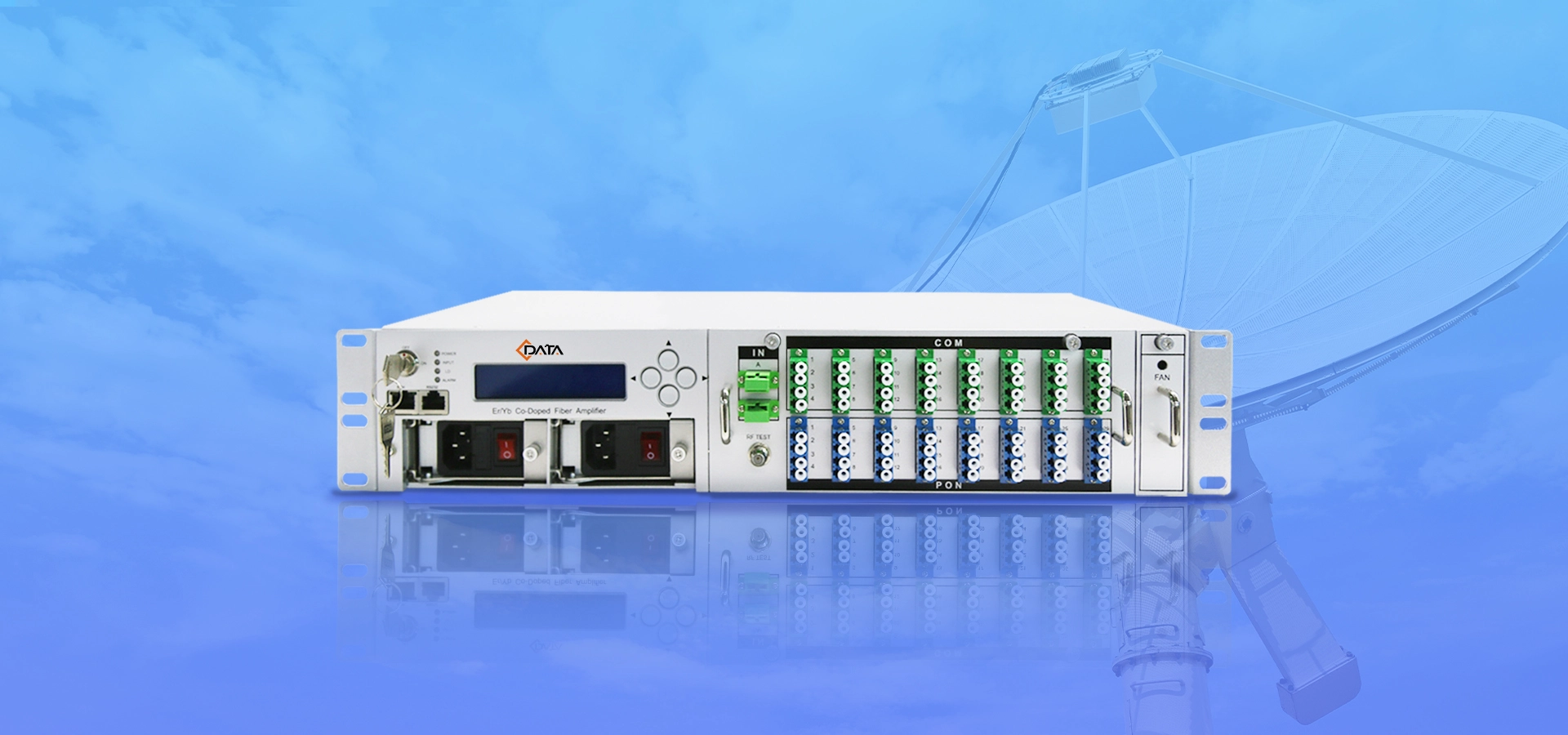

C-Data 1550nm EYDFA HF3915C-B1 B2
C-Data 1550nm EYDFA HF3915C-B1 B2

1RU/2RU optical fiber amplifier,up to 32 output with 28-40dB Gain

The C-Data EYDFA HF3915C series represents a cutting-edge optical fiber amplifier designed to elevate optical signals transmitted within fiber optic communication systems. Operating at the 1550nm wavelength, our EYDFA boasts low noise and high output power, catering to the exacting demands of CATV and FTTx applications.


With customizable port configurations and integrated WDM capabilities, C-Data delivers a bespoke, adaptable, and cost-effective solution, ensuring consistent gains for your network infrastructure.


  • High Output Power
    High Output Power
  • Tailored Solutions
    Tailored Solutions
  • Cost-Effectiveness
    Cost-Effectiveness

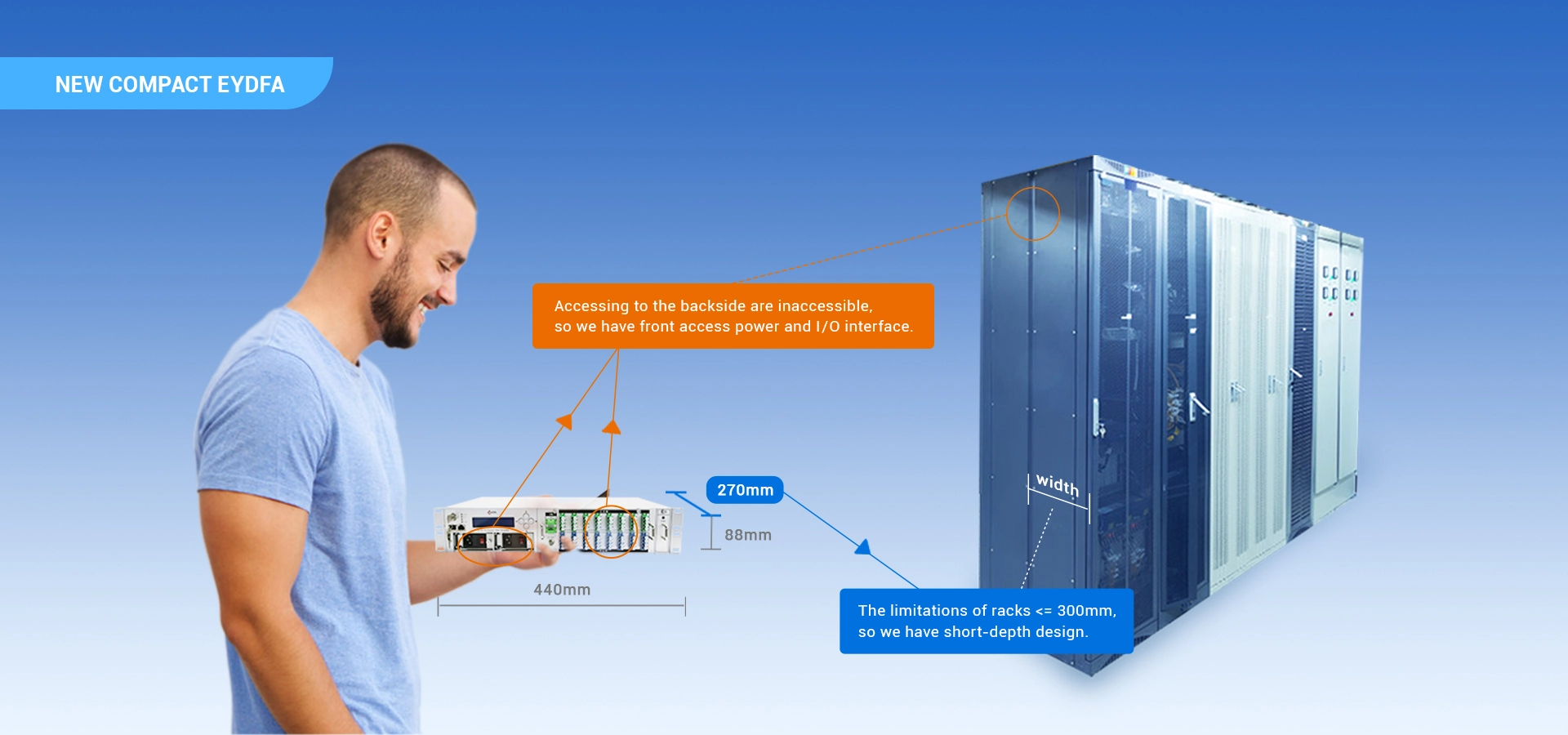

Compact Design for Flexible Deployment
Compact Design for Flexible Deployment

Facilitates rapid deployment and hassle-free replacement.


High Output Power
High Output Power

Contributes to wide coverage and supports multiple optical nodes, facilitating network upgrade and expansion effortlessly.


Unparalleled Performance and Reliability
Unparalleled Performance and Reliability

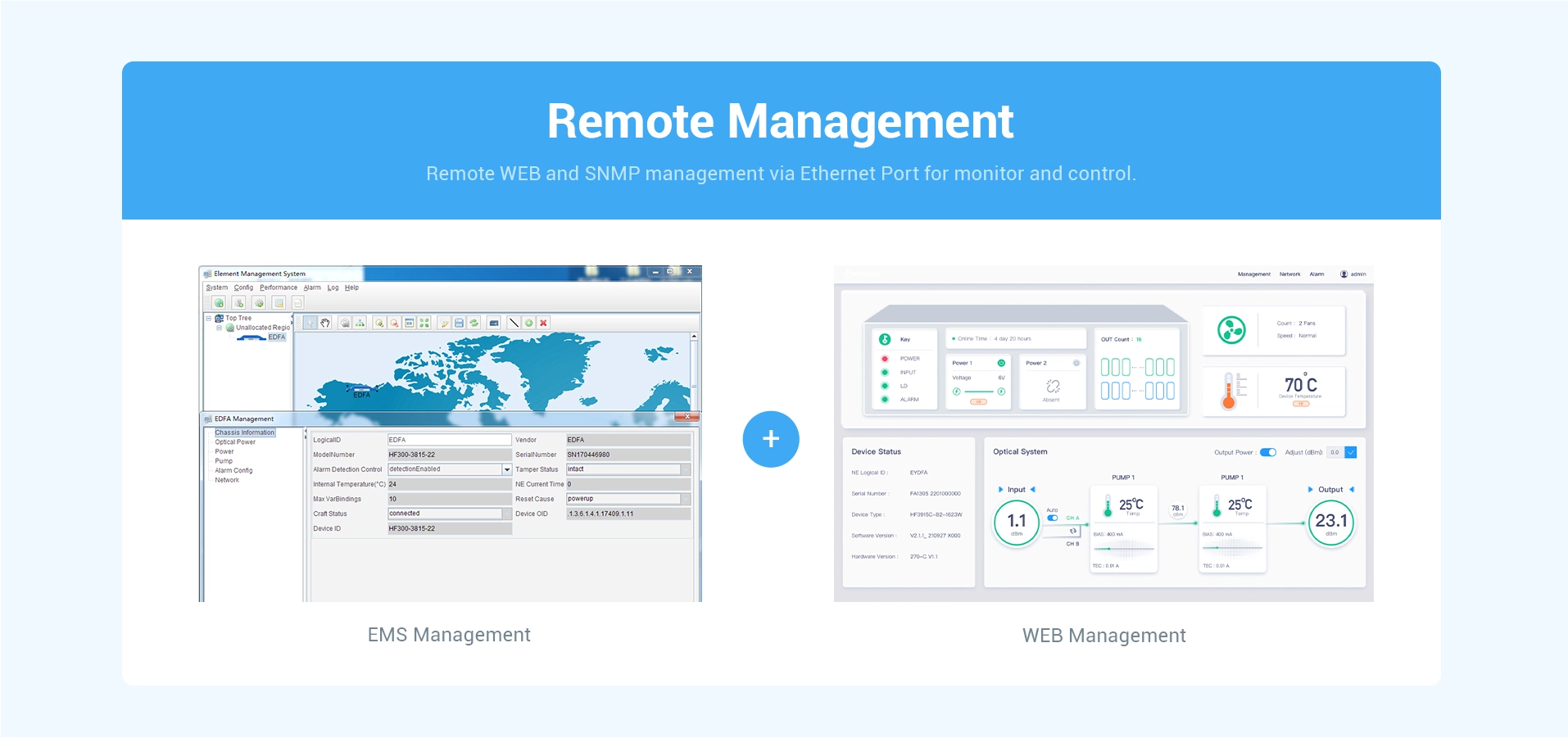

Effortless Management
Effortless Management
Application Scenarios
Application Scenarios

SPECIFICATIONS

Model2U 1550nm EYDFA HF3915C-B2
Optical SpecificationWorking wavelength
1540nm – 1563nm
Output optical power
28～37 dBm
Output optical power stability
-0.5～+0.5 dB
Noise figure
≤5.5 dB
Power Supply SpecificationPower supply
220V AC, 48V DC
Power consumption
≤80 W
Environment SpecificationOperation temperature
-5～+60 ℃
Storage temperature
-20～+60 ℃


See More
Take Back

RELATED PRODUCTS


Items


EYDFA

1U 1550nm EDFA HF300-3815C


EYDFA

1U 1550nm EYDFA HF3915C-B1


EYDFA

2U 1550nm EYDFA HF3915C-B2

Specifications
1*Optical output + 1*Optical input + 1*RS232Optional 8/16*Optical output + Optional 1/2*Optical input + Optional 1310/1490/1550nm WDM + 1*RS232Optional 8/16/32*Optical output + Optional 1/2*Optical input + Optional 1310/1490/1550nm WDM + 1*RS232
Optical Input Power(dBm)
-3～10

Optical Output Power(dBm)
13～2328～3628～37
CATV Optical Input Power Range(dBm)

-5～+10-5～+10
Optical Output Power Adjustable Range(dB)

-6～0-6～0
CATV Wavelength(nm)
1530～15601540～15631540～1563
PON Wavelength(nm)Upstream
1260～13601260～1360
Downstream
1480～15001480～1500
Optical Output Power Stability(dB)
±0.2-0.5～+0.5-0.5～+0.5
Return Loss(dB)﹥45
≥45≥45
Optical ConnectorCATV Input
SC/APCSC/APC
PON Input
SC/PC（LC/PC optional）SC/PC（LC/PC optional）
COMMON Output
SC/APC（LC/APC optional）SC/APC（LC/APC optional）
Noise Figure (dB)< 5.0
≤5.5（0dBm optical input）≤5.5（0dBm optical input）
Network Management interface

RJ45 interface(support Web and SNMP)RJ45 interface(support Web and SNMP)
Power Consumption(W)
<40≤80≤80
Power SupplyAC：220V110～26585~264V(compatible with 110VAC)85~264V(compatible with 110VAC)
DC：48V
40~72V30~72V
Temperature Range(℃)Operating Temperature Range0～50-5～+60-5～+60
Storage Temperature Range-25～70-20～+60-20～+60
Storage Relative Humidity (%)

5~95(No condensation)5~95(No condensation)
Dimension (mm)

440*300*44mm440*270*88mm
Device Net Weight (Kg)

≤5.0≤6.0


ORDERING INFORMATION

NO.Product ModelSpecificationsAccessories
11U 1550nm EDFA HF300-3815C1*Optical output + 1*Optical input + 1*RS232
21U 1550nm EYDFA HF3915C-B1Optional 8/16*Optical output + Optional 1/2*Optical input + Optional 1310/1490/1550nm WDM + 1*RS232
32U 1550nm EYDFA HF3915C-B2Optional 8/16/32*Optical output + Optional 1/2*Optical input + Optional 1310/1490/1550nm WDM + 1*RS232
