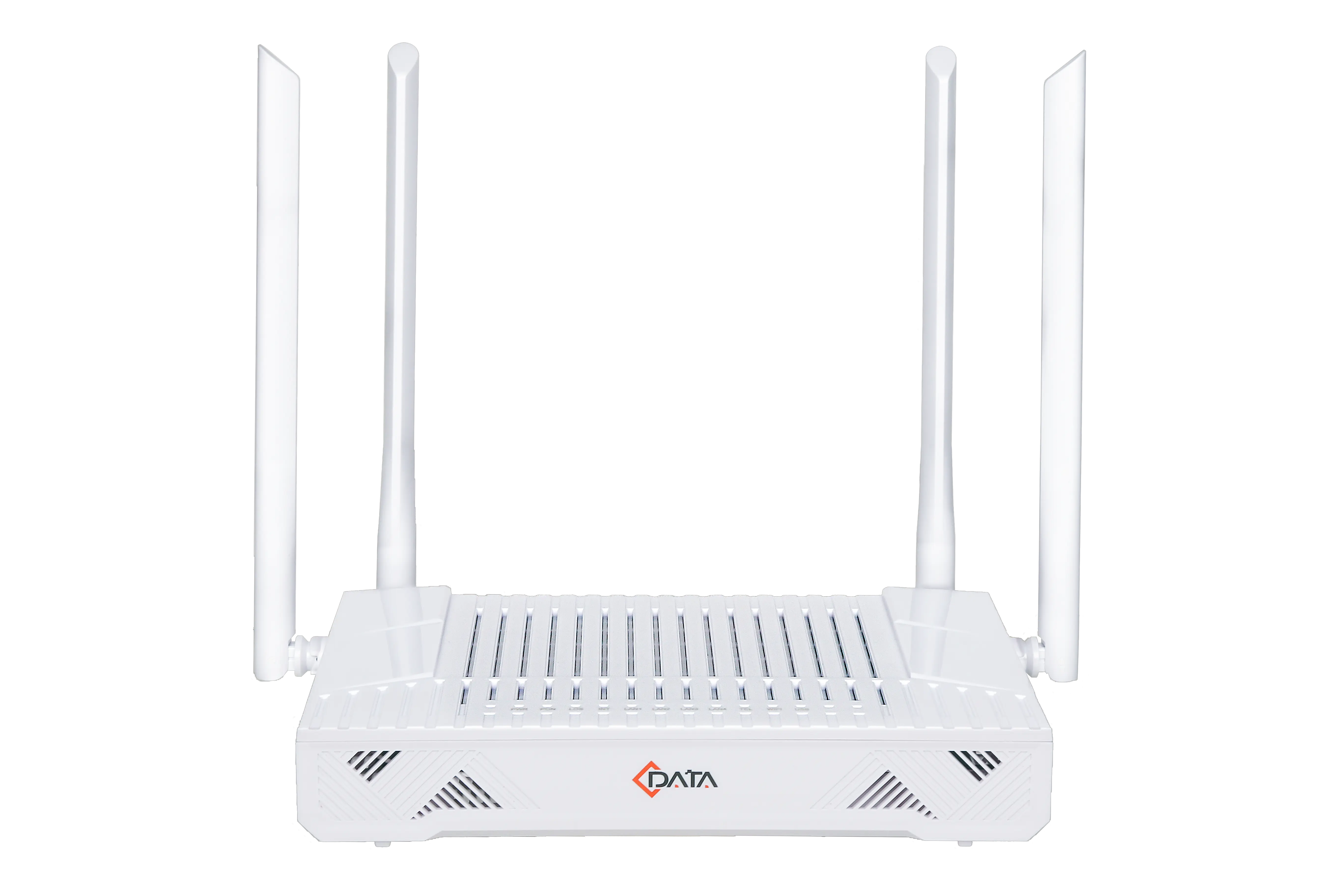

FD614GS3-R850
4GE+1POTS+2WIFI6(AX3000) XPON ONU

                   FD614GS3-R850 is WiFi6 xPON VoIP Gateway ONT,it support 802.11a/b/g/n/ac/ax standards over 2.4GHz and 5GHz,max speed can up to 3000Mpbs.

FD614GS3-R850 have a high reliability and provide quality of service guarantee, easy management, flexible expansion and networking. It fully meets the ITU-T and IEEE technical standards and have good compatibility with third party OLT.

Technical Specifications


Mechanics

Dimensions

210mm*135mm*45mm

Weight

About 300g




Hardware

User Port (LAN)

RJ-45 connector

4* 10/100/1000Mbps adaptive Ethernet port

Full/half duplex

Auto MDI/MDI-X

Indicators

PWR / PON / LOS / LAN1-4 / INT / TEL / WIFI

PON Port

PON Mode

EPON:1000BASE-PX20+ symmetric

GPON:FSAN G.984.2 standard,Class B+

PON Rate

EPON:1.25Gbps downstream/upstream

GPON:2.488Gbps/1.244Gbps downstream/upstream

Wavelength

Transmit: 1310nm

Receiver: 1490nm

Receiving sensitivity

EPON:-27dBm   GPON:-28dBm

Saturated power

EPON:-3dBm    GPON:-8dBm

Transmitting power

EPON:0~4dBm   GPON:0.5~5dBm




WIFI


IEEE802.11b/g/n(2.4G)

IEEE802.11a/n/ac/ax(5G)

2.4G: 40Mhz bandwidth maximum rate 574Mbps

 5G:160Mhz bandwidth maximum rate 2402Mbps

Total wireless rate is 3000Mbps

2.4G EIRP:22dBm / 5 G EIRP:21dBm




User Port(POTS)

RJ-11 connector

1*accounts

SIP protocol

TDMF

G711U/G711A/G729/G722 encoding and decoding




Environment

Working temperature

0 to 40ºC

Operating humidity

10% ~ 90% (Non-condensing)



Power

External 12VDC/2A power supply adapter

Power consumption

<24W
