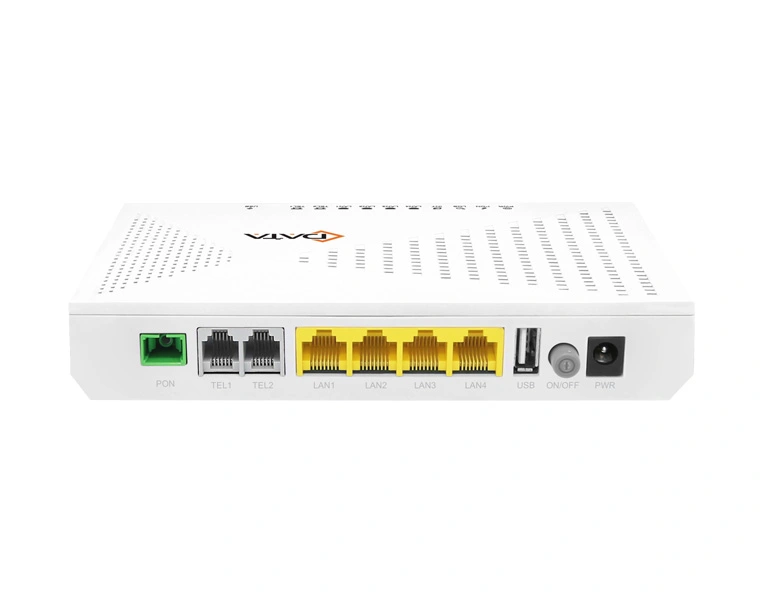

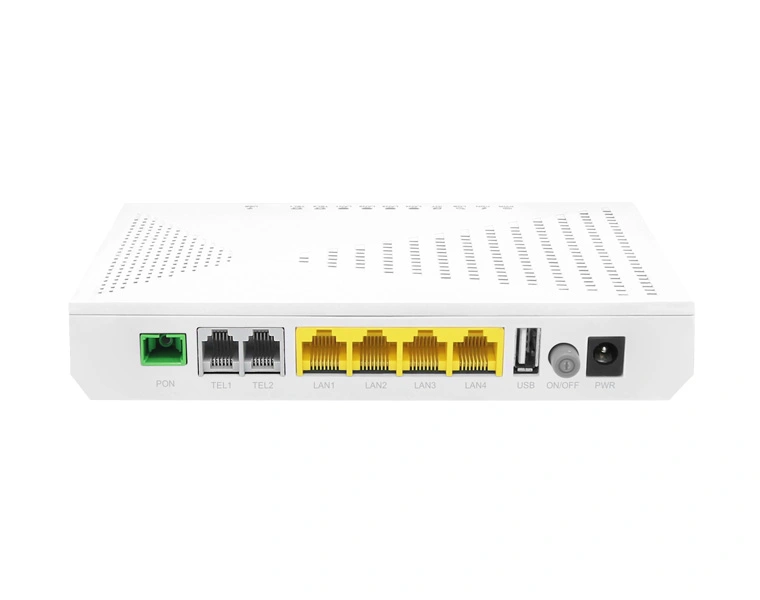

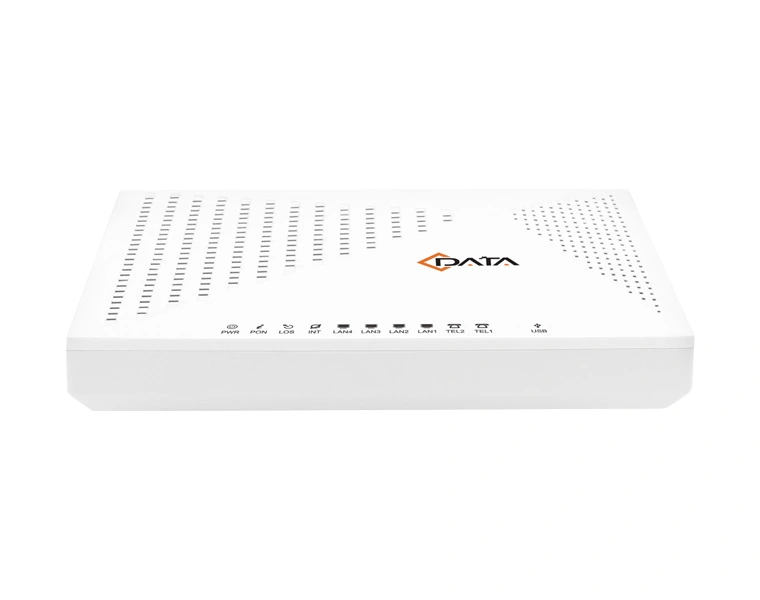

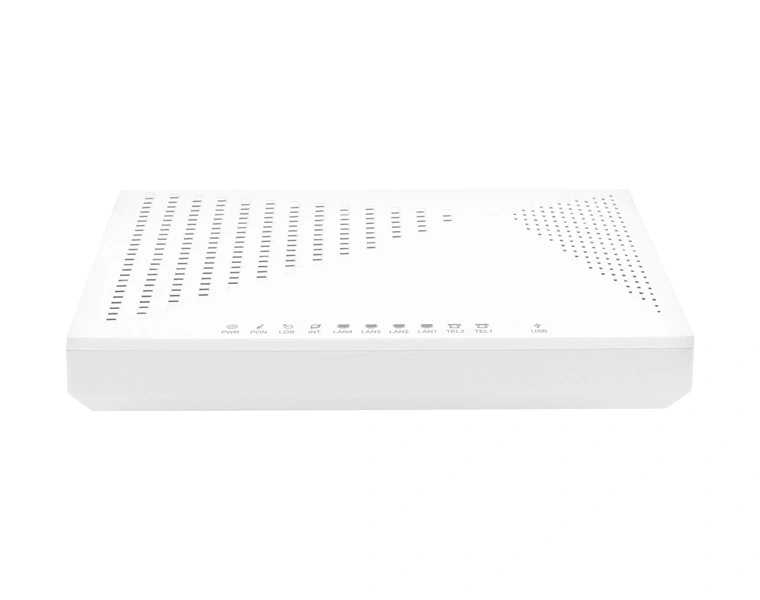

FD624G-R760 dual-mode ONU supports EPON and GPON two modes access. The ONU automatically switches into the corresponding PON mode by identifying the local OLT mode to complete GPON or EPON adaptive access.
FD624G-R760 features high-performance forwarding capabilities to ensure excellent experience with VoIP and Internet. It fully meets the ITU-T technical standards and have good compatibility with third party OLT. It provides a perfect terminal solution and future-oriented service supporting capabilities for FTTH deployment.
| Item | FD624G-R760 | |
| Specifications | 1*xPON + 4*GE RJ45 + 2*POTS | |
| GPON/EPON Port | Single mode single fiber | |
| GPON | FSAN G.984.2 standard，Class B+ | |
| EPON | 1000BASE-PX20+ symmetric | |
| GPON | 2.488Gbps/1.244Gbps downstream/upstream | |
| EPON | 1.25Gbps downstream/upstream | |
| Wavelength | Transmit: 1310nm Receiver: 1490nm | |
| Receiving sensitivity | GPON：-28dBm EPON：-27dBm | |
| Saturated power | GPON：-8dBm EPON：-3dBm | |
| Transmitting power | GPON：0.5～5dBm EPON:0～4dBm | |
| User Port(LAN) | RJ-45 connector | |
| 4*10/100/1000Mbps adaptive Ethernet port | ||
| Full/half duplex | ||
| Auto MDI/MDI-X | ||
| User Port(POTS) | RJ-11 connector | |
| 2*accounts | ||
| SIP protocol | ||
| TDMF | ||
| G711U/G711A/G729/G722 encoding and decoding | ||
| Indicators | PWR / PON / LOS / LAN / USB / INT / TEL / OPT | |
| Power | External 12VDC/1.5A power supply adapter | |
| Power consumption:<13W | ||
| Dimension and Weight | Item Dimension | 240mm(L) x 240mm(W) x 24mm (H) |
| Item weight | 0.317kg | |
| Environmental Specifications | Operating temperature | 0 to 40ºC |
| Storage temperature | -40 to 85ºC | |
| Operating humidity | 10% to 90%(Non-condensing) |
