FD714G-R760
4GE+CATV XPON ONU

Name: FD714G-R760
Brand: Shenzhen C-Data Technology Co., Ltd.

FD714G-R760 dual-mode ONU supports EPON and GPON two modes access. The ONU automatically switches into the corresponding PON mode by identifying the local OLT mode to complete GPON or EPON adaptive access.

FD714G-R760 is fiber to the home multiple service access XPON ONT. It's based on the mature, stable, high cost performance XPON technology, gigabit Ethernet switching, WDM and HFC technology. It has a higher bandwidth, higher reliability, easy management and good quality of service (QoS) guarantee. It fully meets the ITU-T and IEEE technical standards and have good compatibility with third party OLT.

It adopts single fiber WDM technology with downlink wavelength 1550nm and 1490nm, uplink wavelength 1310nm . It only needs one-core fiber to transmit data and CATV service.

 Download  Inquiry

Technical Specifications

Item		FD714G-R760

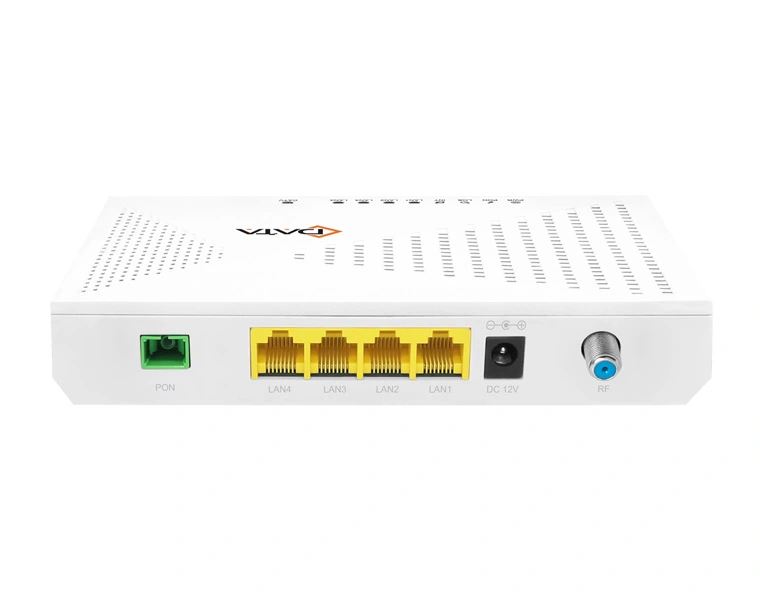

Specifications		1xPON + 4GE RJ45 + 1*RF CATV
GPON/EPON Port		Single mode single fiber
	GPON	FSAN G.984.2 standard, Class B+
	EPON	1000BASE-PX20+ symmetric
	GPON	2.488Gbps/1.244Gbps downstream/upstream
	EPON	1.25Gbps downstream/upstream
	Wavelength	Transmit: 1310nm Receiver: 1490nm
	Receiving sensitivity	GPON：-28dBm EPON：-27dBm
	Saturated power	GPON：-8dBm EPON：-3dBm
	Transmitting power	GPON：0.5～5dBm EPON:0～4dBm
User Port(LAN)		4*10/100/1000 Auto-negotiation RJ45 ports
		Full Duplex / Half-Duplex
		RJ45, Auto-MDI/MDI-X
		Transmission Distance 100 Meter
CATV（Input /Output port）	Wavelength	1550nm
	RF frequency	47MHz~1000MHz
	RF impedance	75Ω
	Input optical power	-18dBm～0dBm(withAGC)
	RF output level	78dBuV (@-12~-2dBm@85MHz) (with AGC)
	RF output return loss	>12dB(with AGC)

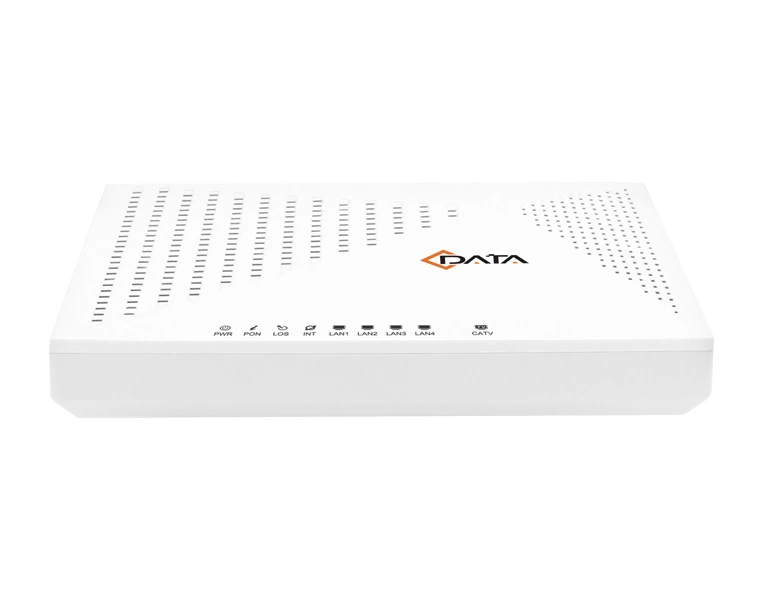

Indicators		PWR / PON / LOS / LAN1-4 /CATV
Power		External 12V/1A DC power supply adapter
Power		Power consumption:<7W
Dimension and Weight	Item Dimension	160mm(L)112mm(W)28.5mm(H)
Dimension and Weight	Item weight	about 258g
Environmental Specifications	Operating temperature	0 to 40ºC
Environmental Specifications	Operating humidity	10% to 90%(Non-condensing)
