Build a High-speed, Large-capacity, Long-distance, Multi-wave Trunk Network
Compact Design | 1+1 Hot Backup | Flexible Networking | Remote Management
Multiplexing multiple services onto one fiber, supporting simultaneous transmission of multiple signals, maximizing fiber utilization, saving fiber laying costs, and meeting CWDM/DWDM wavelength multiplexing transmission.

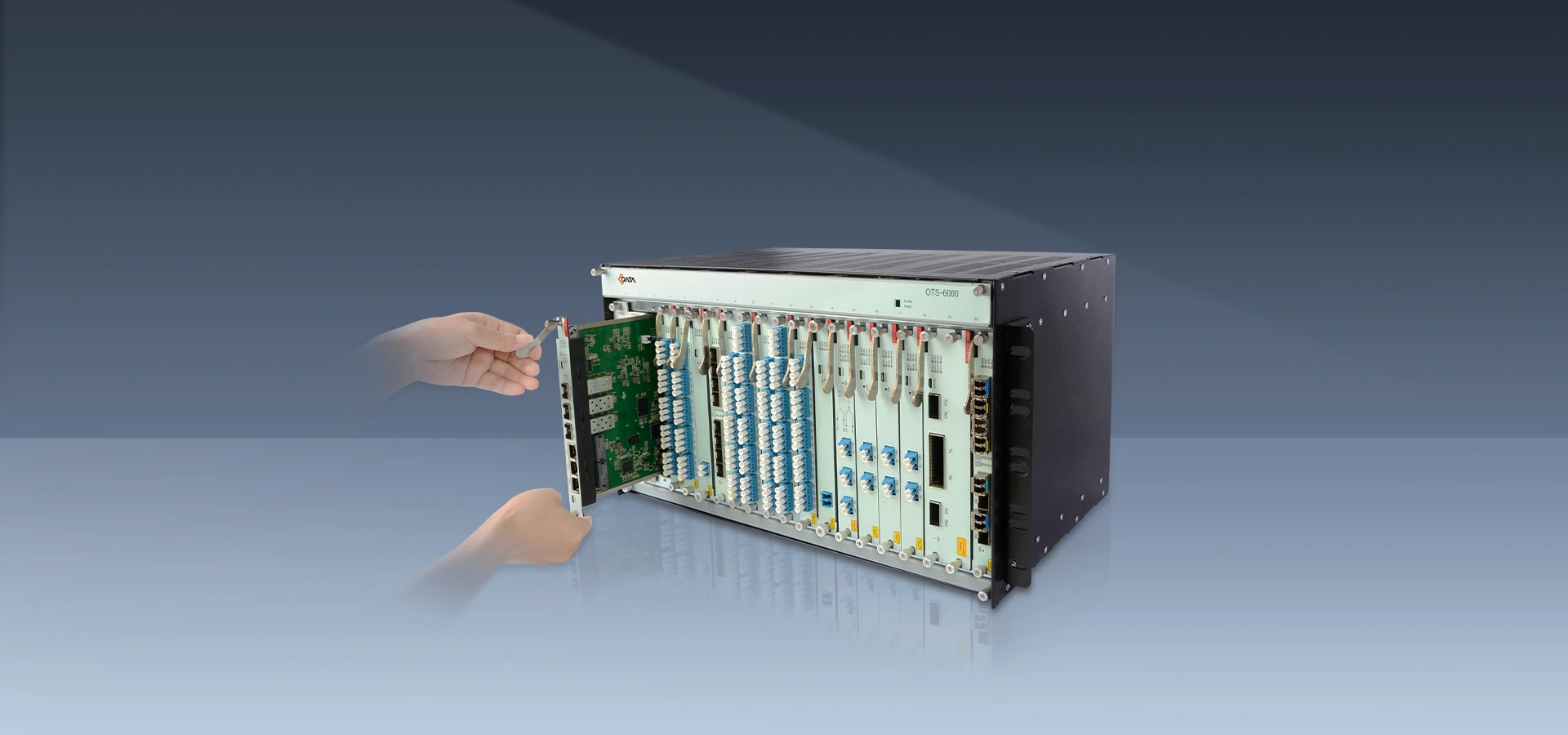

Through excellent heat dissipation design and power supply design, it is equipped with industrial chips, and is designed in accordance with the standard 1U/2U/6U compact slot to meet the deployment requirements of different computer rooms.
Different service boards support hot pluggable and can be used in the whole series of chassis, which greatly improves the reliability, rapid recovery and redundancy of the system.
Using Web, CLI and other management methods, it has functions such as real-time status, software update, threshold alarm, optical cable protection, configuration parameter query, etc., which greatly reduces equipment maintenance costs.
C-Data DWDM series products provide long-distance and large-capacity transmission network solutions for carrier operators, MSO/ISP, IDC service providers, and special network customers.
| Model | DWDM Series |
| Management rack | Standard 1U / 2U / 6U rack design |
| Slots | 4/8/20 slots |
| Wavelength range | DWDM: 1528nm~1568nm, CWDM: 1271~1611nm |
| Wavelength interval | 50GHz/100GHz fixed grid |
| Support Service types | SDH/SONET, Ethernet, SAN, OTN, Video, CPRI |
| Security and EMC | FCC, UL, CE, TUV, CSA |
| Power supply mode | 110V-220V AC, - 48V DC, 1 + 1 hot backup |
| Operating environment | Temperature: - 10 ℃ ~ 60 ℃, Humidity: 5 ~ 95% no condensation |
| Storage environment | Temperature: - 40 ℃ ~ 80 ℃ |
| Item |
|
|
|
| Specifications | 3*FE RJ45 + 3*FE SFP + 4*Slots with 8*Channels + 2*Micro USB | 3*FE RJ45 + 3*FE SFP + 8*Slots with 16*Channels + 2*Micro USB | 3*FE RJ45 + 3*FE SFP + 20*Slots with 48/96*Channels + 2*Micro USB |
| Dimension | 1U 45 * 440 * 320 mm | 2U 89 * 440 * 380 mm | 6U 260 * 440 * 320mm |
| Slots | 4 slots | 8 slots | 20 slots |
| Maximum Power | ＜60W | ＜120W | ＜550W |
| Number of channels | 8 | 16 | 48/96 |
| Wavelength range | DWDM: 1528nm~1568nm CWDM: 1271~1611nm | DWDM: 1528nm~1568nm CWDM: 1271~1611nm | DWDM: 1528nm~1568nm CWDM: 1271~1611nm |
| Wavelength interval | 50GHz/100GHz fixed grid | 50GHz/100GHz fixed grid | 50GHz/100GHz fixed grid |
| Support Service types | SDH/SONET, Ethernet, SAN, OTN, Video, CPRI | SDH/SONET, Ethernet, SAN, OTN, Video, CPRI | SDH/SONET, Ethernet, SAN, OTN, Video, CPRI |
| Security and EMC | FCC, UL, CE, TUV, CSA | FCC, UL, CE, TUV, CSA | FCC, UL, CE, TUV, CSA |
| Power supply mode | 110V-220V AC, - 48V DC, 1 + 1 hot backup | 110V-220V AC, - 48V DC, 1 + 1 hot backup | 110V-220V AC, - 48V DC, 1 + 1 hot backup |
| Operating environment | Temperature: - 10 ℃ ~ 60 ℃, Humidity: 5 ~ 95% no condensation | Temperature: - 10 ℃ ~ 60 ℃, Humidity: 5 ~ 95% no condensation | Temperature: - 10 ℃ ~ 60 ℃, Humidity: 5 ~ 95% no condensation |
| Storage environment | Temperature: - 40 ℃ ~ 80 ℃ | Temperature: - 40 ℃ ~ 80 ℃ | Temperature: - 40 ℃ ~ 80 ℃ |
| NO. | Product Model | Specifications | Accessories |

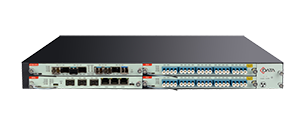

| 1 | CDTrans-1000 | 3*FE RJ45 + 3*FE SFP + 4*Slots with 8*Channels + 2*Micro USB | |

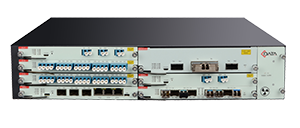

| 2 | CDTrans-2000 | 3*FE RJ45 + 3*FE SFP + 8*Slots with 16*Channels + 2*Micro USB | |

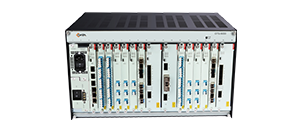

| 3 | CDTrans-6000 | 3*FE RJ45 + 3*FE SFP + 20*Slots with 48/96*Channels + 2*Micro USB |
