Wavelength division transmission system provides an excellent optical transmission platform for metropolitan. It integrates WDM technology, applies advanced optical transmission and highly integrated technology. With the functions of high-speed, large-capacity and fully transparent, which can realize the upgrade of network capacity and provide a comprehensive, flexible and mature protection scheme.
Our WDM is divided into 1U/2U/6U, which includes NMU, Mux/Demux, OTU/MOTU, EDFA, OLP, DCM, etc. The service cards are hot pluggable and can be used in all series of machine frames. It has the characteristics of compact structure, flexible configuration, low power consumption, and the humanized network management interface of B/S architecture is supported. The maintenance is simple.

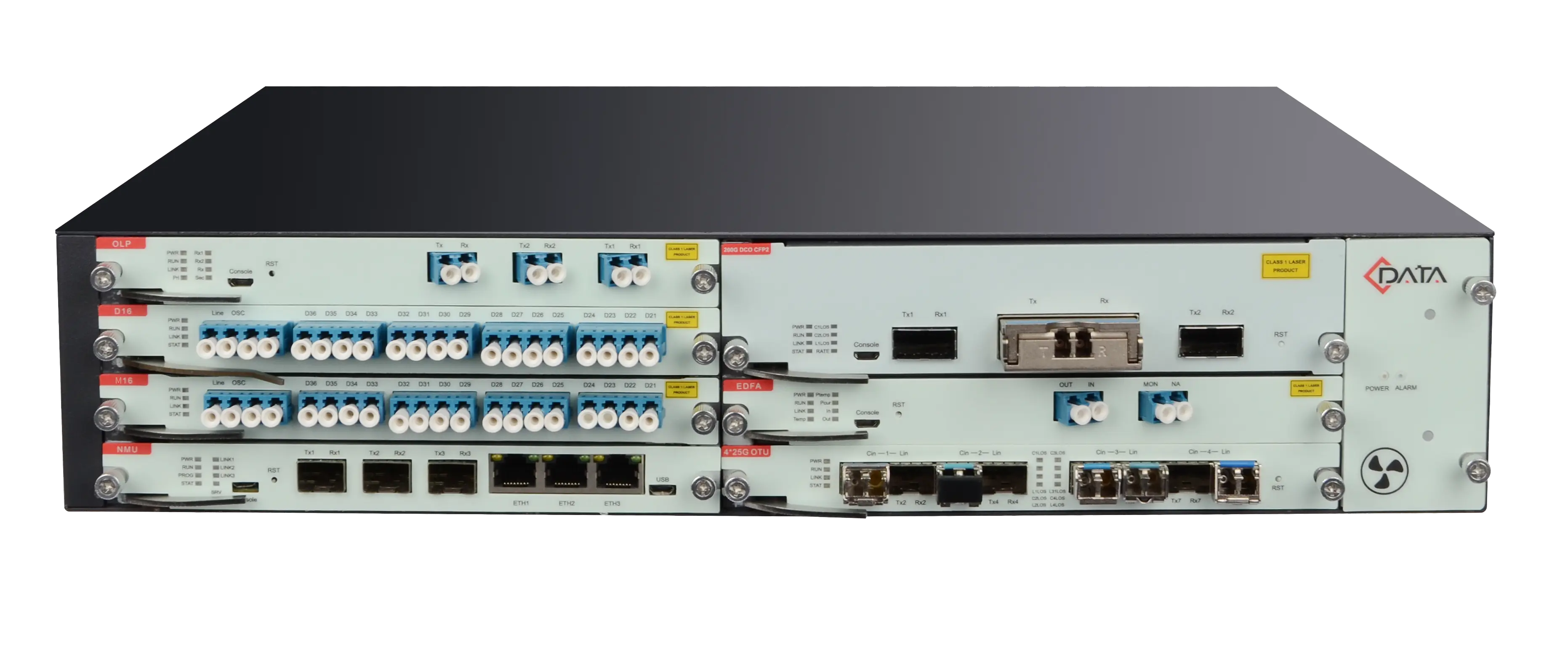

| Item | CDTrans-2000 |
| Specifications | 3*FE RJ45 + 3*FE SFP + 8*Slots with 16*Channels + 2*Micro USB |
| Dimension | 2U 89 * 440 * 380 mm |
| Slots | 8 slots |
| Maximum Power | ＜120W |
| Number of channels | 16 |
| Wavelength range | DWDM: 1528nm~1568nm CWDM: 1271~1611nm |
| Wavelength interval | 50GHz/100GHz fixed grid |
| Support Service types | SDH/SONET, Ethernet, SAN, OTN, Video, CPRI |
| Security and EMC | FCC, UL, CE, TUV, CSA |
| Power supply mode | 110V-220V AC, - 48V DC, 1 + 1 hot backup |
| Operating environment | Temperature: - 10 ℃ ~ 60 ℃, Humidity: 5 ~ 95% no condensation |
| Storage environment | Temperature: - 40 ℃ ~ 80 ℃ |
