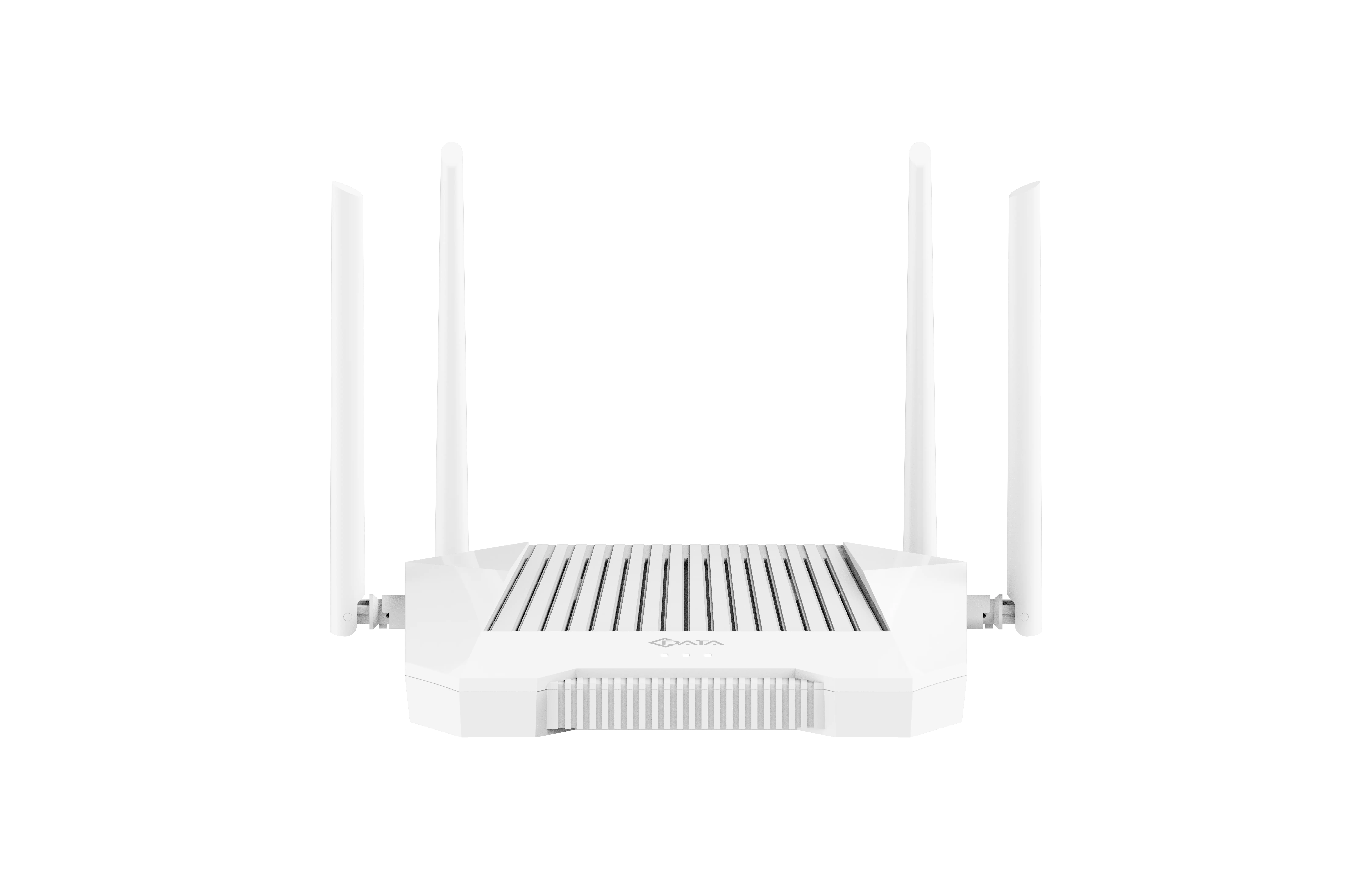

CR6150
AX1500 Dual Band Gigabit Wi-Fi 6 Mesh Router

CR6150 Wi-Fi 6 Mesh Router is  a new generation SOHO high-performance wifi6 router. It adopts an Realtek chip, has 2.4g 2X2 and 5G 2X2 omnidirectional multi-band high-gain antennas.

The CR6150 is a gigabit Wi-Fi6 router designed for home users looking for a performance experience. Mesh networking is supported, which can easily solve the problem of Wi-Fi coverage of oversized houses. concurrent speed up to 1500Mbps (5GHz: 1200Mbps, 2.4GHz: 300Mbps), at the same time equipped with 7dbi high-gain antenna, Wi-Fi through the wall stronger, longer transmission distance. OFDMA+MU-MIMO technology is adopted to meet the needs of more devices to access the Internet at the same time, which significantly improves the transmission efficiency and greatly reduces the delay.


Hardware Features


NameAX1500 Wireless Router
ModelCR6150
ChipRTL8197H+RTL8832BR
Memory /Storage1Gb/1Gb
Wi-Fi Antennas2×2.4GHz 2×5GHz External 7dBi Gain
ProtocolIEEE 802.11a/b/g/n/ac/ax
Wi-Fi Speed2.4G Wi-Fi (Speed 300Mbps) 5G Wi-Fi (Speed1200Mbps)
LEDPower/INTGreen: Successfully connected to the network
Blinking:Power is normal but the network connection fails
Off: Power off
Wi-FiGreen: Wi-Fi up
Off: Wi-Fi down
MeshGreen:Successful Mesh networking
Blinking:Building a Mesh network
Off:The Mesh network is not formed




  InterfaceWAN/LAN4 RJ45 port ,10/100/1000Mbps
Mesh/WPSButton
ResetButton

USB 2.0Optional
  Transmit Power 2.4G23dBm
5G21dBm




  Power SupplyDC12V/1A Adapter
  Power Consumption<12W
  Dimension
  Operating Temperature-10~50℃
  Storage Temperature-30~70℃



Software Features

  IP ProtocolsIPv4/IPv6
Wi-Fi6  TechLong OFDM Symbol
OFDMA
DL/UL MU-MIMO
TWT
BSS Coloring
WPA3
  WAN ModeDynamic IP Static IP PPPoE
SecurityFirewall Access Control
Port Mapping
DMZ
ALG
Terminal Management
Parental Control
System ServiceNetwork Time
Software Upgrade
Backup and Restore
System Logs



Guest Wi-Fi2.4G Guest SSID
5G Guest SSID
Equipment Mode Router
Bridge
Relay
Management WEB




Network SettingsLocal Area Network (LAN) Settings
Wide Area Network (WAN) Port Settings
VPN
IPTV
Multicast
UPnP (Universal Plug and Play)
DDNS



 MeshEasyMesh
