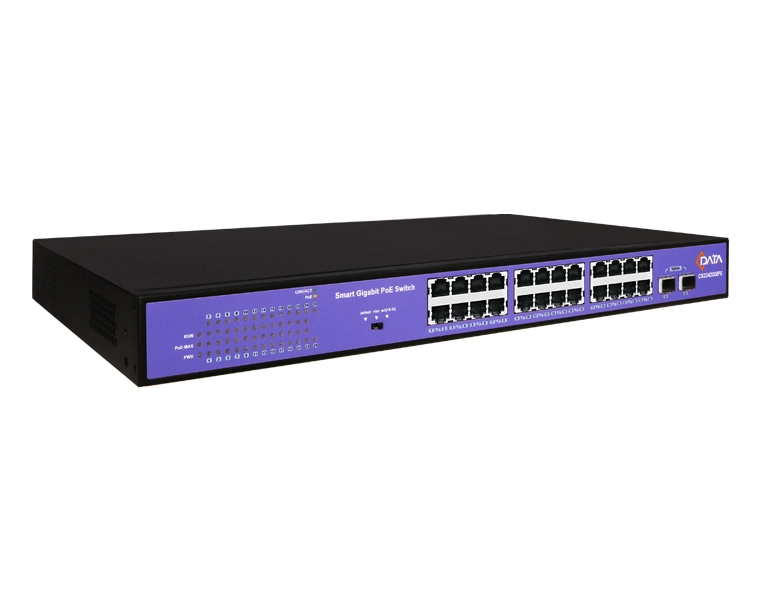

CS2242GSPE

Name: CS2242GSPE
Brand: Shenzhen C-Data Technology Co., Ltd.

CS2162GSP&CS2242GSP&CS2242GSPE is a full Gigabit unmanaged PoE switch. Ports 1 to 16/24 support the PoE+ function and comply with the IEEE 802.3af/at standard. The PoE power of a single port can reach 30W. As a PoE power supply device, it can automatically detect and identify powered devices that meet standards and power them through network cables. Plug and play, simple and convenient to use, suitable for hotels, campuses, factory dormitories and small and medium-sized enterprises to build cost-effective PoE networks.

 Download  Inquiry

Functional Feature

16/24*1000M POE RJ45 Auto MDI/MDIX ports
2*1000M SFP ports
All ports have wire-speed forwarding capabilities
Support VLAN, Extend mode(DIP)
Supports desktop, wall-mounted, Rack installation methods
Plug and play, no management required
Comply to IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3x
Compatible with IEEE802.3AF/AT
Low heat design, safe and reliable, high stability

Technical Specifications

Mechanics
Installation	Desktop, Wall, Rack
Dimensions	CS2162GSP/CS2242GSP: 440mm(L)193.2mm(W)44mm(H) CS224GSPE:440mm(L)263.7mm(W)44mm(H)
Weight	CS2242GSPE: 3.7kg, CS2162GSP: 2.7kg, CS2242GSP: 2.9kg

Hardware
Downlink port	CS2162GSP: 1610/ 100/ 1000M BASE-T RJ45 CS2242GSP&CS2242GSPE: 2410/100/1000M BASE-T RJ45
Uplink port	2*1000M SFP
Switching capability	CS2162GSP: 36Gbps CS2242GSP&CS2242GSPE: 52Gbps
Switching method	Storage forwarding
LED light	Each port has 1 Link/Ack indicator Each port has 1 PoE indicator Each device has 1 Power indicator Each device has 1 System indicator Each device has 1 POE MAX indicator light
MAC table size	8K

Power supply
Power type	built-in power supply
Working Voltage	AC 100-240V
POE output power	CS2162GSP: 240W CS2242GSP: 240W CS2242GSPE: 396W
Power Consumption	CS2162GSP: ≤275W CS2242GSP: ≤285W CS2242GSPE: ≤450W

Environment
Working temperature	0 - to 40℃
Storage temperature	-40 - 70℃
Ambient humidity	10% ~90%RH
Storage humidity	5% ~90%RH
Level of protection	Port: 6 KV Power: 4 KV
