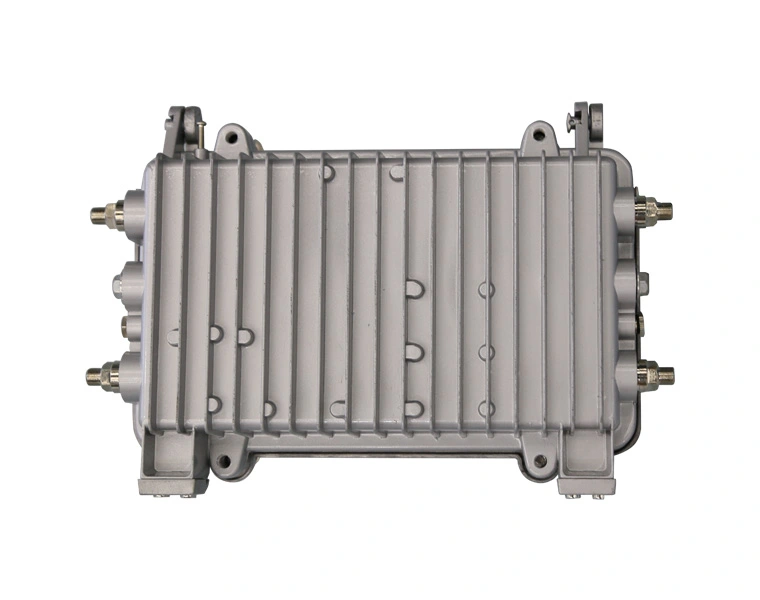

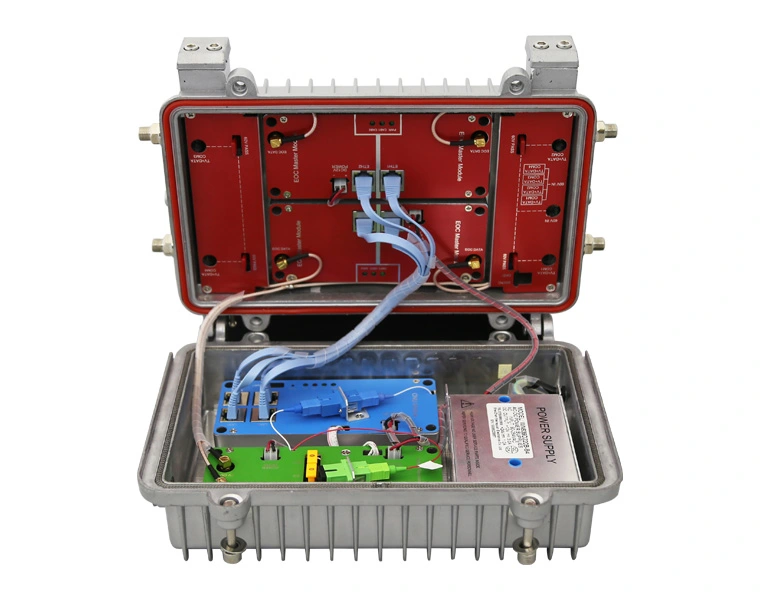

The C-Data All-In-One product is designed to provide Internet service to subscriber's home through the existing coaxial access network. With XPON, EOC and HFC technology , the All-In-One product meets the CATV broadcasting, VOD and Internet service requirement of cable operators for FTTB/FTTC. It build with XPON ONU, EOC master and Optical Receiver module in one housing.
The Optical Receiver module received the optical signal from the Optical Transmitter of HFC network, and the signal processed by the PD, Amplifier, EQ and AGC to a stable RF output. The output level will be up to 104dBuv( 4*RF output). Ethernet data is delivered to ONU through the XPON network form the OLT.
The EOC Master module meets Home-plug AV standards, is designed based on Qualcomm AR7410 chip-set with high anti-jamming capability OFDM technology. It will modulate the Ethernet data into EOC RF signal in the 7.5-65MHz .The EOC signal and CATV signal (87~860MHz) can run on one coaxial cable without interference. The EOC Master can provide high speed data service at 600Mbps PHY Layer speed, the MAC Layer throughput is up to 320Mpbs.
Item | Parameters | Specification |
Main Functional Module Configuration | ONU | 1 * XPON ONU |
EOC Master | 2*EOC Master | |
CATV | 1* CATV Optical Receiver | |
External Interface | Fiber Port | 5/8” type, 2 port, for Fiber Optic Pigtail input |
COM Port | F-Type female, 4 output port for mixed EOC and CATV signal | |
Power Input Port | F-Type female, line power(40-90VAC) input version Power cord with China plug, Mains Powered (90-264VAC) version | |
Uplink | Broadcast CATV | 1*CATV optical, SC/UPC |
Ethernet Data | 1*EPON/GPON adaptive optical, SC/UPC | |
Specification of XPON ONU Parts | ||
EPON/GPON | Standard compliance | EPON: IEEE802.3ah GPON: ITU-T G.984.X |
Optical Interface | EPON: 1 * EPON 1000BASE-PX20+ GPON: 1 * GPON CLASS B+ | |
Transmission Rate | EPON: 1.25Gbps downstream/upstream GPON: 2.488Gbps/1.244Gbps downstream/upstream | |
Transmission Distance | EPON: 20Km@1:64 GPON: 20Km@1:128 | |
Optical Fiber Type | Single Mode, Single Fiber | |
Wavelength | Upstream 1310nm, Downstream 1490nm | |
Optical Power Tx | EPON : 0dBm to +4dBm(1000BASE-PX20+) GPON : +0.5dBm to +5dBm(Class B+) | |
Receiving Sensitivity | EPON: -27dBm(1000BASE-PX20+) GPON: -28 dBm(Class B+) | |
Indicator | Indicator Description | PWR: Power up or down PON: ONU registered LOS: Optical Link Status SYS: system work indicator |
Network Management | Management Mode | Support IEEE802.3ah OAM (EPON) Support ITU-T G.984.X OMCI (GPON) Support WEB management Suppoort Telnet Management |
Function | Status monitor, Configuration management, Alarm management, Log management | |
Specification of OR | ||
Optical Specifications | Wavelength | 1550±10 nm |
Optical Power Input Range | -10 ~ +2 dBm | |
Recommend optical Power Input Range | -6 ~ 0dBm | |
Optical Input Return Loss | >45 dB | |
RF Specifications | Bandwidth | 45~860 MHz |
Flatness | ≤±1.5 dB | |
Nominal RF Output Level | 104dBuV | |
Impedance | 75 Ohm | |
Return Loss | ≥14 dB | |
CNR | ≥51 dB | |
CSO | ≥60 dBc | |
CTB | ≥60 dBc | |
Note: CNR, CSO, CTB parameter testing environment is in1550nm directly modulation transmitter, optical input -1dBm, OMI=3.2%, 59CH PAL-D signal load. | ||
Optical and temperature AGC | Stability of RF Level under optical AGC | ≤±1 dB |
AGC Scope | -6 ~ 0dBm | |
LED Indicator | Indicator Description | TV1: Status of Output 1 of optical receiver module TV2: Status of Output 2 of optical receiver module OPT-M: Optical power is nominal OPT-L: Optical power is abnormal PWR: Power Supply Status |
Specification of EOC Master | ||
Interface | Inband Management Port 1 * 10/100/1000M auto-negotiation, RJ45 | |
LED Indicator | LED Indicator | PWR: Power Supply Status CAB1: CABLE Link Status indicator1 CAB2: CABLE Link Status indicator2 |
Performance Parameters | RF Parameters | Frequency Band: 7.5-65MHz RF Output Level: 115±5dBuv @4 RF output port Receive sensitivity: 45dBuv |
Transmission | PHY Layer: 600Mbps Throughput on MAC Layer: 320Mbps | |
Modulation Mode | OFDM2690 carriers, 4096/1024/256/64/16/8 QAM, QPSK, BPSK, ROBO | |
Working Mode | TDMA/CSMA | |
Encryption Mode | AES-128 | |
Standard | EOC Standard | IEEE P1901(Draft), HomePlug AV |
Ethernet Standard | IEEE 802.3, IEEE 802.3x, IEEE 802.3u IEEE802.1P, IEEE802.1Q | |
Software | Network Management | WEB, CLI, SNMP |
Software Features | VLAN, QOS, Bandwidth Control, Broadcast storm limitation | |
Physical Features | ||
Physical Features | Power supply | Line Power(90-264VAC) Cable power(60VAC) optional |
Power Consumption | Consumption: <80 W | |
Net weight | 3.7kg | |
Environment A ttribute | Working Temperature: -20 ~ 65℃ Storage Temperature: -40 ~ 85℃ Working humidity: 10% ~ 90%non-condensing Storage humidity: 10% ~ 90% non-condensing |
