HF200-3615
1550nm Optical Transmitter

Name: HF200-3615
Brand: Shenzhen C-Data Technology Co., Ltd.

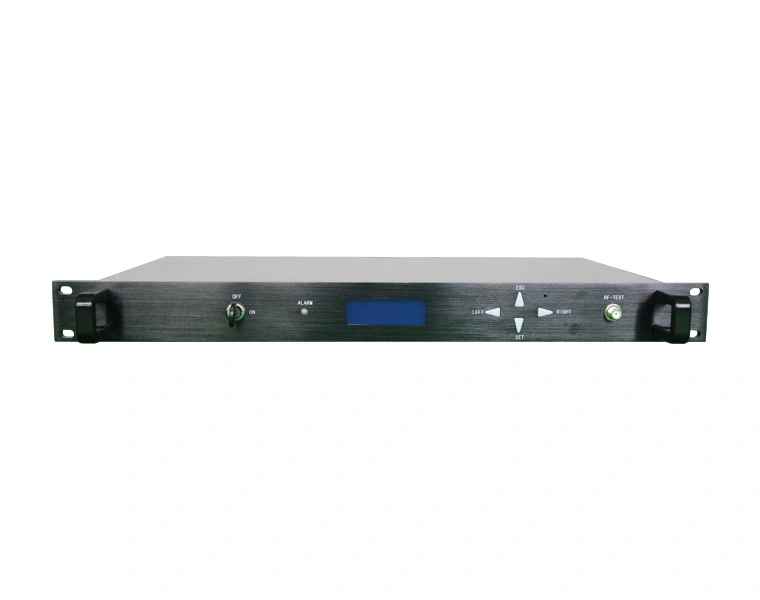

C-DATA 1550nm Optical Transmitter is powered by the HF200-3615 series and is designed for high-speed optical communication networks. It features a switchable AGC function and MGC function, providing users with flexible options. With two options for the national standard webmaster transponder, this transmitter supports remote monitoring and control management for network operations. The output optical power can be adjusted manually within a range of 0 to 3dB. The LCD real-time display allows users to monitor working parameters and supports sound-light alarm for convenient on-site usage and maintenance. Trust C-DATA for reliable and efficient optical transmission solutions.

 Download  Inquiry

Technical Specifications

Item		HF200-3615
Specifications		1LAN + 1RS232 + 2Optical output + 1RF input
Optical Parameter	Wavelength（nm）	1528～1563nm（ITU-T）
	Optical output power	10mw
	Connector type	FC/APC or SC/APC
	Optical Reflection Loss	>45.0dB
	Laser Type
	Light modulationmode
RF parameters	RF Band	47～860 /1000MHz
RF parameters	RF Input level	75±3dBuV
	Level Difference of Narrow-Band port andMain Port	8～20dB (Optional)
	Nominal RF Input Impedance	75Ω
	RF Input Reflection Los	≥16dB（47～550MHz） ≥14dB（550～1000MHz）
	Flatness	≤±0.75dB
	Input Level Detection	20dB±1dB
Link Parameter	C/N	≥50.0 dB
	CSO	≥48.0 dB
	CTB	≥65.0 dB
	MER	≥36 dB
	CNR
	SBS Suppression
General Parameter	Power Supply	AC：100～240V
	Power consumption	30W
	Working Temperature	-5℃～45℃
	Working relativeTemp
	Storage Temperature	-25℃～+65℃
	Size (Length x Width x Height)	483mm×320mm×44mm
	Reference Net Weight	4Kg
	Power loss
