8*GE ports, 4*SFP ports, which can satify user's various networking needs. Its body is small and smart.
The users can easily identify its running states through the LED lights on the front surface.
| Model | CI3084GS-POE |
| Downlink ports | 8*10/100/1000BASE-T RJ45 ports |
| Uplink ports | 4*SFP |
| Switching capability | 24Gbps |
| Packets switching capability | 17.85Mpps |
| MAC table size | 8K |
| MTBF | >300,000hours |
| Dimention | 175*135*44mm |
| Power consumption | <10W |
| Certification | CE FCC ROHS compliance |
| Item |
|
|
|
| |
| Specifications | 4*RJ45 PoE + 2*1000M SFP | 8*RJ45 PoE + 4*1000M SFP | 8*RJ45 PoE + 8*1000M SFP | 16*RJ45 PoE + 4*1000M SFP | |
| Downlink ports | 4*10/100/1000BASE-T RJ45 ports | 8*10/100/1000BASE-T RJ45 ports | 8*10/100/1000BASE-T RJ45 ports | 16*10/100/1000BASE-T RJ45 ports | |
| Uplink ports | 2*SFP | 4*SFP | 8*SFP | 4*SFP | |
| Console port | 1 pcs | 1 pcs | 1 pcs | 1 pcs | |
| Switching capability | 45.6Gbps | 76Gbps | 76Gbps | 106Gbps | |
| Packets switching capability | 8.92Mpps | 17.76Mpps | 23.8Mpps | 29.76Mpps | |
| Switching method | Storage forwarding | Storage forwarding | Storage forwarding | Storage forwarding | |
| LED light | Power,system | Power,system | Power,system | Power,system | |
| Enviroment parameters | Work temperature | -40º to 80℃ | -40º to 80℃ | -40 to 80℃ | -40 to 80℃ |
| Storage temperature | -40 to 85℃ | -40 to 85℃ | -40 to 85℃ | -40 to 85℃ | |
| Work humidity | 5% to 95% | 5% to 95% | 5% to 95% | 5% to 95% | |
| Storage humidity | 5% to 95% | 5% to 95% | 5% to 95% | 5% to 95% | |

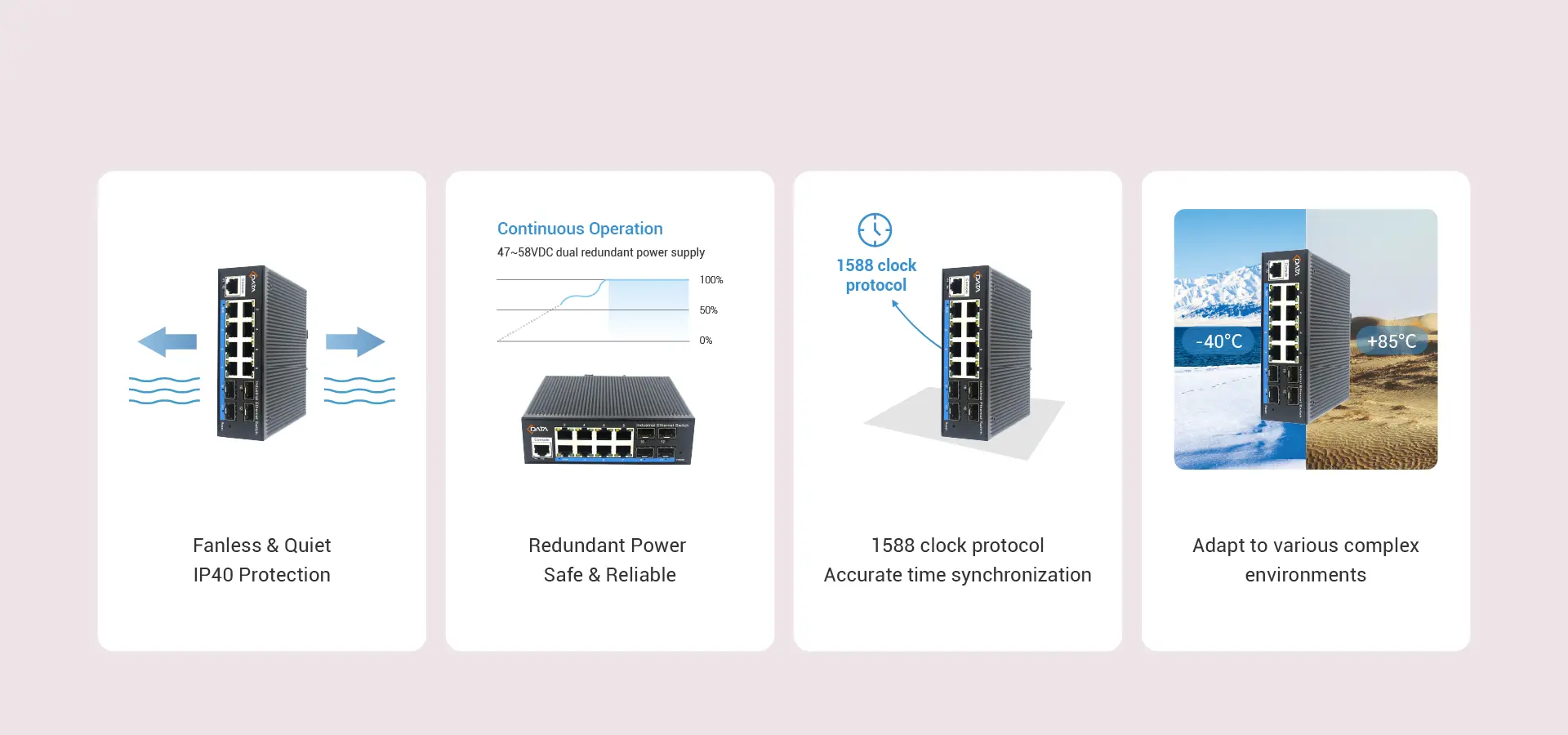

| IP class | IP40 aluminum housing | IP40 aluminum housing | IP40 aluminum housing | IP40 aluminum housing | |
| MAC table size | 8K | 8K | 8K | 8K | |
| FAN | Fanless,natural cold | Fanless,natural cold | Fanless,natural cold | Fanless,natural cold | |
| MTBF | >300,000hours | >300,000hours | >300,000hours | >300,000hours | |
| Power | 48 to 57V DC redundant power | 48 to 57V DC redundant power | 48 to 57V DC redundant power | 48 to 57V DC redundant power | |
| Power consumption | <10W | <10W | <10W | <10W | |
| Dimention（W*D*Hmm） | 143.7*103*44.2mm | 143*125*48mm | 176*137*46mm | 166*137*68.5mm | |
| Weight | Product Weight | 0.65KG | 0.88KG | ||
| Packing Weight | 0.75KG | 0.98KG | |||
| Certification | CE FCC ROHS compliance | CE FCC ROHS compliance | CE FCC ROHS compliance | CE FCC ROHS compliance | |
| Installation | DIN rail | DIN rail | DIN rail | DIN rail | |
| EMC | IEC61000-4-2 (ESD) | ±8kV (contact), ±12kV (air) | ±8kV (contact), ±12kV (air) | ±8kV (contact), ±12kV (air) | ±8kV (contact), ±12kV (air) |
| IEC61000-4-3 (RS) | 10V/m (80~1000MHz) | 10V/m (80~1000MHz) | 10V/m (80~1000MHz) | 10V/m (80~1000MHz) | |
| IEC61000-4-4 (EFT) | Power Port: ±4kV; Data Port: ±2kV | Power Port: ±4kV; Data Port: ±2kV | Power Port: ±4kV; Data Port: ±2kV | Power Port: ±4kV; Data Port: ±2kV | |
| IEC61000-4-5 (Surge) | Power Port: ±2kV/DM, ±4kV/CM; Data Port: ±2kV | Power Port: ±2kV/DM, ±4kV/CM; Data Port: ±2kV | Power Port: ±2kV/DM, ±4kV/CM; Data Port: ±2kV | Power Port: ±2kV/DM, ±4kV/CM; Data Port: ±2kV | |
| IEC61000-4-6 (CS) | 3V (10kHz-150kHz); 10V (150kHz-80MHz) | 3V (10kHz-150kHz); 10V (150kHz-80MHz) | 3V (10kHz-150kHz); 10V (150kHz-80MHz) | 3V (10kHz-150kHz); 10V (150kHz-80MHz) | |
| IEC61000-4-16 (Common mode conduction) | 30V (cont.), 300V (1s) | 30V (cont.), 300V (1s) | 30V (cont.), 300V (1s) | 30V (cont.), 300V (1s) | |
| PoE | IEEE802.3af/ IEEE802.3at | IEEE802.3af/ IEEE802.3at | IEEE802.3af/ IEEE802.3at | IEEE802.3af/ IEEE802.3at | |
| 1-4 ports support PoE | 1-8 ports support PoE | 1-8 ports support PoE | 1-12 ports support PoE | ||
| Output Voltage: DC48V | Output Voltage: DC48V | Output Voltage: DC48V | Output Voltage: DC48V | ||
| Max. 15.4 watts (IEEE 802.3af) | Max. 15.4 watts (IEEE 802.3af) | Max. 15.4 watts (IEEE 802.3af) | Max. 15.4 watts (IEEE 802.3af) | ||
| Max. 30 watts (IEEE 802.3at) | Max. 30 watts (IEEE 802.3at) | Max. 30 watts (IEEE 802.3at) | Max. 30 watts (IEEE 802.3at) | ||
| PoE port Auto detect AF/AT devices | PoE port Auto detect AF/AT devices | PoE port Auto detect AF/AT devices | PoE port Auto detect AF/AT devices | ||
| Power Pin Assignment:1/2+;3/6- | Power Pin Assignment:1/2+;3/6- | Power Pin Assignment:1/2+;3/6- | Power Pin Assignment:1/2+;3/6- | ||
| End-span( Mid-span optional) | End-span( Mid-span optional) | End-span( Mid-span optional) | End-span( Mid-span optional) |
| NO. | Product Model | Specifications | Accessories |
| 1 | CI3042GS-POE | 4*RJ45 PoE + 2*1000M SFP | 2*L-shaped bracket with screws |
| 2 | CI3082GS-POE | 8*RJ45 PoE + 2*1000M SFP | 2*L-shaped bracket with screws |
| 3 | CI3084GS-POE | 8*RJ45 PoE + 4*1000M SFP | 2*L-shaped bracket with screws |
| 4 | CI3088GS-POE | 8*RJ45 PoE + 8*1000M SFP | 2*L-shaped bracket with screws |
| 5 | CI3164GS-POE | 16*RJ45 PoE + 4*1000M SFP | 2*L-shaped bracket with screws |
