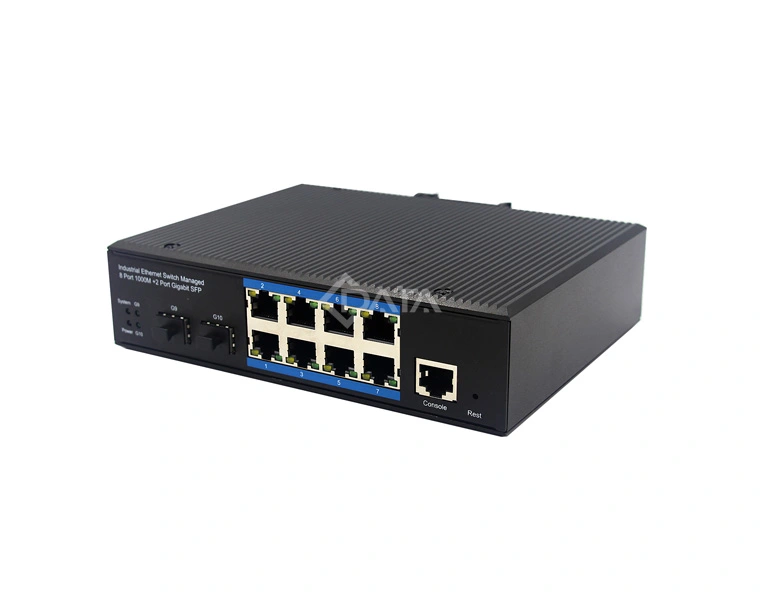

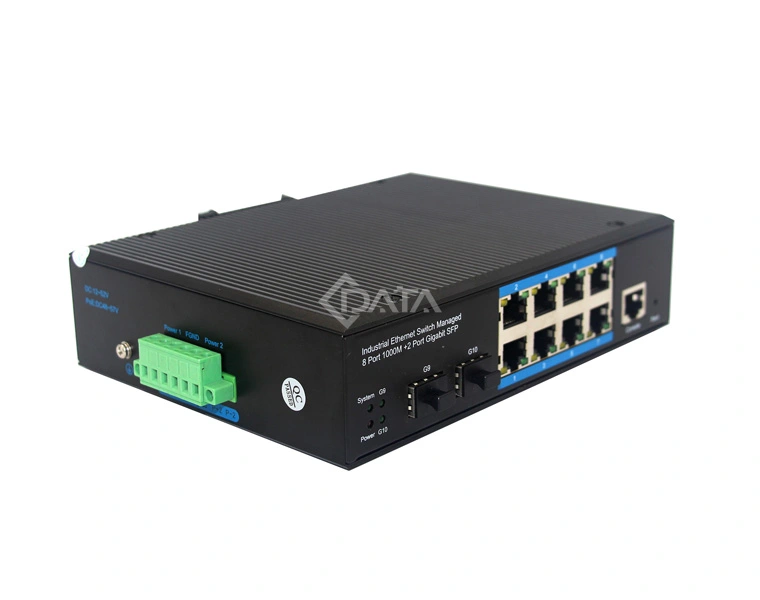

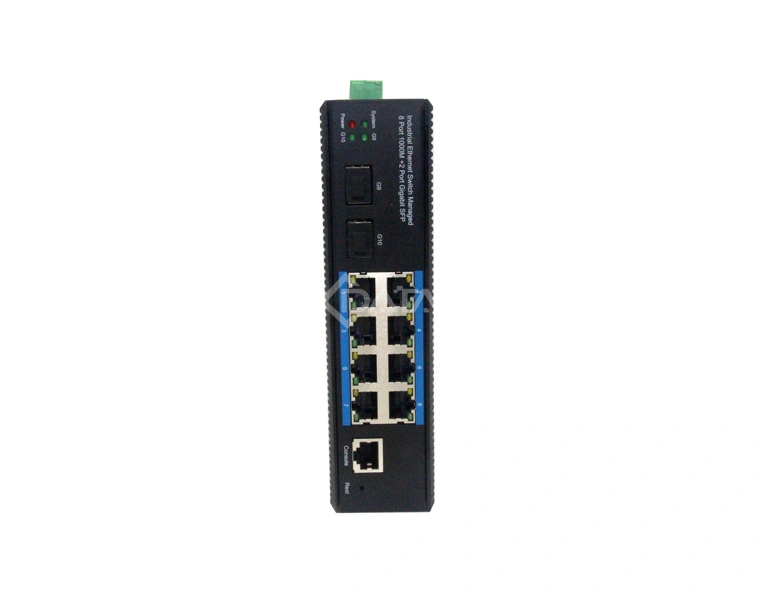

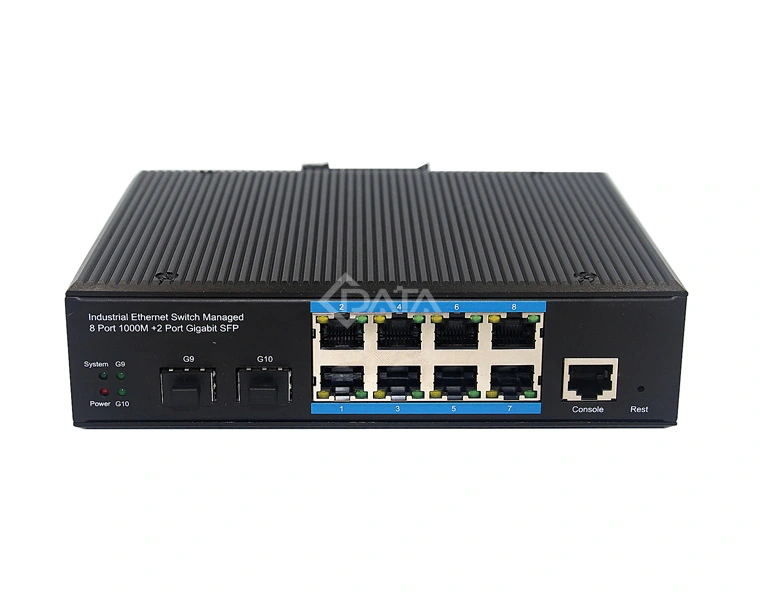

CI3082GS-POE
L2 Industrial PoE Managed Ethernet Switch 8GE + 2SFP

Name: CI3082GS-POE
Brand: Shenzhen C-Data Technology Co., Ltd.

CI3082GS-POE an hardened 10-port Industrial Ethernet Switch, provides non- blocking wire-speed performance in harsh industrial environment. It provides 8- port 10/100/1000BASE-TX RJ45 +2G SFP delivered in an IP40 rugged, strong case with redundant power system. Its slim case is suitable for such applications as surveillance system deployments, control management and wireless service in climatically demanding environments with wide temperature range from -40℃ to 80℃.

 Download  Inquiry

Technical Specifications

Item		CI3082GS-POE
Specifications		8RJ45 PoE + 21000M SFP
Downlink ports		8*10/100/1000BASE-T RJ45 ports
Uplink ports		2*SFP
Console port		1 pcs
Switching capability		76Gbps
Packets switching capability		14.88Mpps
Switching method		Storage forwarding
LED light		Power, system
Enviroment parameters	Work temperature	-40 to 80℃
	Storage temperature	-40 to 85℃
	Work humidity	5% to 95%
	Storage humidity	5% to 95%
IP class		IP40 aluminum housing
MAC table size		8K
FAN		Fanless,natural cold
MTBF		>300,000hours
Power		48 to 57V DC redundant power
Power consumption		<10W
Dimention（WDHmm）		175×135×44mm
Weight	Product Weight	1KG
Weight	Packing Weight	1.1KG
Certification		CE FCC ROHS compliance
Installation		DIN rail
EMC	IEC61000-4-2 (ESD)	±8kV (contact), ±12kV (air)
	IEC61000-4-3 (RS)	10V/m (80~1000MHz)
	IEC61000-4-4 (EFT)	Power Port: ±4kV; Data Port: ±2kV
	IEC61000-4-5 (Surge)	Power Port: ±2kV/DM, ±4kV/CM; Data Port: ±2kV
	IEC61000-4-6 (CS)	3V (10kHz-150kHz); 10V (150kHz-80MHz)
	IEC61000-4-16 (Common mode conduction)	30V (cont.), 300V (1s)
PoE		IEEE802.3af/ IEEE802.3at
		1-8 ports support PoE
		Output Voltage: DC48V
		Max. 15.4 watts (IEEE802.3af)
		Max. 30 watts (IEEE 802.3at)
		PoE port Auto detect AF/ATdevices
		Power Pin Assignment:1/2+;3/6-
		End-span( Mid-spanoptional)
