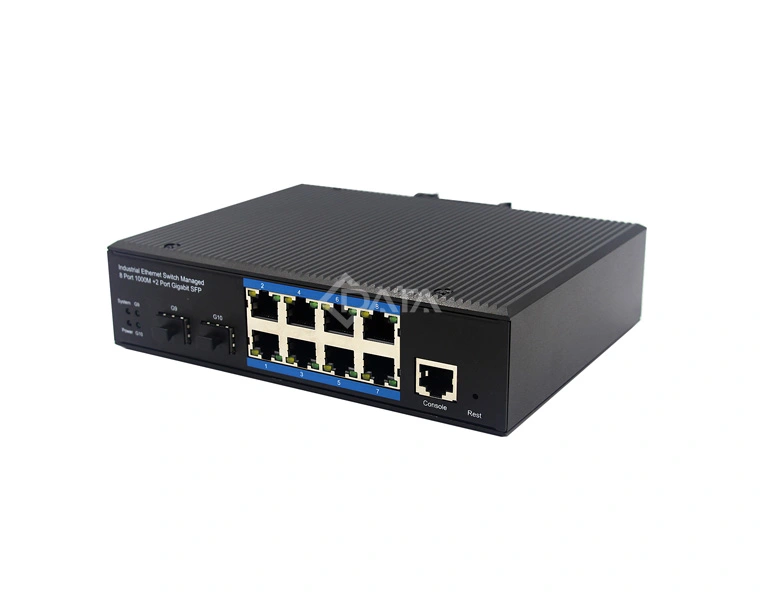

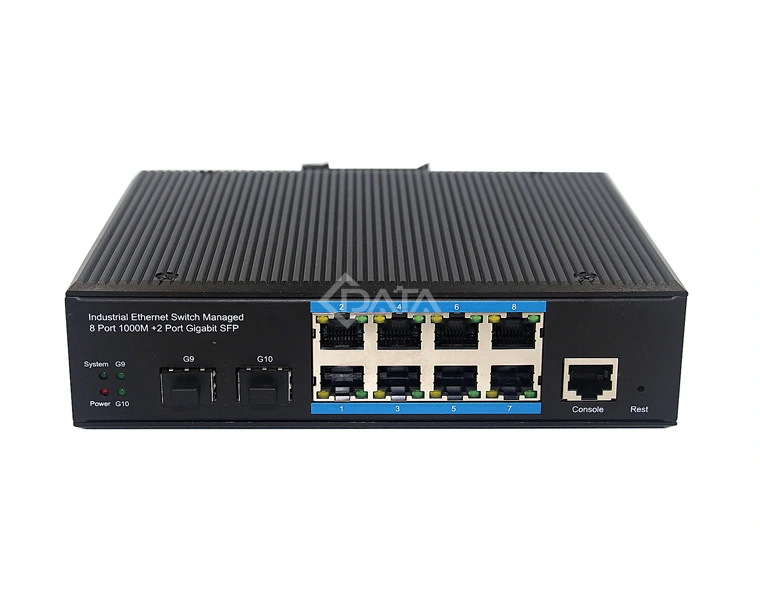

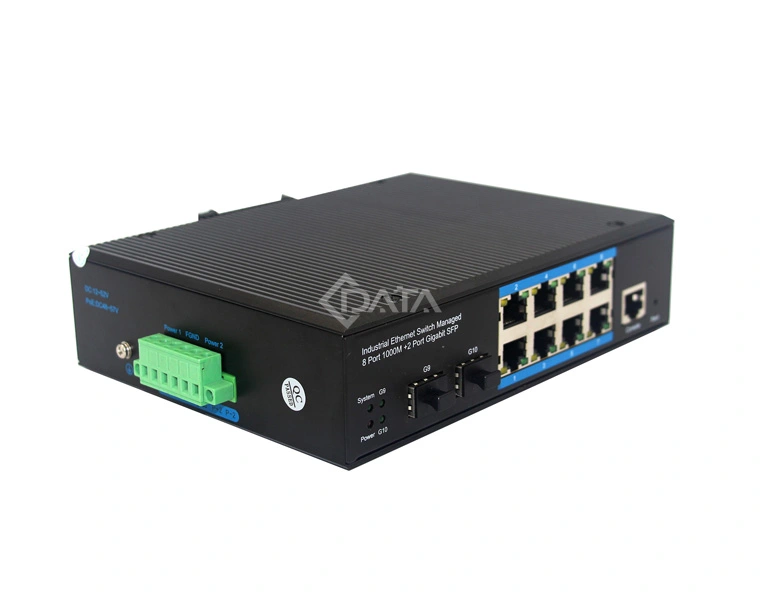

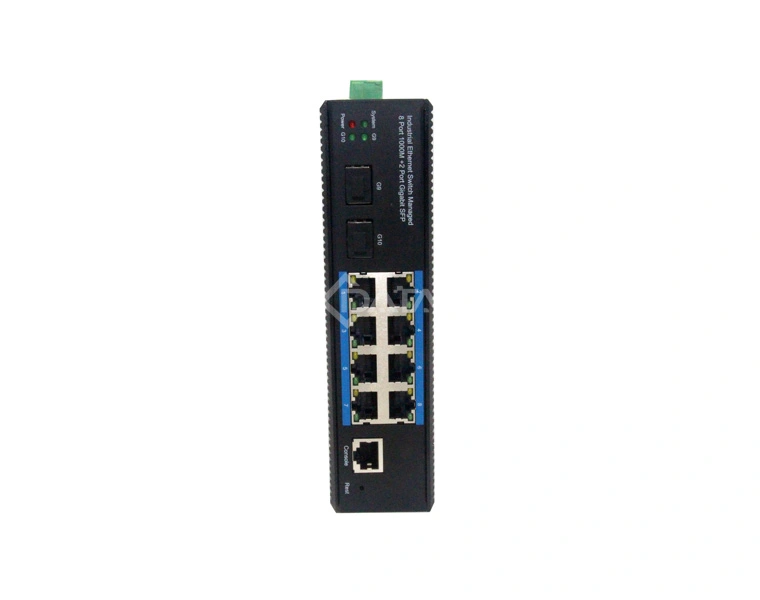

CI3082GS
L2 Industrial Managed Ethernet Switch 8GE + 2SFP

Name: CI3082GS
Brand: Shenzhen C-Data Technology Co., Ltd.

CI3082GS an hardened 10-port Industrial Ethernet Switch, provides non-blocking wire-speed performance in harsh industrial environment. It provides 8-port 10/100/1000BASE-TX RJ45 +2G SFP delivered in an IP40 rugged, strong case with redundant power system. Its slim case is suitable for such applications as surveillance system deployments, control management and wireless service in climatically demanding environments with wide temperature range from -40℃ to 80℃.

 Download  Inquiry

Technical Specifications

Item	CI3082GS
Specifications	8RJ45 + 21000M SFP
Downlink ports	8*10/100/1000BASE-T RJ45 ports
Uplink ports	2*SFP
Console port	1 pcs
Switching capability	76Gbps
Packets switching capability	14.88Mpps
Switching method	Storage forwarding
LED light	Power,system
Enviroment parameters	Work temperature: -40 to 80℃ Storage temperature: -40 to 85℃ Work humidity: 5% to 95% Storage humidity: 5% to 95%
IP class	IP40 aluminum housing
MAC table size	8K
FAN	Fanless,natural cold
MTBF	>300,000hours
Power	12 to 52V DC redundant power
Power consumption	<10W
Dimention（WDHmm）	175×135×44mm
Weight	Product Weight: 1KG Packing Weight: 1.1KG
Certification	CE FCC ROHS compliance
Installation	DIN rail
EMC	IEC61000-4-2 (ESD): ±8kV (contact), ±12kV (air) IEC61000-4-3 (RS): 10V/m (80~1000MHz) IEC61000-4-4 (EFT): Power Port: ±4kV; Data Port: ±2kV IEC61000-4-5 (Surge): Power Port: ±2kV/DM, ±4kV/CM; Data Port: ±2kV IEC61000-4-6 (CS): 3V (10kHz-150kHz); 10V (150kHz-80MHz) IEC61000-4-16 (Common mode conduction): 30V (cont.), 300V (1s)

Software
Jumbo Frames	9600bytes
VLAN	Port based VLAN IEEE 802.1Q VLAN Max.4094 VLANs Support GVRP protocol Support Access,Trunk,Hybrid
QoS	IEEE 802.1p/1Q TOS/ Diffserv
LACP	Support Link Aggregation Control Protocol
LLDP	Support Link Layer Discovery Protocol
Multicast	IGMP v1/v2/v3 IGMP snooping
Security feature	Support ACL Support 802.1x Support user classification management Support mac address binding
Ring protect protocol	Support STP/RSTP/MSTP Support ERPS (self-healing time<20ms)
Flow control	Support 802.3x full duplex flow control Support network storm suppression
Monitoring maintenance	Support port mirroring Support interface status monitoring Support log management
Storm control	Broadcast/Multicast/Unknown Unicast storm control
SNMP	SNMP V1, V2, V3
DHCP Snooping	Prevent illegal DHCP server
Alarm function	Support power supply, port, abnormal state relay output
Network management	Support SSH/Telnet CLI SNMP WEB (IP: 192.168.10.12 ,username/password: admin/admin)
