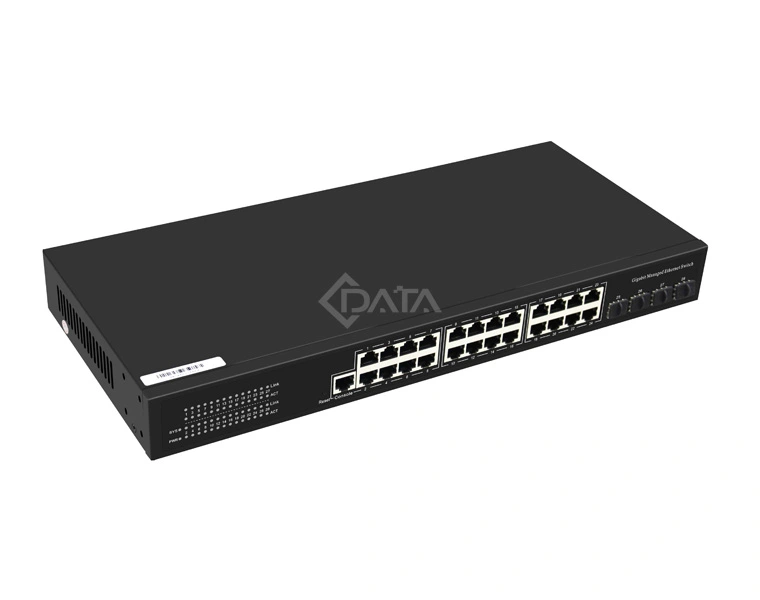

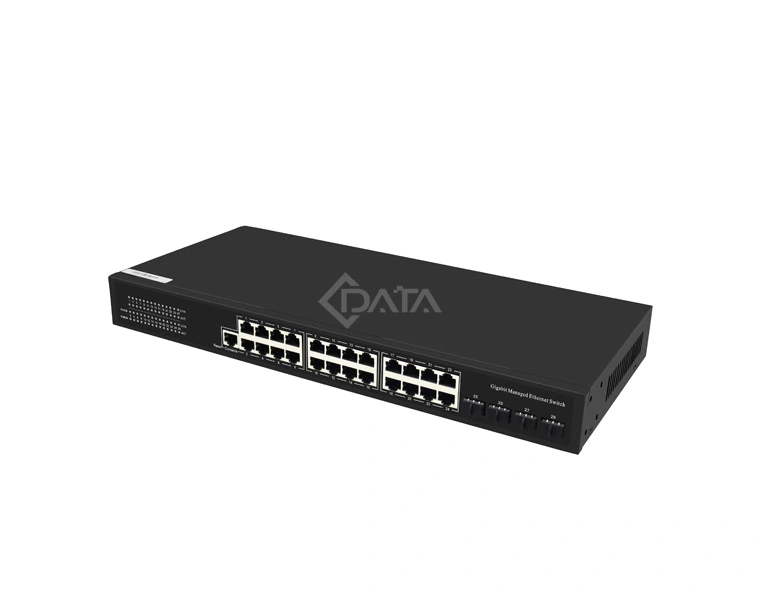

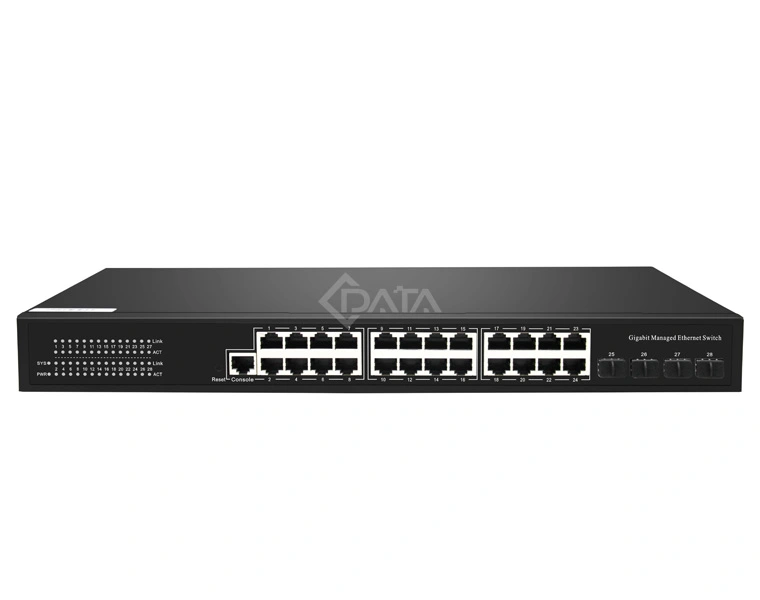

CS3244GS is a full Gigabit Layer 2 Managed Ethernet Switch. It provides 24 Gigabit ports and 4 SFP ports, which can meet the requirements of cost-effective Gigabit access or convergence network.It adopts storage-forwarding and dynamic memory allocation technology, which makes sure each port can work in linear forwarding way. The product has abundant L2 features such as VLAN, LACP, QoS, ACL, and is widely used in the access of enterprise networks and campus networks. It provides the users with a high-performance, easy-to-manage, easy-to-expand, and low-cost solution when it comes to Gigabit to desktop solutions.
| Item | CS3244GS | |
| Specifications | 24*RJ45 + 4*1000M SFP | |
| Downlink ports | 24*10/100/1000BASE-T RJ45 | |
| Uplink ports | 4*SFP | |
| Console port | 1 pcs | |
| USB port | ||
| Switching capability | 56Gbps | |
| Packets switching capability | 41.7Mpps | |
| Switching method | Storage forwarding | |
| LED light | power, ports, sys | |
| PoE | ||
| Enviroment parameters | Work temperature | -20 - to 50℃ |
| Storage temperature | -40 - 85℃ | |
| Work humidity | 10% to 90% | |
| Storage humidity | 10% to 95% | |
| Weight | Product Weight | 2.0KG |
| Packing Weight | 2.6KG | |
| Jumbo Frame | 9.6Kbytes | |
| MAC table size | 8K | |
| Flash size | 16MB | |
| DDR3 size | 128MB | |
| Power | AC100～240V | |
| Power consumption | Full load <= 36W | |
| Dimention（W*D*Hmm） | 440*204*44.5mm | |
| Certification compliance | FCC CE ROHS |
