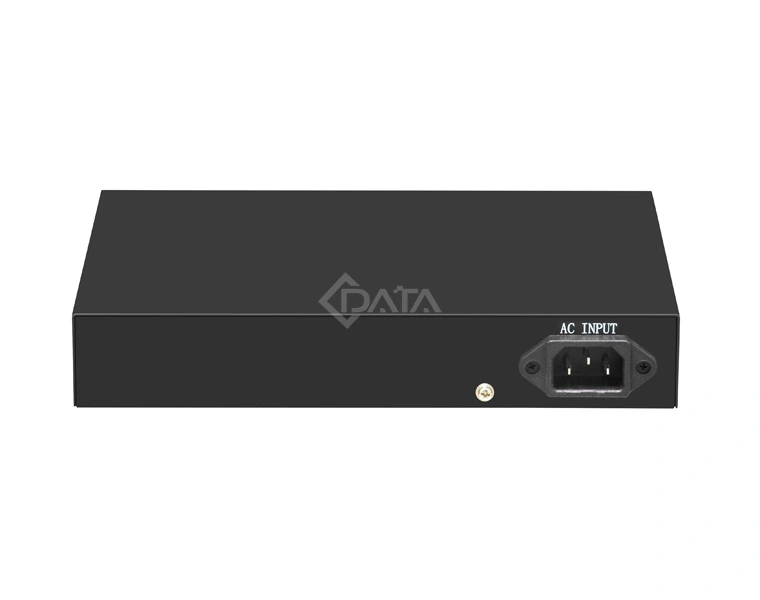

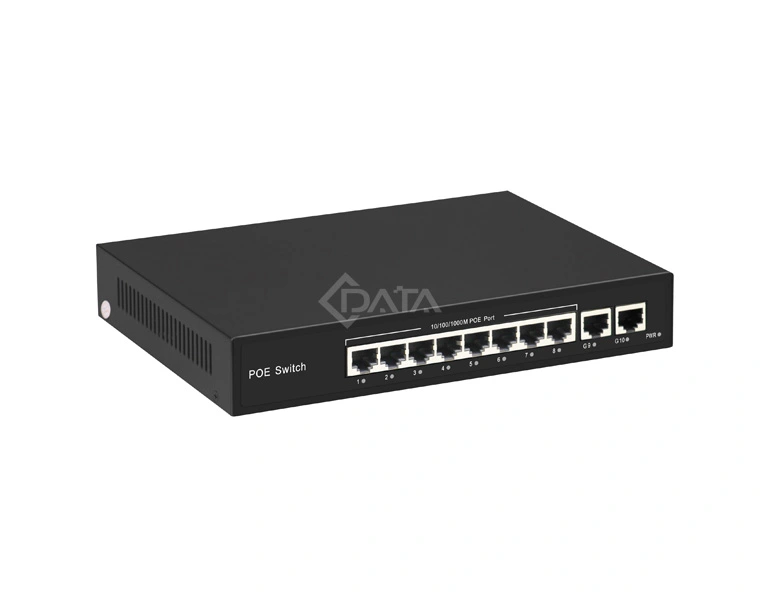

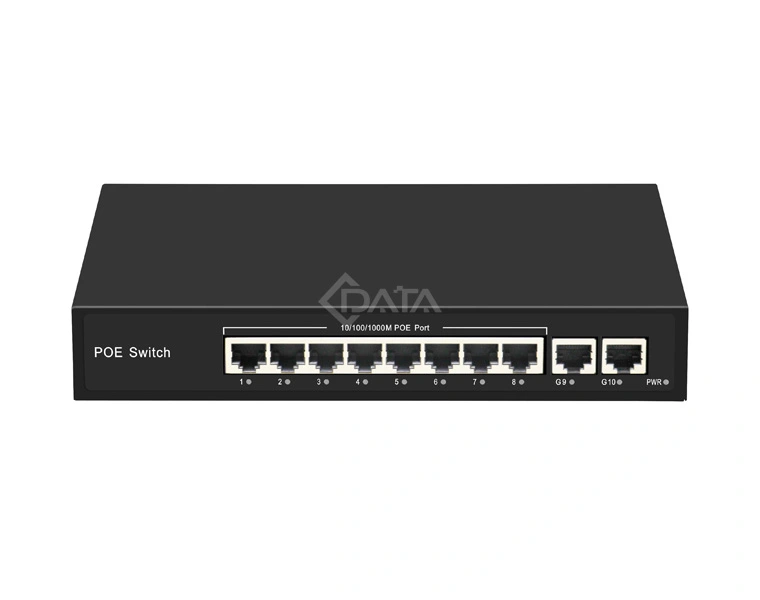

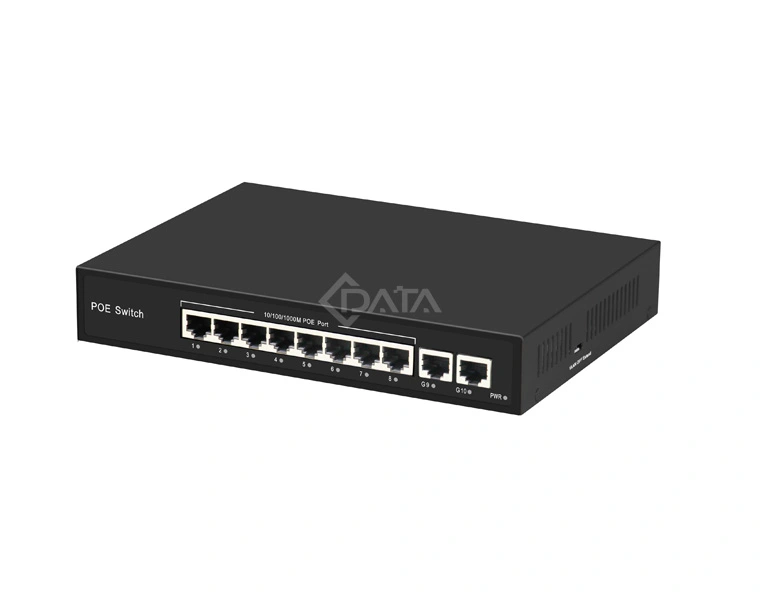

CS2082G-POE
Unmanaged Ethernet PoE Switch 8GE + 2GE

The PoE switch provides power and data from a single point, using Power over Ethernet (PoE) over a single Cat-5 cable. It can be used for any 10/100/1000Mbps link and supply industry-standard IEEE 802.3af/at power. Advanced auto-sensing algorithm gives power to 802.3af/at end devices, In addition, the PoE switch automatically determines PoE requirements, speed, duplex, and cable type using Auto Uplink. Easy to operate and reliable.

The PoE switch is ideal for powering PoE devices such as IP cameras, WLAN access point, IP phones, office access control systems, and other PD devices and offers a line of high quality products that provide a total solution for Ethernet application in different environments.

Technical Specifications

Item
CS2082G-POE
Specifications
8*RJ45 PoE + 2*1000M RJ45
Downlink ports
8*10/100/1000M BASE-T  RJ45
Uplink ports
2*10/100/1000M BASE-T  RJ45
Switching capability
20Gbps
Packets switching capability
14.88Mpps
Switching method
Storage forwarding
LED light
PWR(power supply)

1-10 Green(Link&Data)
MAC table size
2K
Input PowerInput VoltageInput: 110-240V AC, 50/60Hz
PoE Power
Max Power: 120W

PoE Power Supply: 1/2(+),3/6(-)

PoE Standard: IEEE802.3af/at

Max. 30W output of single PoE port
Enviroment parametersWork temperature-10 - to 55℃
Storage temperature-40 - 70℃
Work humidity10% to 90%
Storage humidity10% to 90%
Dimention(W*D*Hmm)
222*163*40mm
Weight
N.W: 0.85Kg; G.W: 1.1Kg
Certification compliance
FCC CE ROHS
Installation
Desktop
