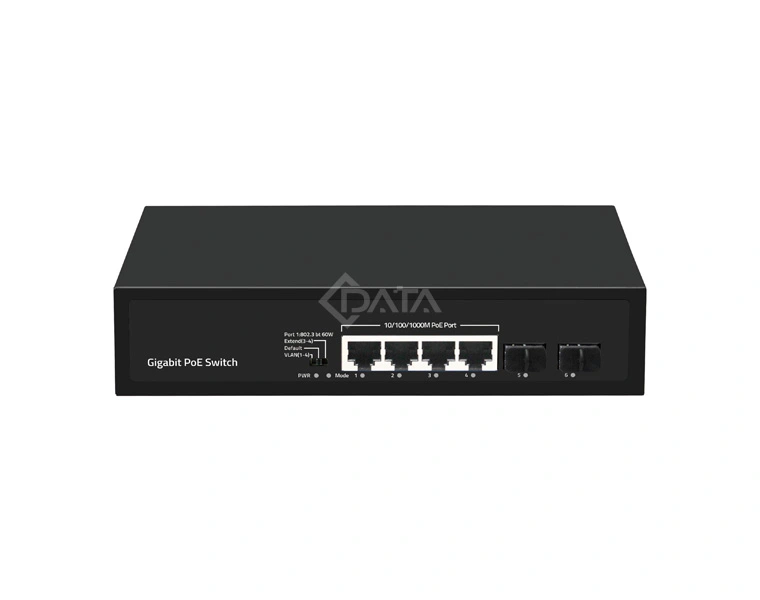

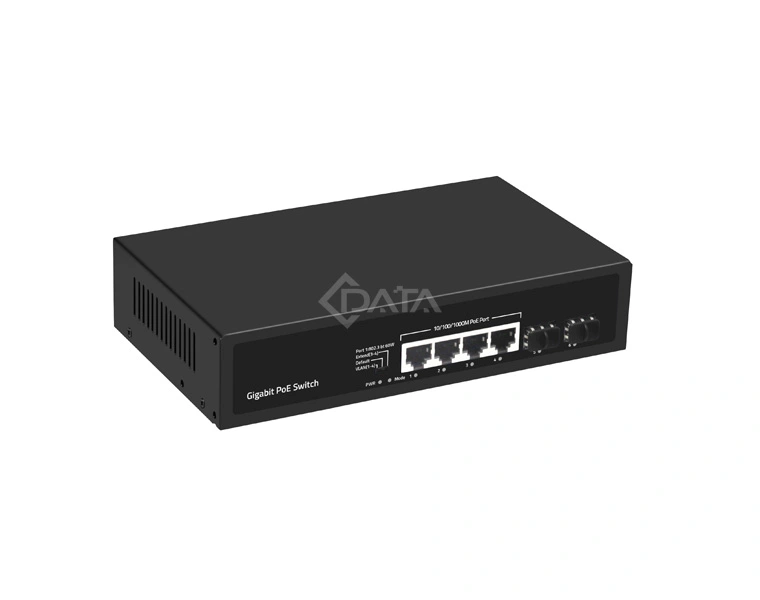

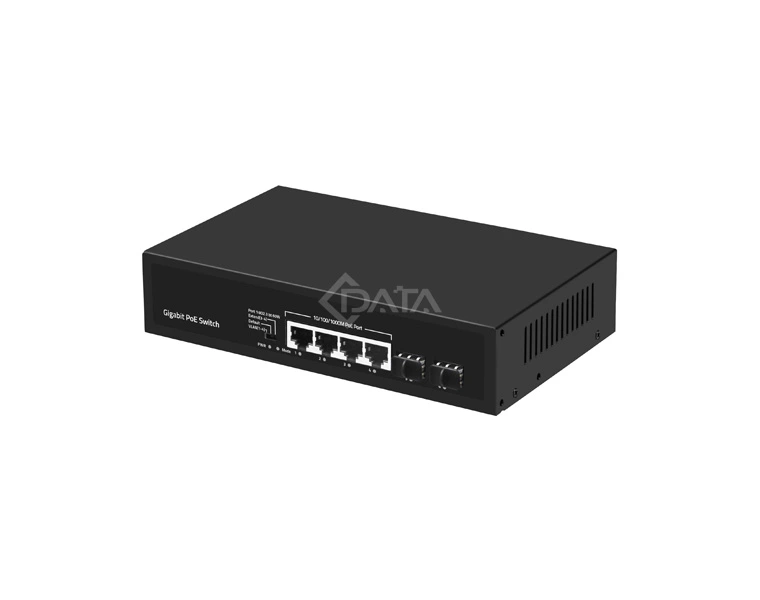

CS2042GS-POE
Unmanaged Ethernet PoE Switch 4GE + 2SFP

The PoE switch provides power and data from a single point, using Power over Ethernet (PoE) over a single Cat-5 cable. It can be used for any 10/100/1000Mbps link and supply industry-standard IEEE 802.3af/at power. Advanced auto-sensing algorithm gives power to 802.3af/at end devices, In addition, the PoE switch automatically determines PoE requirements, speed, duplex, and cable type using Auto Uplink. Easy to operate and reliable.

The PoE switch is ideal for powering PoE devices such as IP cameras, WLAN access point, IP phones, office access control systems, and other PD devices and offers a line of high quality products that provide a total solution for Ethernet application in different environments.

Technical Specifications

Item

CS2042GS-POE

Specifications
4*RJ45 PoE + 2*1000M SFP
Downlink ports
4*10/100/1000M BASE-T  RJ45
Uplink ports
2*1000M SFP
Switching capability
12Gbps
Packets switching capability
8.9Mpps
Packet buffer

Switching method
Storage forwarding
LED lightPWR(power supply)Lighting:Powered
Un-Light:No Power
SW(DIP)Lighting:VLAN
Un-Light:Default
Flashing:Extend
1-6 Green(Link&Data)Lighting:Connecting
Flashing:Data Transmit
Un-Light:Disconnect
MAC table size
2K
Jumbo frame

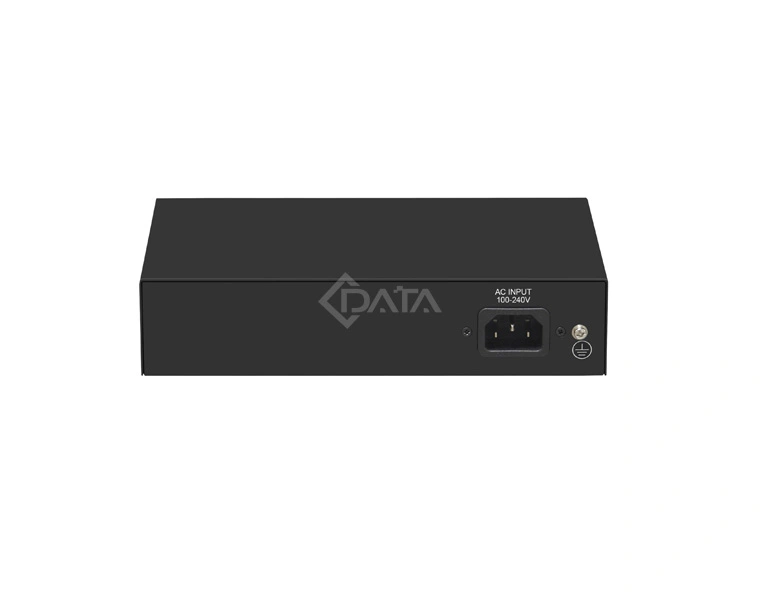

Input PowerInput Voltage100-240V AC, 50/60Hz
Power supply
PoE Power
Max Power:65W (120W optional)

PoE Standard: IEEE802.3af/at

Max. 30W output of single PoE port


Enviroment parametersWork temperature-10 - to 55℃
Storage temperature-40 - 70℃
Work humidity10% to 90%
Storage humidity10% to 90%
Dimention(W*D*Hmm)
200*118*44mm
Weight
N.W:0.6Kg  G.W:0.9Kg
Certification compliance
FCC CE ROHS
Installation
Desktop
