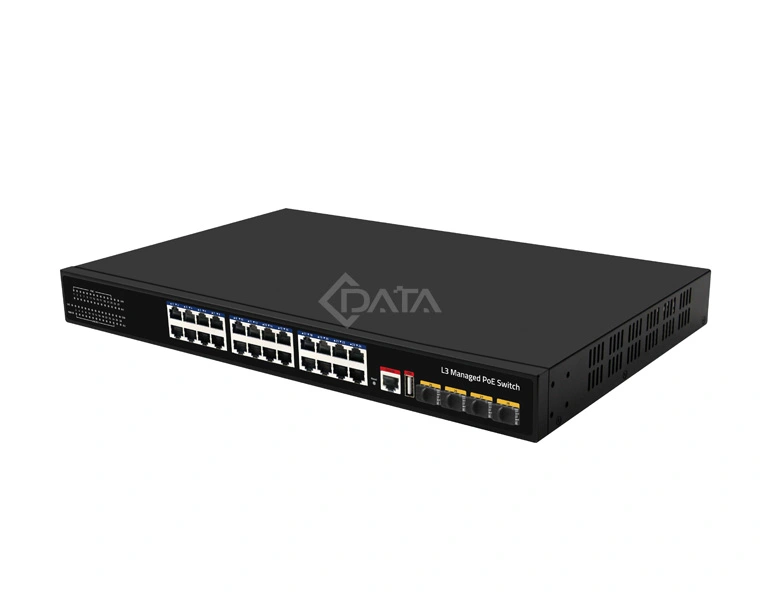

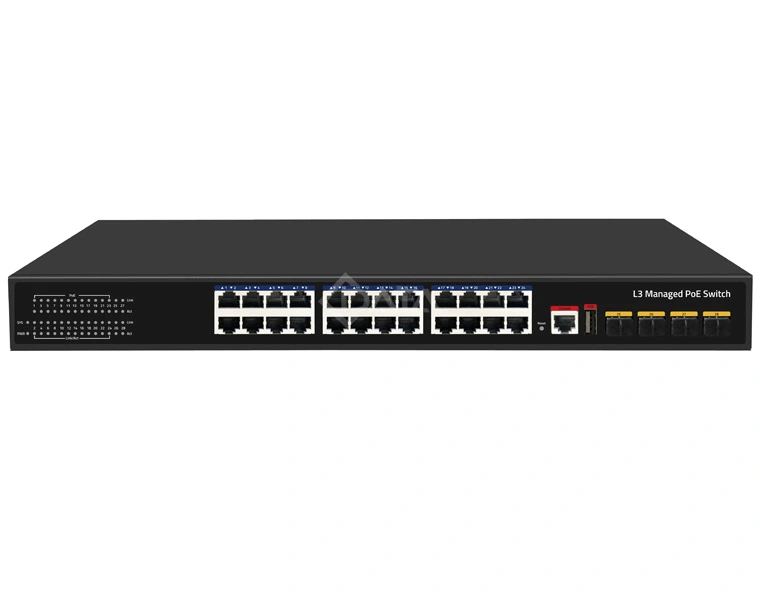

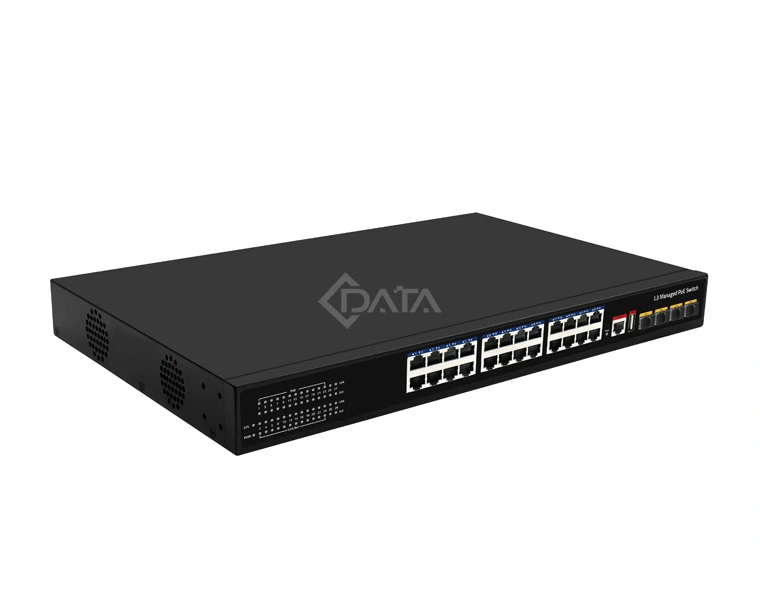

CS5244GX-POE is a 28 Port 10G Uplink 24 Port Gigabit L3 Managed Ethernet POE Switch, which provide 24*10/100/1000 adaptive POE electrical port, 4*10G SFP+ Port, 1*Console port, 1*USB series port. Used the high quality high speed network IC and the most stable POE chips, POE port satisified IEEE 802.3 af/at standard, this series POE Switch can provide no gap link for 10/100/1000M ethernet, and the PoE power supply port can automatically detect and supply power to the power receiving device that meets the standard, intelligent detection of non-PoE devices does not supply power, only transmits data.
| Item | CS5244GX-POE | |
| Specifications | 24*RJ45 PoE + 4*10G SFP+ | |
| Downlink ports | 24*10/100/1000BASE-T RJ45 | |
| Uplink ports | 4*10G SFP+ | |
| Console port | 1 pcs | |
| USB port | 1 pcs | |
| Switching capability | 128Gbps | |
| Packets switching capability | 95Mpps | |
| Switching method | Storage forwarding | |
| LED light | power, ports, sys | |
| PoE | Max Power 440W, port MAX 30W | |
| Enviroment parameters | Work temperature | -10 - to 50℃ |
| Storage temperature | -40 - 85℃ | |
| Work humidity | 10% to 90% | |
| Storage humidity | 10% to 95% | |
| Weight | Product Weight | 4.03KG |
| Packing Weight | 5.15KG | |
| Jumbo Frame | 12Kbytes | |
| MAC table size | 16K | |
| Flash size | 16MB | |
| DDR3 size | 128MB | |
| Power | AC100-240V/50-60Hz | |
| Power consumption | Full load <= 36W | |
| Dimention（W*D*Hmm） | 440*280*44mm | |
| Certification compliance | FCC CE ROHS |
