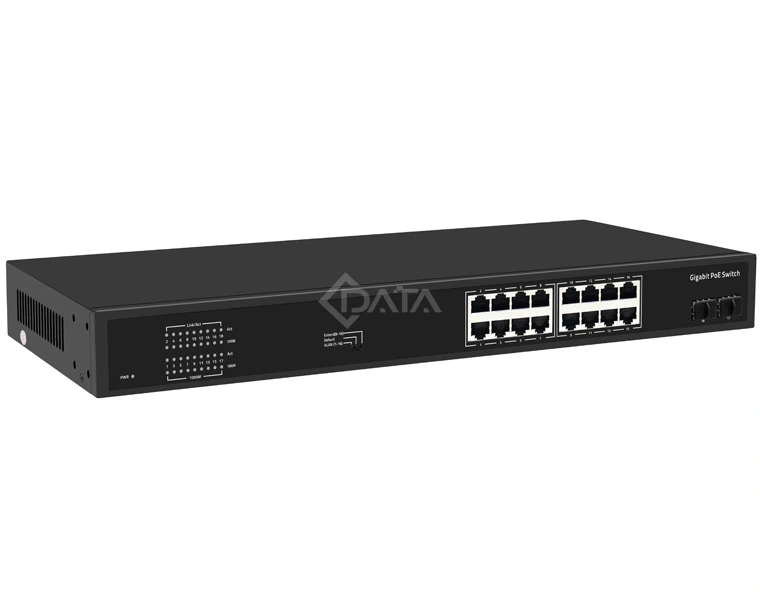

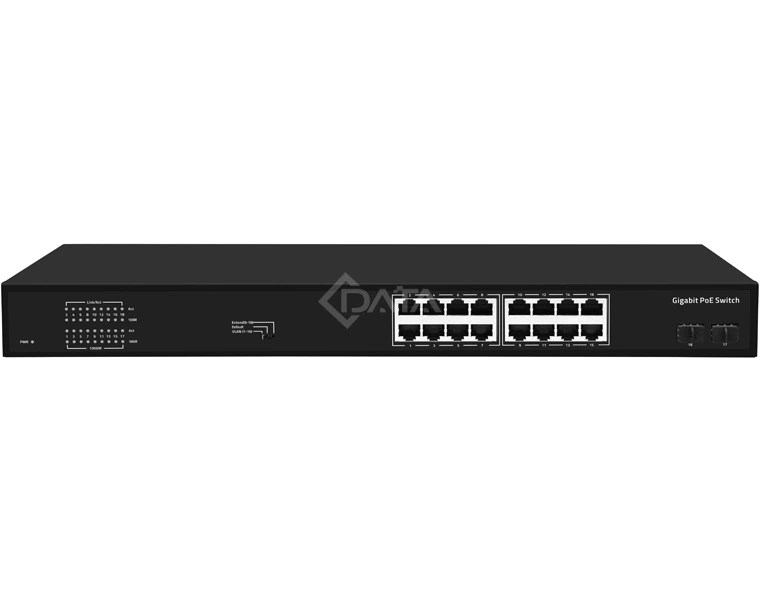

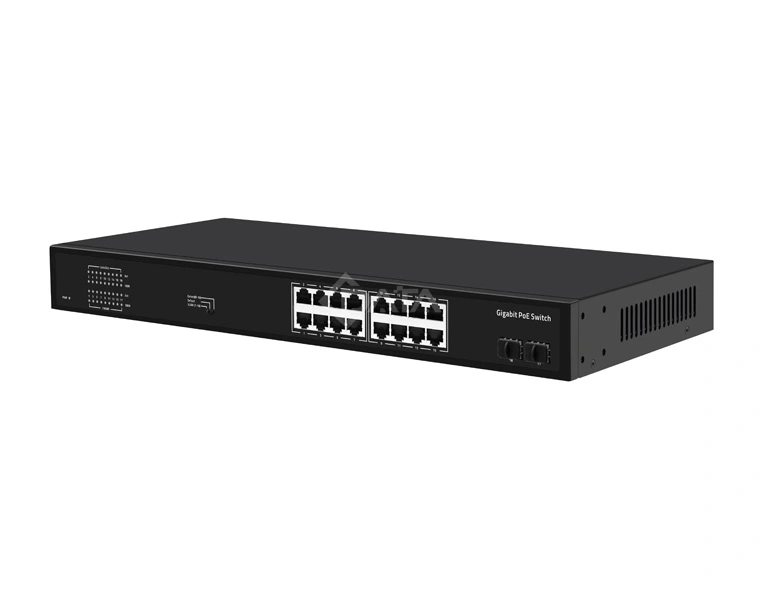

CS2162GS-POE
Unmanaged Ethernet PoE Switch 16GE + 2SFP

The PoE switch provides power and data from a single point, using Power over Ethernet (PoE) over a single Cat-5 cable. It can be used for any 10/100/1000Mbps link and supply industry-standard IEEE 802.3af/at power. Advanced auto-sensing algorithm gives power to 802.3af/at end devices, In addition, the PoE switch automatically determines PoE requirements, speed, duplex, and cable type using Auto Uplink. Easy to operate and reliable.

The PoE switch is ideal for powering PoE devices such as IP cameras, WLAN access point, IP phones, office access control systems, and other PD devices and offers a line of high quality products that provide a total solution for Ethernet application in different environments.

Technical Specifications

Item

CS2162GS-POE

Specifications
16*RJ45 PoE + 2*1000M SFP
Downlink ports
16*10/100/1000M BASE-T  RJ45
Uplink ports
2*1000M SFP
Switching capability
36Gbps
Packets switching capability
26.78Mpps
Packet buffer

Switching method
Storage forwarding
LED lightPWR(power supply)1-18 ACT(Link&Data)
1-18 1000M(Link)
SW(DIP)


1-6 Green(Link&Data)


MAC table size
8K
Jumbo frame

Input PowerInput VoltageInput: 110-240V AC, 50/60Hz
Power supply
PoE Power
Max Power:200W(Optional 300W)

PoE Power Supply: 1/2(+),3/6(-)

PoE Standard: IEEE802.3af/at

Max. 30W output of single PoE port
Enviroment parametersWork temperature-10 - to 55℃
Storage temperature-40 - 70℃
Work humidity10% to 95%
Storage humidity10% to 95%
Dimention(W*D*Hmm)
440*204*44mm
Weight
N.W:2.6Kg  G.W:3.2Kg
Certification compliance
FCC CE ROHS
Installation
Rack/ Desktop
