CI2042GS-POE
L2 Industrial PoE UnManaged Ethernet Switch 4GE + 2SFP

Name: CI2042GS-POE
Brand: Shenzhen C-Data Technology Co., Ltd.

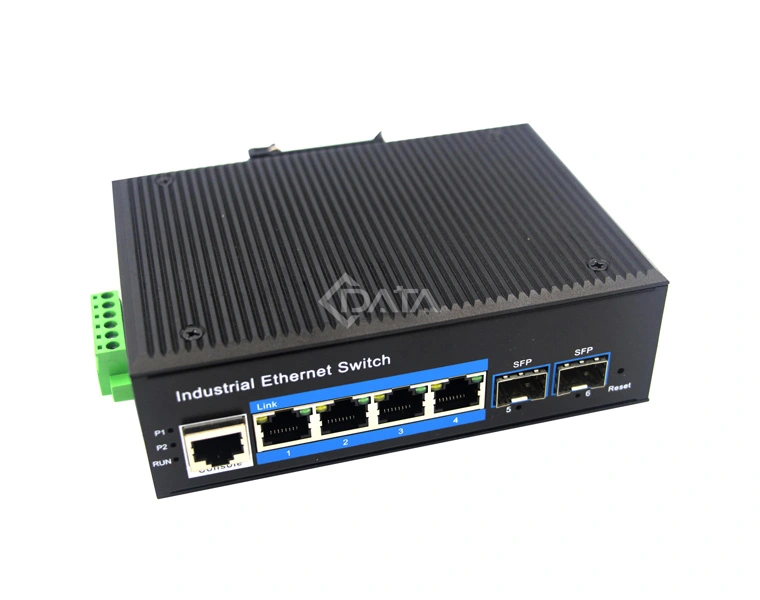

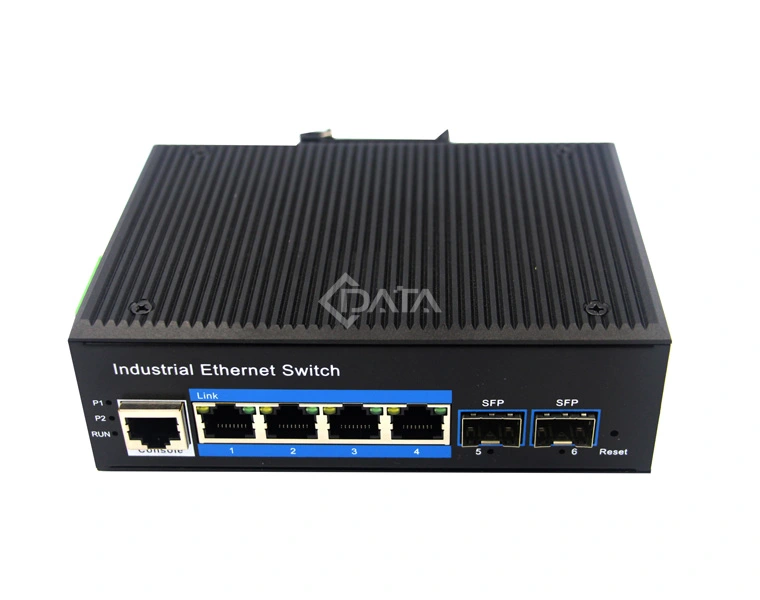

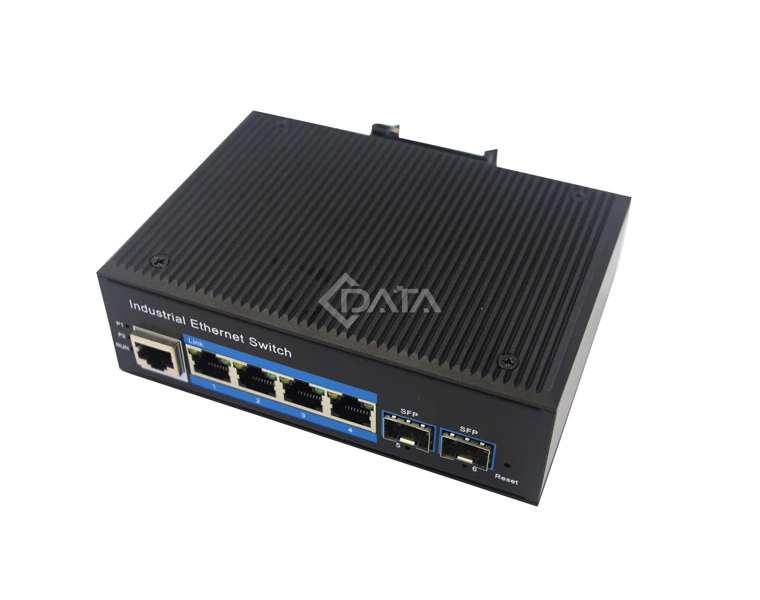

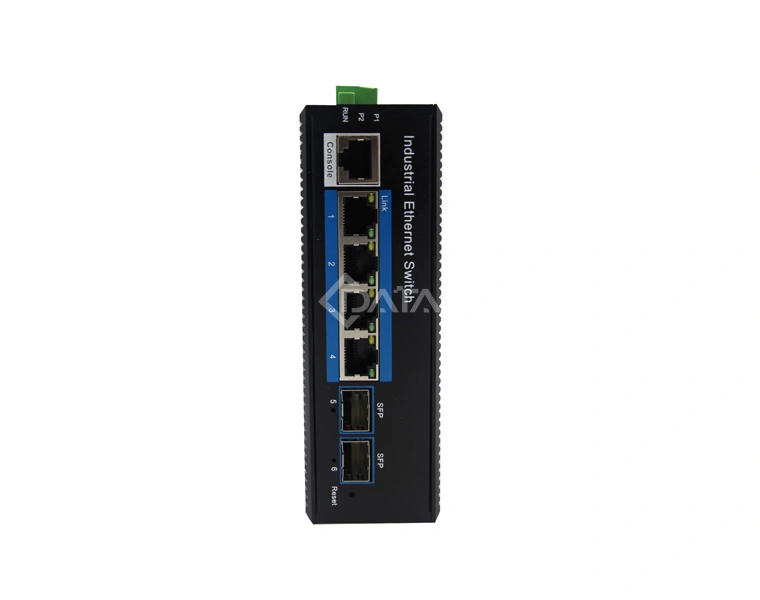

CI2042GS-POE an hardened 4-port Industrial Ethernet PoE Switch, 2 SFP Uplink ports, provides non-blocking wire-speed performance in harsh industrial environment. It also provides 4-port 10/100/1000BASE-TX RJ45 copper interfaces delivered in an IP40 rugged, strong case with redundant power system. Its slim case is suitable for such applications as surveillance system deployments, control management and wireless service in climatically demanding environments with wide temperature range from -40℃ to 85℃. It complies with IEEE802.3 af/at standard, 30W max. each port.

 Download  Inquiry

Technical Specifications

Item	CI2042GS-POE
Specifications	4RJ45 PoE + 21000M SFP
Downlink ports	4*10/100/1000BASE-T RJ45
Uplink ports	2*SFP
Switching capability	12Gbps
Packets switching capability	17.85Mpps
Swtiching method	Strorage forwarding
LED light	Power,ports,PoE
Enviroment parameters	Storage temperature: -40 to 85℃ Work temperature: -40º to 85℃ Work humidity: 5% to 95% Storage humidity: 5% to 95%
IP class	IP40 aluminum housing
EMC	IEC61000-4-2 (ESD): ±8kV (contact), ±12kV (air) IEC61000-4-3 (RS): 10V/m (80~1000MHz) IEC61000-4-4 (EFT): Power Port: ±4kV; Data Port: ±2kV IEC61000-4-5 (Surge): Power Port: ±2kV/DM, ±4kV/CM; Data Port: ±2kV IEC61000-4-6 (CS): 3V (10kHz-150kHz); 10V (150kHz-80MHz) IEC61000-4-16 (Common mode conduction): 30V (cont.), 300V (1s)
Jumbo Frame	9K
MAC table size	8K
FAN	Fanless,natural cold
MTBF	>300,000hours
Power	48 to 57V DC redundant power
Power consumption	<3W
Dimention（WDHmm）	143.7 x 103 x 44.2 mm
Weight	Product Weight: 0.36KG Packing Weight: 0.46KG
Certification	CE FCC ROHS compliance
Installation	DIN rail
PoE	IEEE802.3af/ IEEE802.3at 1-4 ports support PoE Output Voltage: DC48V Max. 15.4 watts (IEEE 802.3af) Max. 30 watts (IEEE 802.3at) PoE port Auto detect AF/AT devices Power Pin Assignment: 1/2+;3/6- End-span( Mid-span optional)
