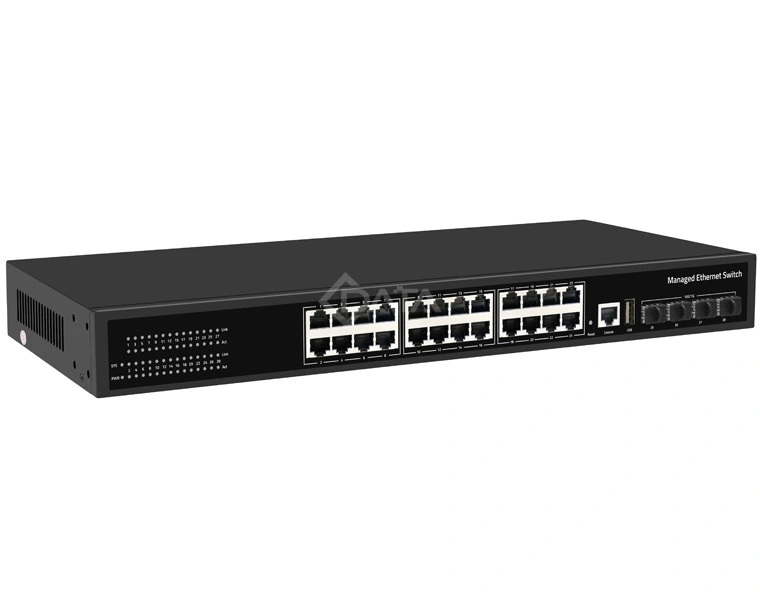

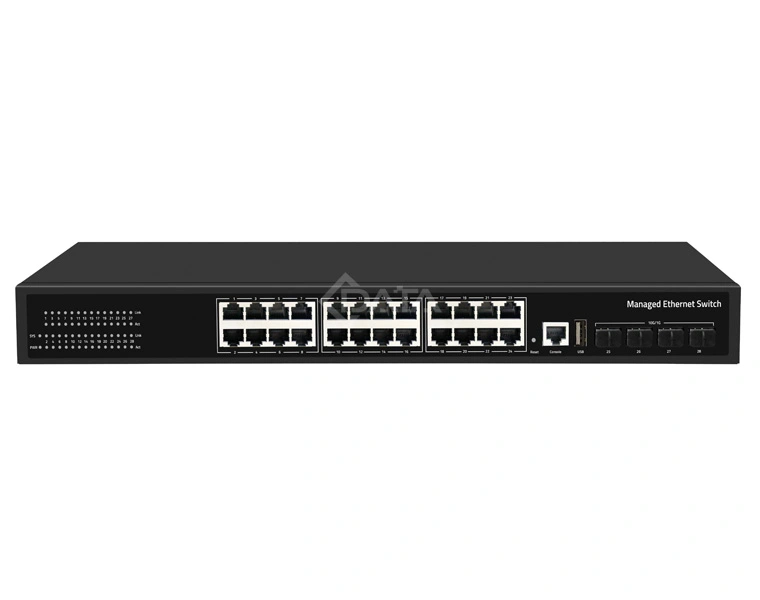

CS5244GX
L3 Managed Ethernet Switch 24GE + 4SFP+

CS5244GX is a full Gigabit L3 Managed Ethernet Switch. The product hardware uses a high-performance low-power network processor, provides Gigabit wire-speed forwarding performance, supports the line sleep capability of Green Ethernet, and has the lowest power consumption compared with switches in the same class.

It provides 24 Gigabit ports and 4 SFP+ ports, which can meet the requirements of cost-effective Gigabit access or convergence network.The product has abundant L2 features such as VLAN, LACP, QoS, ACL, and is widely used in the access of enterprise networks and campus networks. It provides the users with a high-performance, easy-to-manage, easy-to-expand, and low-cost solution when it comes to Gigabit to desktop solutions.

Technical Specifications

Item
CS5244GX
Specifications
24*RJ45 + 4*10G SFP+
Downlink ports
24*10/100/1000BASE-T RJ45
Uplink ports
4*10G SFP+
Console port
1 pcs
USB port
1 pcs
Switching capability
128Gbps
Packets switching capability
95Mpps
Switching method
Storage forwarding
LED light
power, ports, sys
PoE

Enviroment parametersWork temperature-10 - to 50℃
Storage temperature-40 - 85℃
Work humidity10% to 90%
Storage humidity10% to 95%
WeightProduct Weight2.4KG
Packing Weight3.0KG
Jumbo Frame
12Kbytes
MAC table size
16K
Flash size
32MB
DDR3 size
512MB
Power
AC100-240V/50-60Hz
Power consumption
Full load <= 36W
Dimention(W*D*Hmm)
440*205*44mm
Certification compliance
FCC CE ROHS
