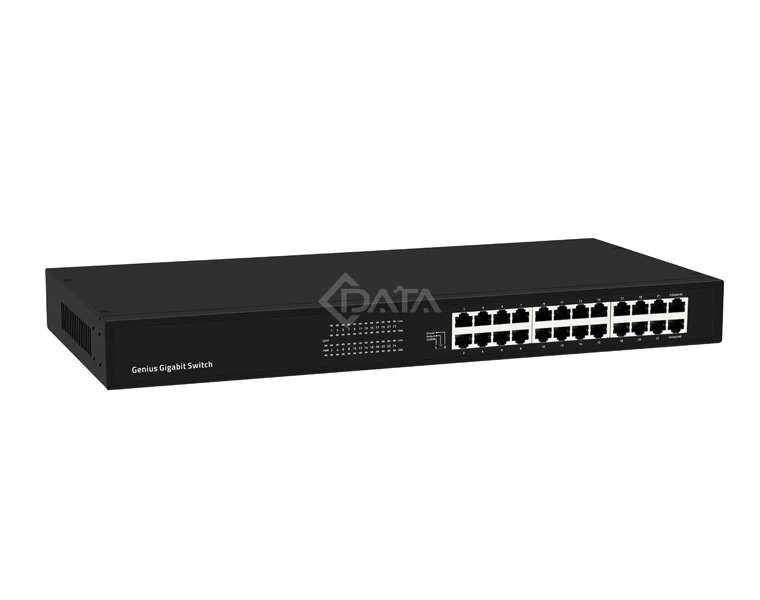

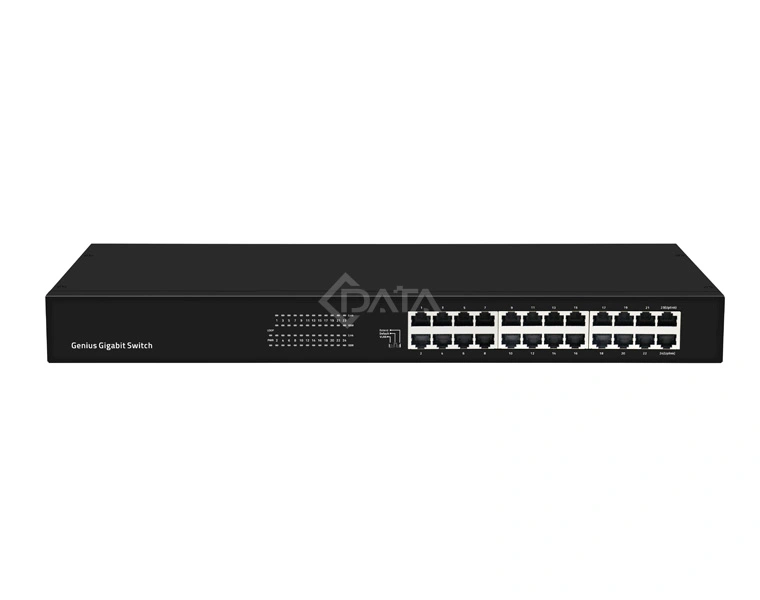

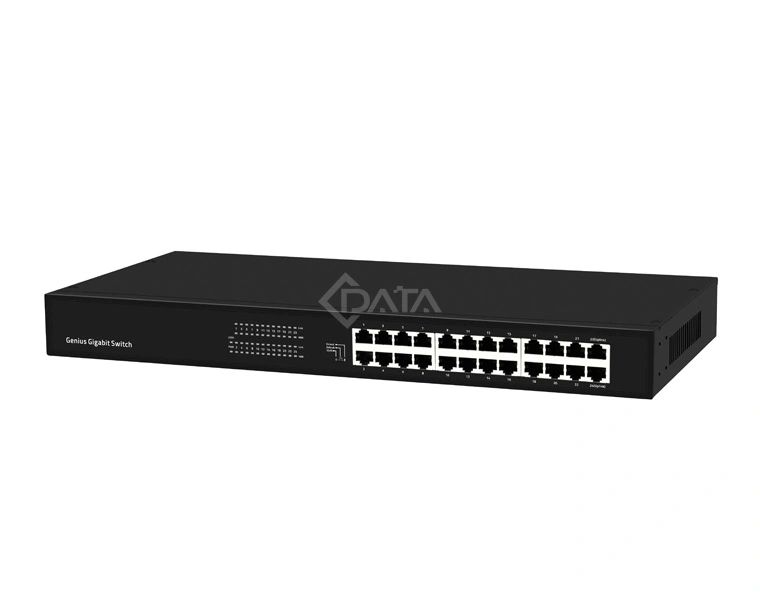

CS2240G
Unmanaged Ethernet Switch 24GE

The CS2240G series unmanaged switches are full Gigabits Ethernet switch designed for high forwarding network environment such as school, family, SMEs and mini monitoring. It has 24 10/100/1000Mbps adaptive Ethernet ports. All ports support wire-speed forwarding and the data rate is up to 1000Mbps. There is 4K lightning protection to ensure smooth and stable operation. Auto MDI/MDIX is also available. No configuration is required; it will instantly operate as soon as you power it up.

Download Inquiry

Technical Specifications

ItemCS2240G
Specifications24*RJ45
Ports24*10/100/1000M BASE-T RJ45
Switching capability48Gbps
Packets switching capability35.7Mpps
Switching methodStorage forwarding
DIPsupport VLAN 、Extend mode
LED light

PWR(Power indicator)

Link(Network Link)

LOOP(Loop alarm)

1000M

Enviroment parametersWork temperature: -10 - to 55℃
Storage temperature: -40 - 70℃
Work humidity: 10% to 95%
Storage humidity: 10% to 95%
MAC table size8K

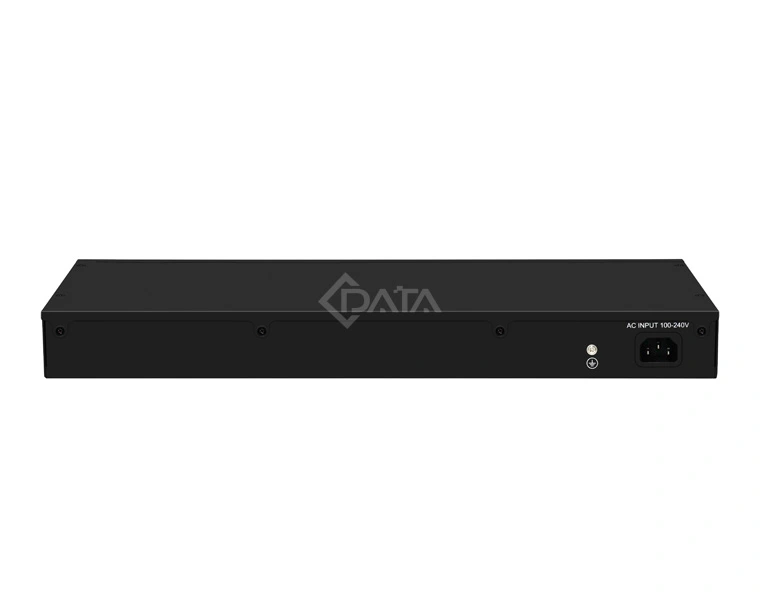

Input PowerInput: 100-240V AC, 50/60Hz
Dimention（W*D*Hmm）440×208×44.5mm
WeightN.W: 2.2Kg; G.W: 2.7Kg
Certification complianceFCC CE ROHS
InstallationRack/ Desktop
