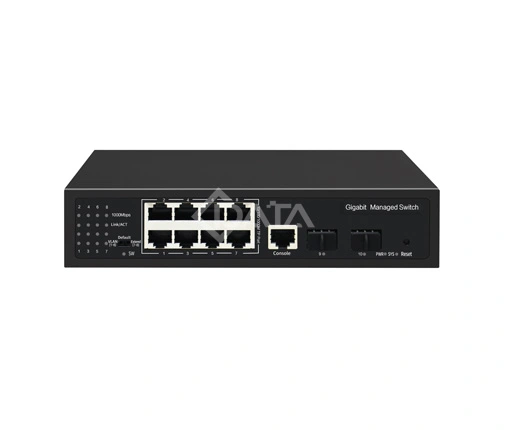

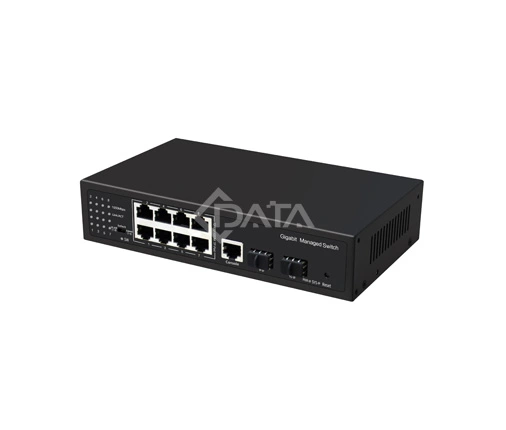

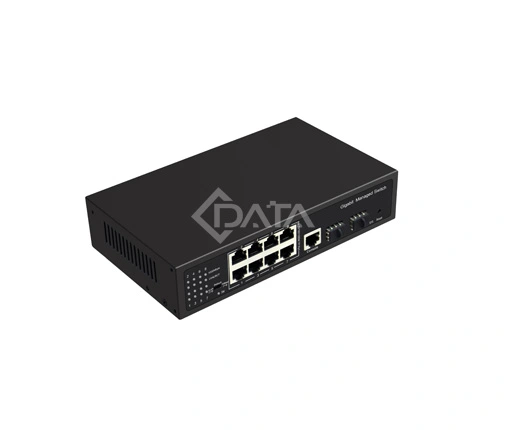

CS3082GS
L2 Managed Ethernet Switch 8GE + 2SFP

CS3082GS is a full Gigabit Layer 2 Managed Ethernet Switch. It provides 8 Gigabit ports and 2 SFP ports, which can meet the requirements of cost-effective Gigabit access or convergence network. It adopts storage-forwarding and dynamic memory allocation technology, which makes sure each port can work in linear forwarding way. The product has abundant L2 features such as VLAN, LACP, QoS, ACL, and is widely used in the access of enterprise networks and campus networks. It provides the users with a high-performance, easy-to-manage, easy-to-expand, and low-cost solution when it comes to Gigabit to desktop solutions.

Technical Specifications

Item

CS3082GS

Specifications
8*RJ45 + 2*1000M SFP
Downlink ports
8*10/100/1000MBASE-T  RJ45
Uplink ports
2* 1000M SFP
Console port
1 pcs
USB port

Switching capability
20Gbps
Packets switching capability
14.88Mpps
Switching method
Storage forwarding
LED light
PWR、SYS、Link、ACT
PoE

Enviroment parametersWork temperature-15 - to 55℃
Storage temperature-40 - 70℃
Work humidity10% to 90%
Storage humidity10% to 90%
WeightProduct Weight0.7KG
Packing Weight1.2KG
Jumbo Frame
9K
MAC table size
8K
Flash size
16MB
DDR3 size
128MB
Power
AC100-240V/50-60Hz
Power consumption

Dimention(W*D*Hmm)
200*120*45mm
Certification compliance
FCC CE ROHS
