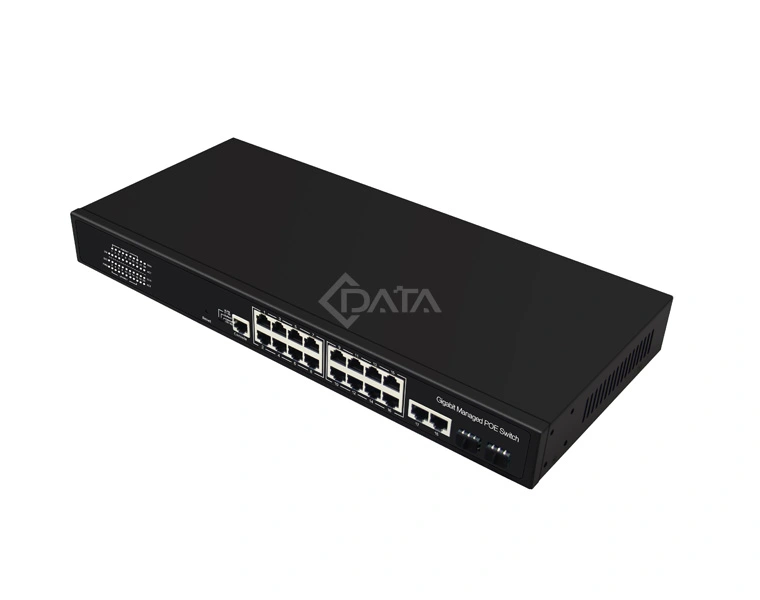

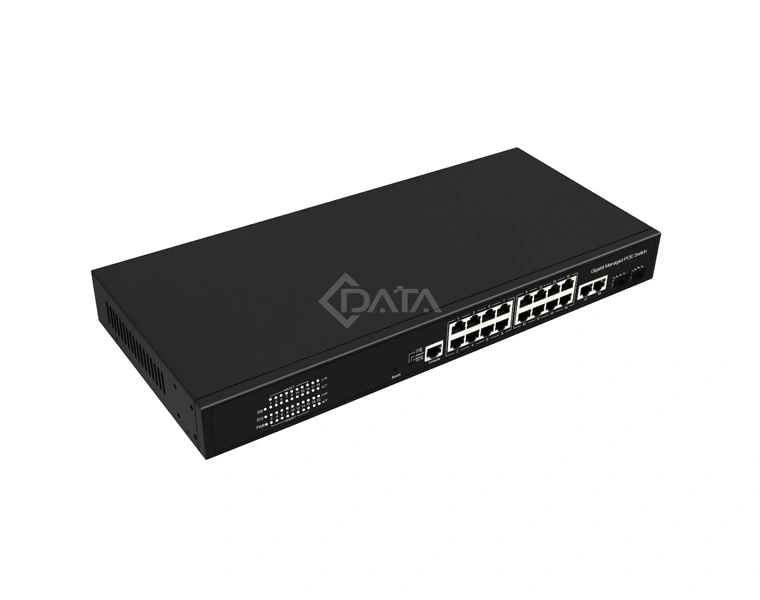

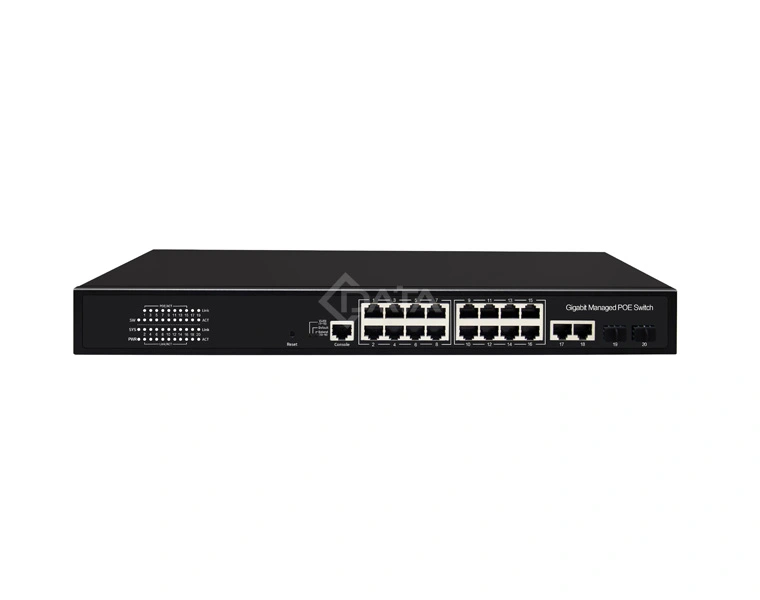

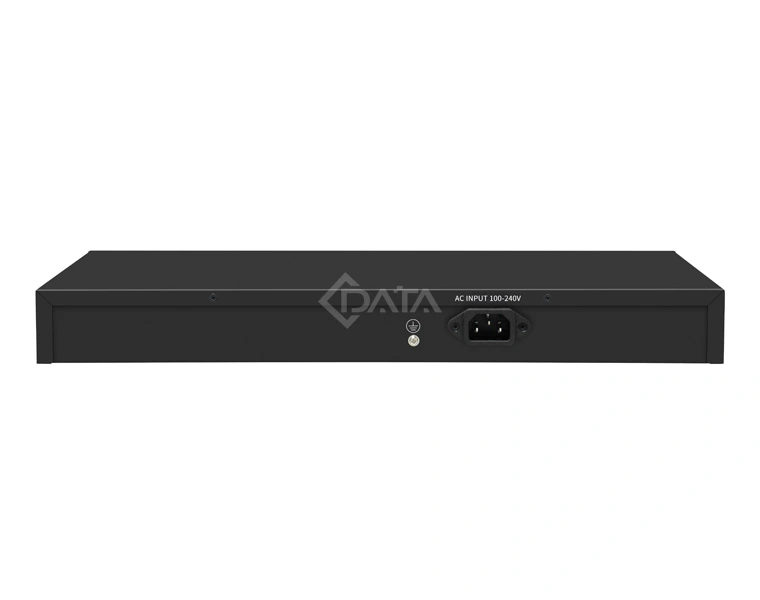

CS3164GS-POE
L2 Managed Ethernet PoE Switch 16GE + 2SFP + 2GE

CS3164GS-POE is a full Gigabit Layer 2 Managed PoE Ethernet Switch. It provides 16 Gigabit ports, 2 Gigabit and 2 SFP Uplink ports, which can meet the requirements of cost-effective Gigabit access or convergence network. It adopts storage-forwarding and dynamic memory allocation technology, which makes sure each port can work in linear forwarding way. It complies with IEEE802.3 AF/AT standard and can detect the ends automatically. The product has abundant L2 features such as VLAN, LACP, QoS, ACL, and is widely used in the access of enterprise networks and campus networks. It provides the users with a high-performance, easy-to-manage, easy-to-expand, and low-cost solution when it comes to Gigabit to desktop solutions.

Technical Specifications

Item

CS3164GS-POE

Specifications
16*RJ45 PoE + 2*RJ45 + 2*1000M SFP
Downlink ports
16*10/100/1000MBASE-T  RJ45
Uplink ports
2* 1000M SFP
2*1000M RJ45
Console port
1 pcs
USB port

Switching capability
40Gbps
Packets switching capability
29.76Mpps
Switching method
Storage forwarding
LED light
PWR, SYS, PoE, Link/ACT
PoE
Max Power:200W(Optional 300W),port MAX 30W
Enviroment parametersWork temperature-15 - to 55℃
Storage temperature-40 - 70℃
Work humidity10% to 90%
Storage humidity10% to 90%
WeightProduct Weight2.7KG
Packing Weight3.2KG
Jumbo Frame
9K
MAC table size
8K
Flash size
16MB
DDR3 size
128MB
Power
AC100-240V/50-60Hz
Power consumption

Dimention(W*D*Hmm)
440*205*44mm
Certification compliance
FCC CE ROHS
