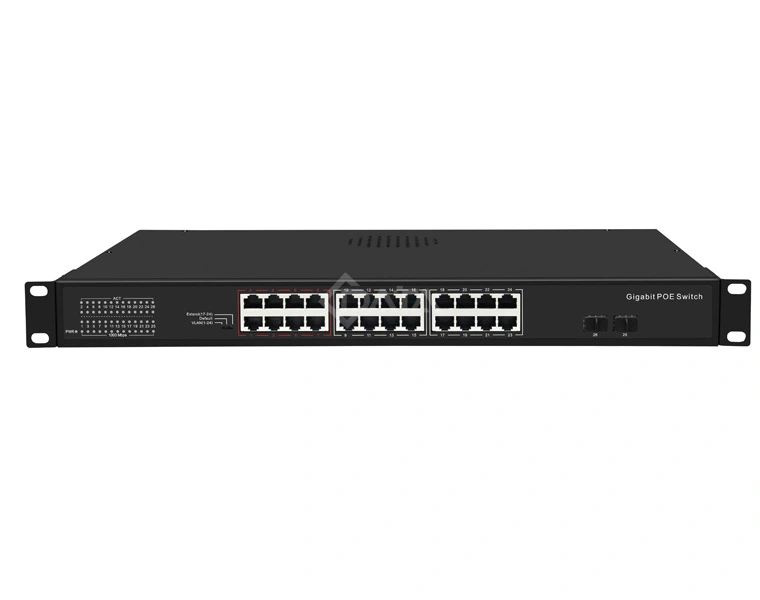

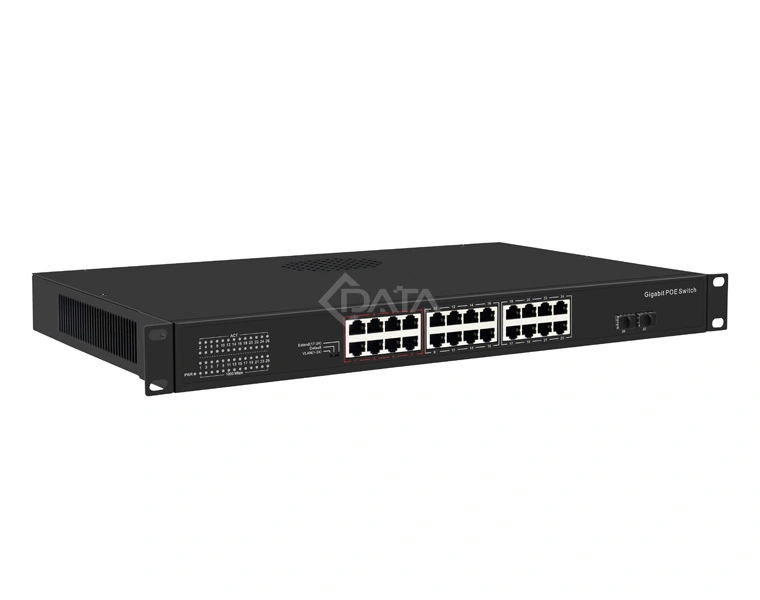

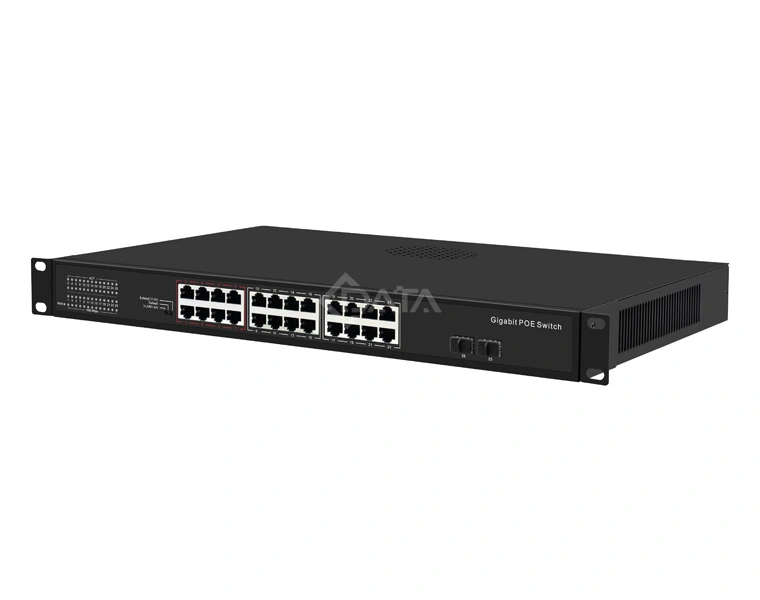

The PoE switch provides power and data from a single point, using Power over Ethernet (PoE) over a single Cat-5 cable. It can be used for any 10/100/1000Mbps link and supply industry-standard IEEE 802.3af/at power. Advanced auto-sensing algorithm gives power to 802.3af/at end devices, In addition, the PoE switch automatically determines PoE requirements, speed, duplex, and cable type using Auto Uplink. Easy to operate and reliable.
The PoE switch is ideal for powering PoE devices such as IP cameras, WLAN access point, IP phones, office access control systems, and other PD devices and offers a line of high quality products that provide a total solution for Ethernet application in different environments.
| Item | CS2242GS-POE | |
| Specifications | 24*RJ45 PoE + 2*1000M SFP | |
| Downlink ports | 24*10/100/1000BASE-T RJ45 | |
| Uplink ports | 2*1000M SFP | |
| Switching capability | 52Gbps | |
| Packets switching capability | 38.68Mpps | |
| Packet buffer | ||
| Switching method | Storage forwarding | |
| LED light | PWR(power supply) | ACT（Link&Data） |
| 1000Mbps（1000M Link） | ||
| SW(DIP) | ||
| 1-6 Green(Link&Data) | ||
| MAC table size | 8K | |
| Jumbo frame | ||

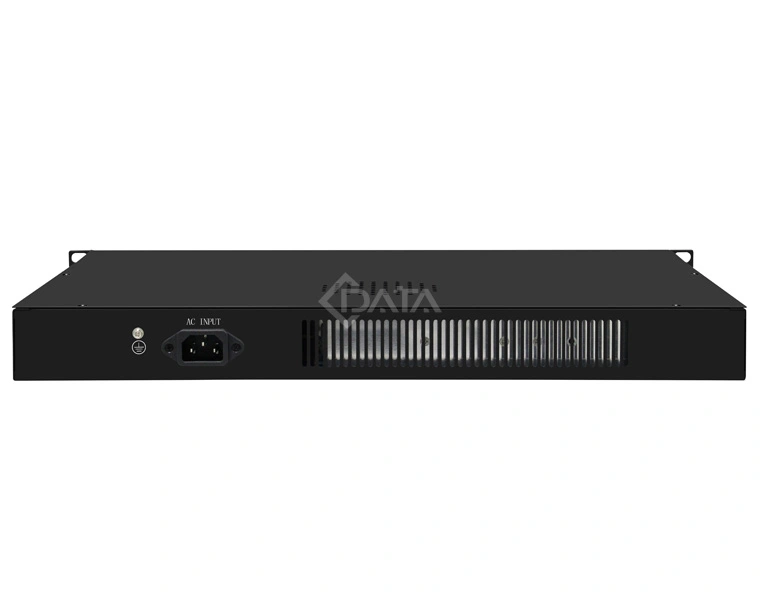

| Input Power | Input Voltage | Input: 110-240V AC, 50/60Hz |
| Power supply | ||
| PoE Power | Max Power:300W（ Optional 400W) | |
| PoE Power Supply: 1/2(+),3/6(-) | ||
| PoE Standard: IEEE802.3af/at | ||
| Max. 30W output of single PoE port | ||
| Enviroment parameters | Work temperature | -10 - to 55℃ |
| Storage temperature | -40 - 70℃ | |
| Work humidity | 10% to 95% | |
| Storage humidity | 10% to 95% | |
| Dimention（W*D*Hmm） | 445*285*45mm | |
| Weight | N.W:3.0Kg G.W:3.7Kg | |
| Certification compliance | FCC CE ROHS | |
| Installation | Rack/ Desktop |
