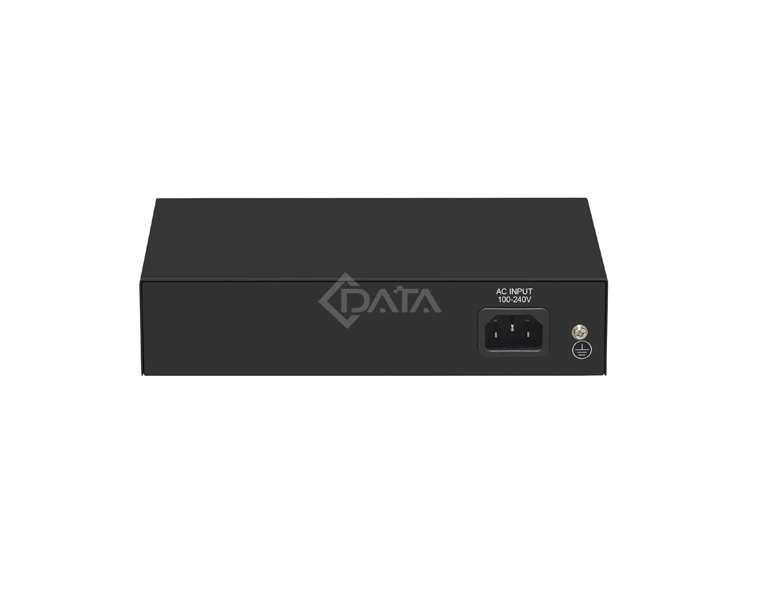

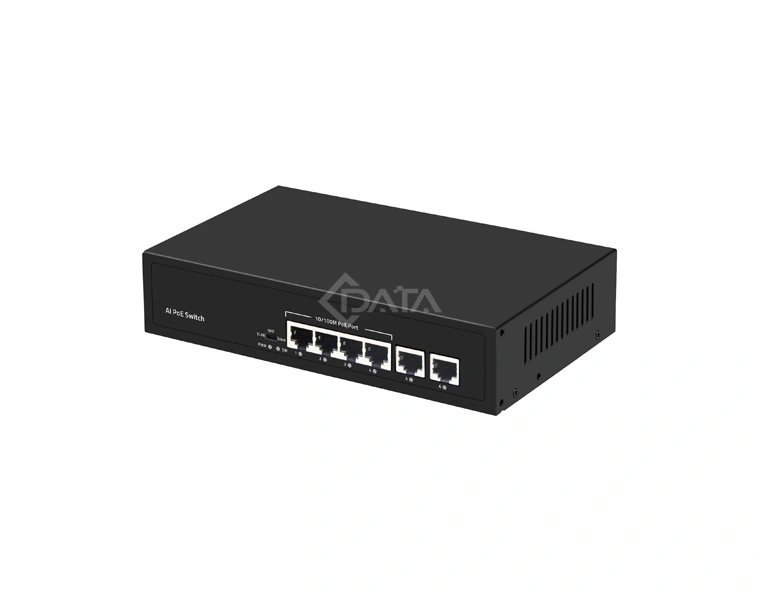

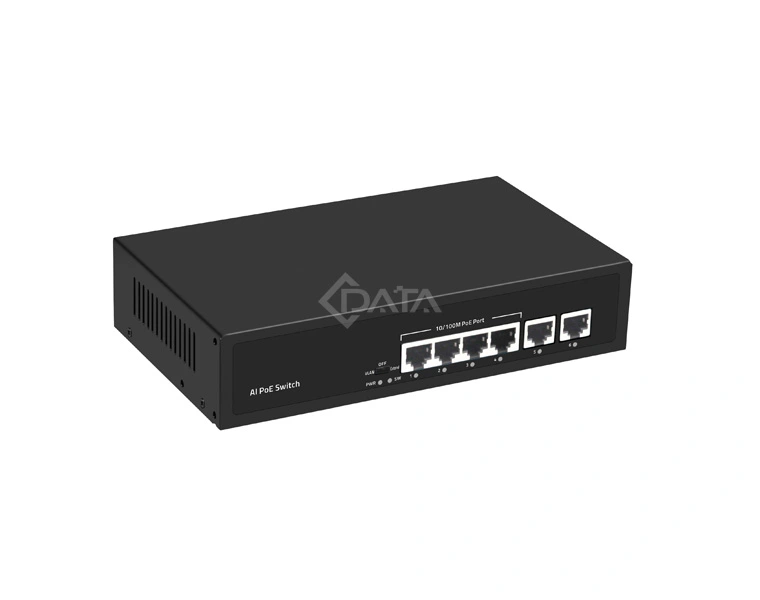

CS1042E-POE
Unmanaged Ethernet PoE Switch 4FE + 2FE

6-Ports 100M Ethernet Power Switch (PoE Switch), using high-quality high-speed network IC and the most stable PoE chip, PoE Port support 802.3af and 802.3at standard both, this series of PoE Switch can be 10/100M Ethernet. The network provides a seamless connection, and the PoE power port can automatically detect and power the powered devices that comply with the IEEE802.3af or IEEE802.3at standards. The non-PoE device intelligently detects no power and only transmits data.

Technical Specifications

Item

CS1042E-POE

Specifications
4*RJ45 PoE + 2*100M RJ45
Downlink ports
4*10/100BASE-T PoE+ RJ45
Uplink ports
2*10/100BASE-T  RJ45
Switching capability
1.2Gbps
Packets switching capability
0.8924Mpps
Packet buffer
448K
Switching method
Storage forwarding
LED lightPWR(power supply)Lighting:Powered
Un-Light:No Power
SW(DIP)Lighting:VLAN
Un-Light:Default
Flashing:Extend
1-6 Green(Link&Data)Lighting:Connecting
Flashing:Data Transmit
Un-Light:Disconnect
MAC table size
2K
Jumbo frame
2Kbytes
Input PowerInput VoltageAC 100-240 V
Power supply52V 1.25A
PoE Power
15.4W per port(IEEE802.3af)

30W per port(IEEE802.3at)

Max Power:65W


Enviroment parametersWork temperature-20 - to 50℃
Storage temperature-40 - 85℃
Work humidity10% to 90%
Storage humidity5% to 90%
Dimention(W*D*Hmm)
200*118*44mm
Weight
N.W:0.6Kg  G.W:0.9Kg
Certification compliance
FCC CE ROHS
Installation
