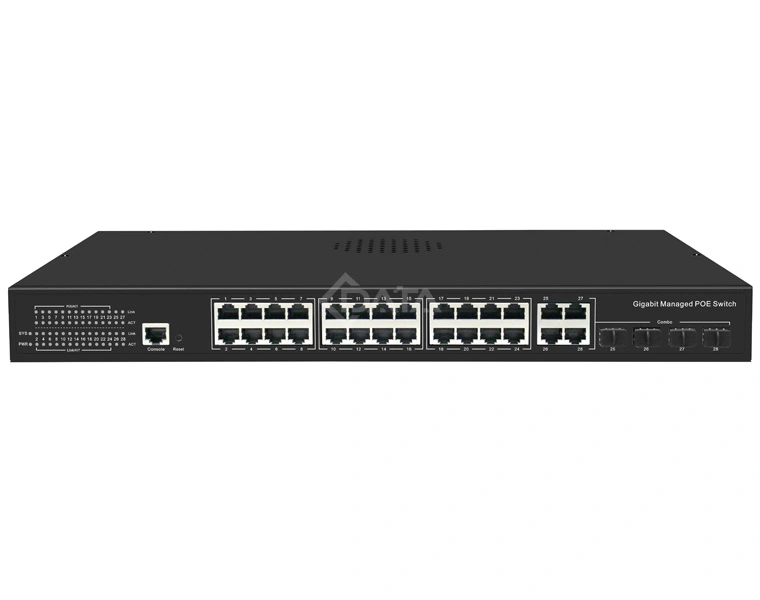

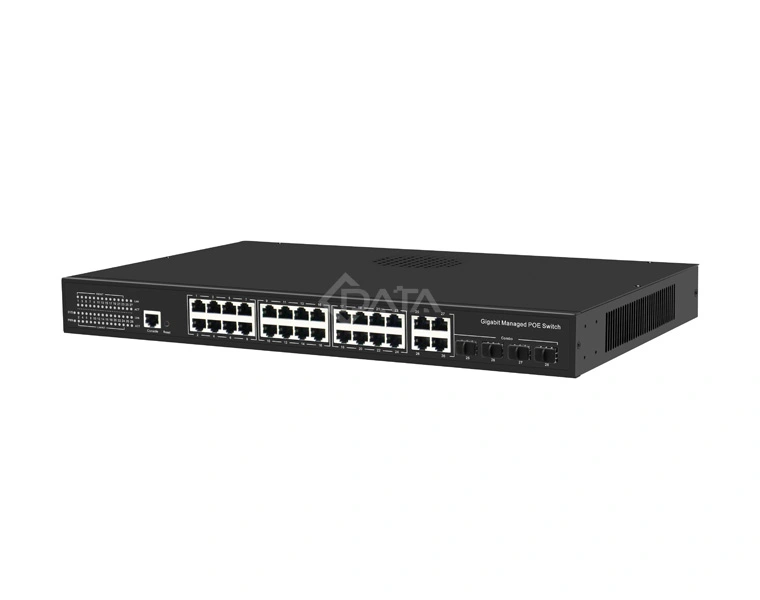

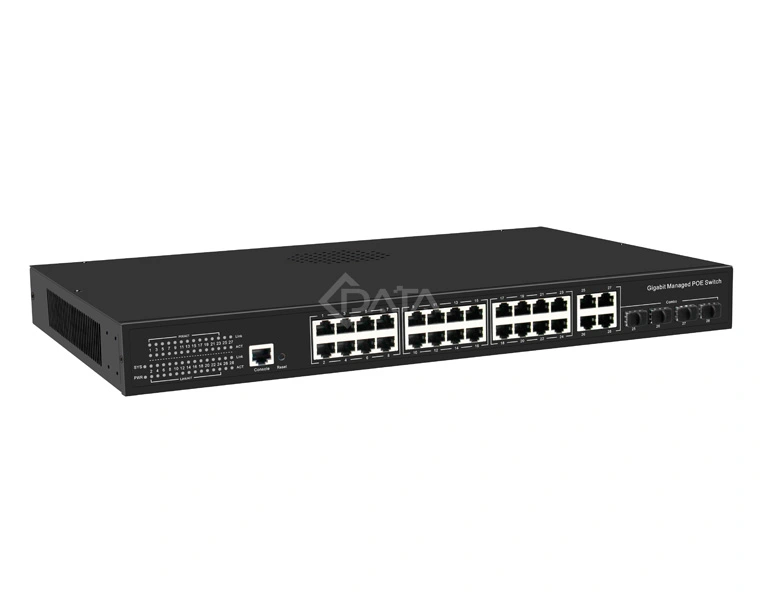

CS3244GC-POE is a 28-ports Gigabit Managed POE Switch is a Green Energy-Saving POE Switch independently. It adopts High-Quality and High-Speed Network IC and the most stable POE Chip. The POE port meets the IEEE802.3af or IEEE802.3at standard. This model can provide seamless connection for 10/100/1000M Ethernet, and the POE power port can automatically detect and power the powered devices that comply with the IEEE802.3af or IEEE802.3at standards. The Non-POE devices are forcibly powered and only transmit data.
| Item | CS3244GC-POE | |
| Specifications | 24*RJ45 PoE + 4*1000M SFP combo | |
| Downlink ports | 24*10/100/1000BASE-T RJ45 | |
| Uplink ports | 4*SFP Combo | |
| Console port | 1 pcs | |
| USB port | ||
| Switching capability | 56Gbps | |
| Packets switching capability | 41.7Mpps | |
| Switching method | Storage forwarding | |
| LED light | power,ports,sys | |
| PoE | Max Power:300W（Optional：400W),port MAX 30W | |
| Enviroment parameters | Work temperature | -20 - to 50℃ |
| Storage temperature | -40 - 85℃ | |
| Work humidity | 10% to 90% | |
| Storage humidity | 10% to 95% | |
| Weight | Product Weight | 3.9KG |
| Packing Weight | 4.6KG | |
| Jumbo Frame | 9.6Kbytes | |
| MAC table size | 8K | |
| Flash size | 16MB | |
| DDR3 size | 128MB | |
| Power | AC100～240V | |
| Power consumption | Full load <= 36W | |
| Dimention（W*D*Hmm） | 440*280*44mm | |
| Certification compliance | FCC CE ROHS |
