FT501GW-A20X is a second generation of FTTH type OTT+ONU+Wi-Fi three in one smart terminal developed by C-DATA. The ONU Part supports EPON and GPON two modes access. The ONU automatically switches into the corresponding PON mode by identifying the local OLT mode to complete GPON or EPON adaptive access. The OTT Part adopts amlogic latest chipset (S905Y4), ultra low power consumption, high cost performance.
FT501GW-A20X can support live broadcast, VOD and broadband convergence services in one integrated equipment. It provides a perfect terminal solution and future-oriented service supporting capabilities for FTTH deployment.
| Item | OpticMedia M2 (FT501GW-A20X) | |

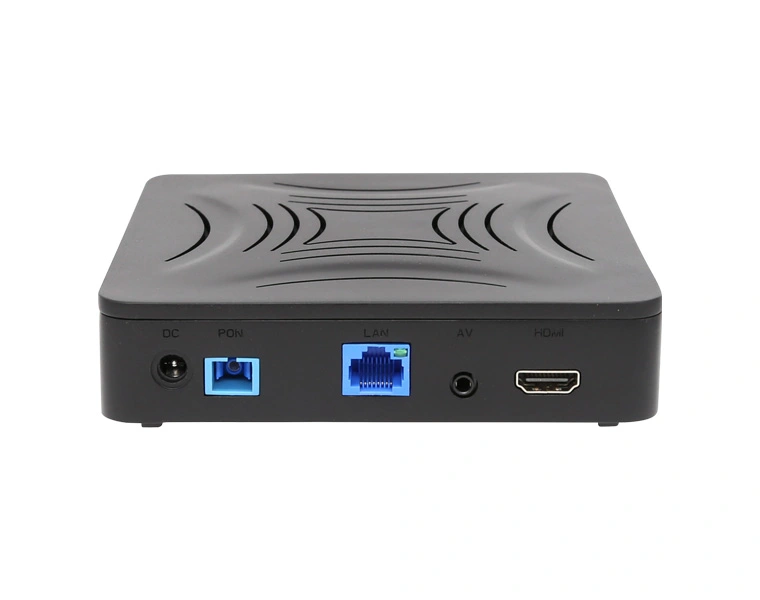

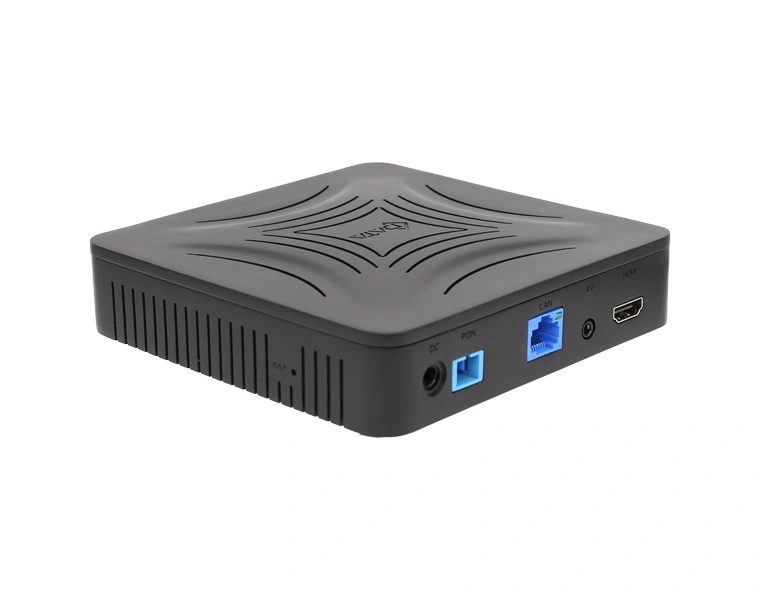

| Specifications | 1*xPON + 1*GE RJ45 + 1*HDMI + Wi-Fi | |
| GPON/EPON Port | SC/APC single mode single fiber | |
| GPON | FSAN G.984.2 standard, Class B+ | |
| EPON | 1000BASE-PX20+ symmetric | |
| GPON | 2.488Gbps/1.244Gbps downstream/upstream | |
| EPON | 1.25Gbps downstream/upstream | |
| Wavelength | Transmit: 1310nm Receiver: 1490nm | |
| Receiving sensitivity | GPON：-28dBm EPON：-27dBm | |
| Saturated power | GPON：-8dBm EPON：-3dBm | |
| Transmitting power | GPON：0.5～5dBm EPON:0～4dBm | |
| User Port(LAN) | 1*10/100/1000 Mbps Auto-negotiation RJ45ports | |
| Full Duplex / Half-Duplex | ||
| RJ45, Auto-MDI/MDI-X | ||
| Transmission Distance 100 Meter | ||

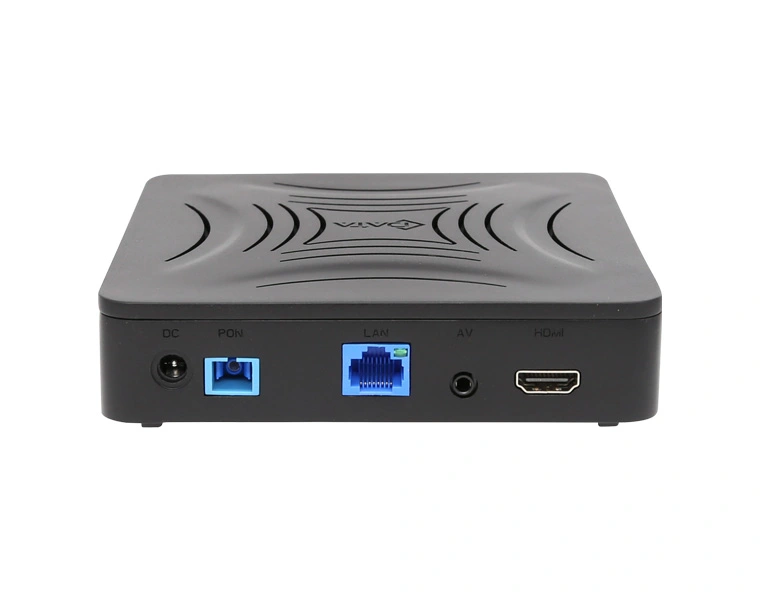

| User Port(HDMI) | 1*HDMI Type A | |
| Transmission Distance 20 Meter | ||

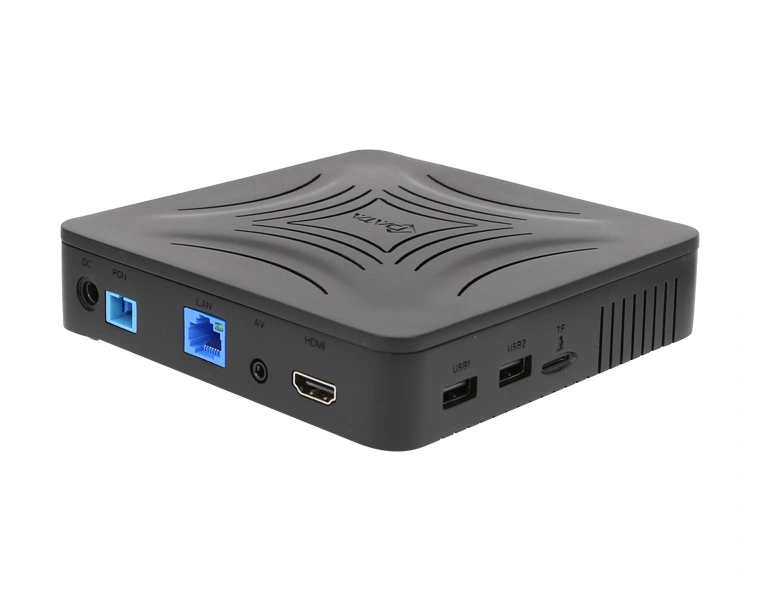

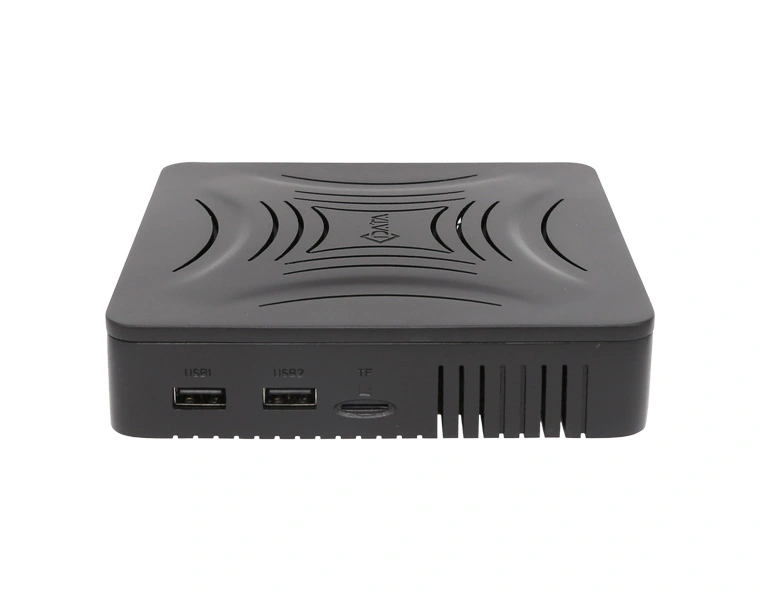

| User Port(USB) | 2*USB2.0 Type A HOST | |
| Transmission Distance 5 Meter | ||
| User Port(AV) | 1*3.5mm AV port | |
| User Port(TF Card) | Up to 32GB capacity | |

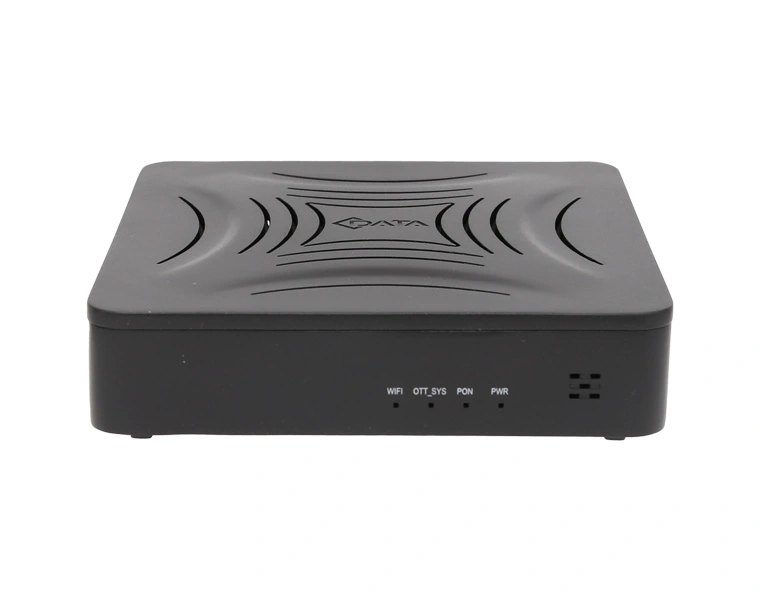

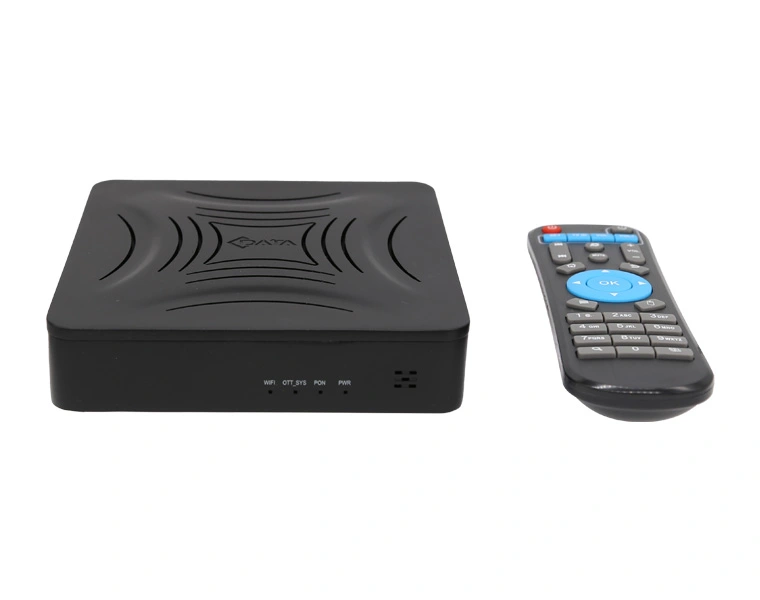

| Indicators | PWR / PON / OTT_SYS/Wi-Fi | |
| Power | External 12V/1.5A DC power supply adapter | |
| Power consumption: <8W | ||
| WIFI performance parameters | IEEE802.11b/g/n/ac(2.4G) | |
| Max rate: 300M(2.4G) | ||
| Antenna gain：3dBi | ||
| Max TX power: 2.4G：17dBm | ||
| Dimension and Weight | Item Dimension | 135mm(L) x135mm(W) x32mm (H) |
| Item weight | about 300g | |
| Environmental Specifications | Operating temperature | 0 to 40ºC |
| Operating humidity | 10% to 90%(Non-condensing) |
