CD5204-Bxx-M410
EOC Slave with 4FE

Name: CD5204-Bxx-M410
Brand: Shenzhen C-Data Technology Co., Ltd.

CD5204-Bxx-M410 series is the EOC slave based on HomePlug AV solution for Ethernet access over coax. It works together with EOC master which is based on HomePlug AV solution as well to construct a two-layer Ethernet data transmission channel on CATV coax cable, provide the Ethernet access service based on the existing coax cable networking. CD5204-Bxx-M410 series is based the Mstar chipset solution, with high anti jamming capability OFDM technology. The 7.5-65MHz low frequency band is used for EOC signals. Built in high isolation filter as CATV RF and EOC signal mixer, the EOC signal and CATV signal in 87Mhz~1Ghz can run on one cable without interference. The PHY Layer speed is 600Mbps, the MAC Layer throughput is up to 320Mpbs.

 Download  Inquiry

Technical Specifications

Item		CD5204-Bxx-M410

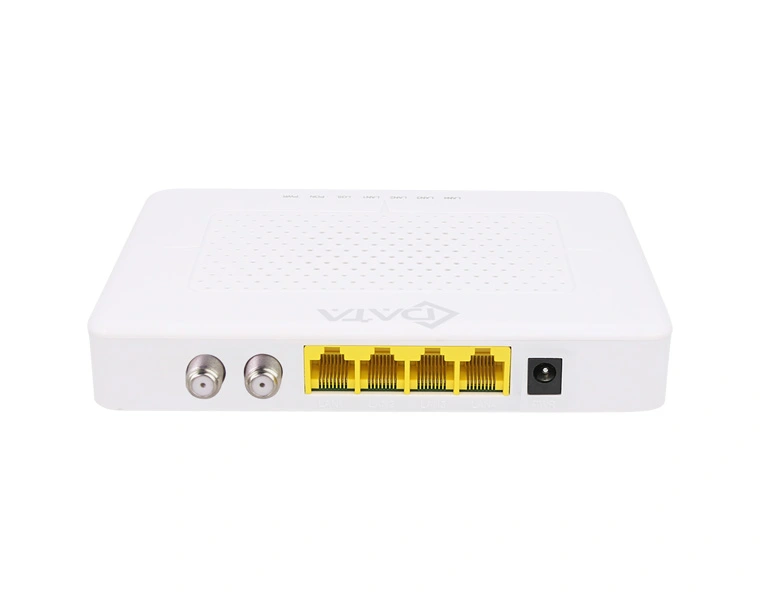

Specifications		4FE RJ45 + 1RF CATV(F-Type) + 1*Mixed input(F-Type)
Interface &indicator	RF interface	1TV(RF signal) OUTPUT, metric/inch F connector 1CABLE(MIX)INPUT, metric/inch F connector
	Ethernet interface	4*10/100M auto-negotiation, RJ45
	Power interface	1*DC12V power supply interface

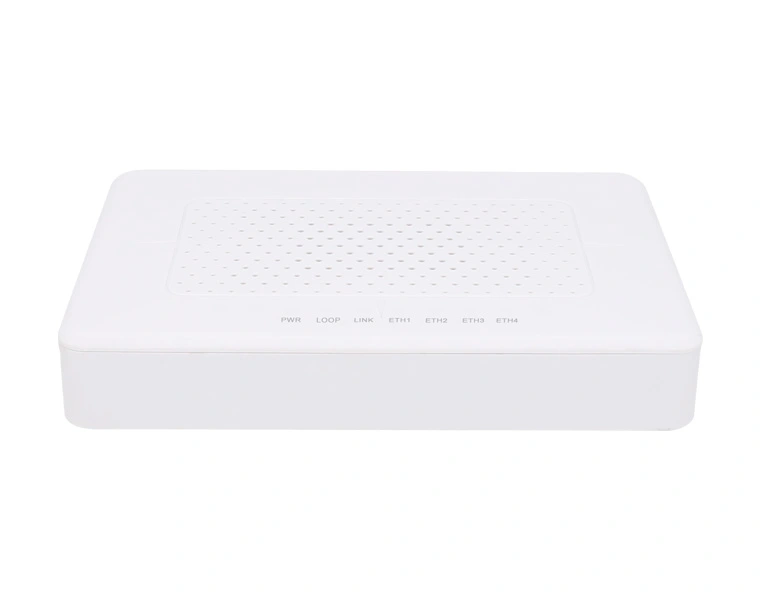

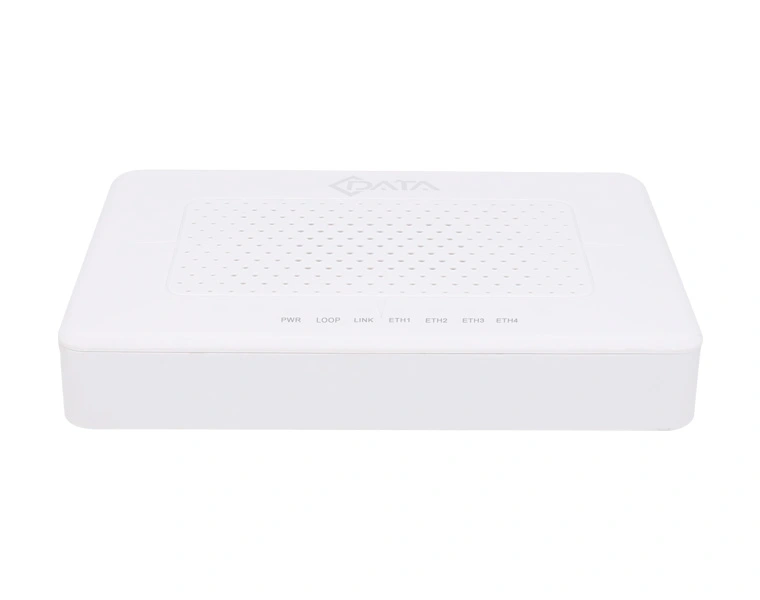

	LED indicators	1power indicator 1system indicator 1C*ABLE indicator LAN indicator(each Ethernet port has 1 indicator)
Performanceparameters	RF parameters	Frequency:7.5-65MHz Output level:110±5dBuv
	RF parameters	Receive sensibility:-65dB Return loss:>16dB Output impedance:75Ω
	Transmission	PHY Layer:600Mbps Throughput on MAC Layer:320Mbps
	Modulation Mode	OFDM– 2690-carriers 4096/1024/256/64/16/8-QAM, QPSK, BPSK, ROBO
	Working Mode	TDMA/CSMA
	Encryption Mode	AES-128
Standard	EOC Standard	IEEE P1901(Draft) HomePlug AV
Standard	EthernetStandard	IEEE 802.3, IEEE 802.3x, IEEE 802.3u IEEE802.1P, IEEE802.1Q
Software	Network Management	WEB, CLI, SNMP
Software	Software Features	VLAN, QOS, Bandwidth Control, Broadcast stormlimitation
PhysicalFeatures	Power supply & Consumption	Power adapter:12VDC 0.5A Power consumption：<5W
	Dimension	160mm(L) x139.5mm(W) x 28.5mm (H)
	Weight	0.3kg
	EnvironmentAttribute	Work temperature：0～55℃ Stock temperature：-30～60℃ Work humidity：10%～90%, non-condensation Stock humidity：5%～95%, non-condensation
