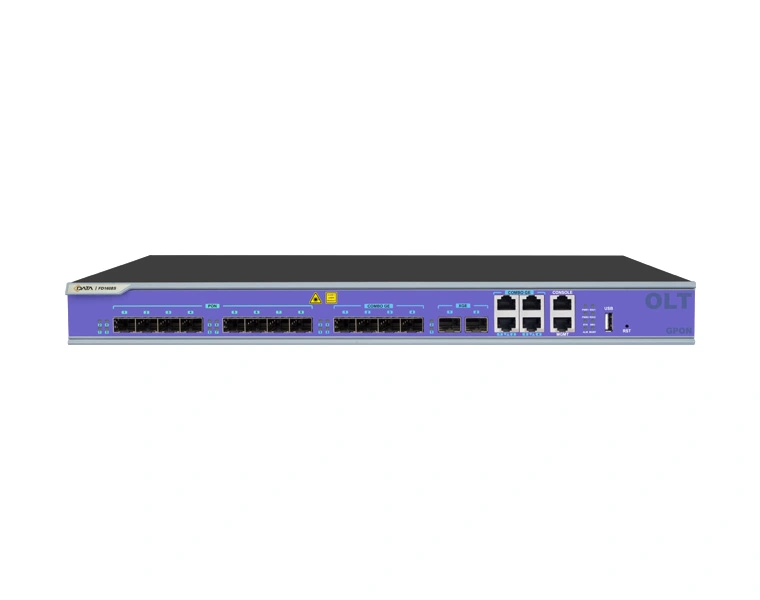

FD1608S-B1
8 PON PORTS GPON OLT

Name: FD1608S-B1
Brand: Shenzhen C-Data Technology Co., Ltd.

GPON OLT FD1608S-B1 completely meet relative standard of ITU G.984.x and FSAN, which is 1U rack-mounted device with 1 USB interface, 4 uplink GE ports, 4 uplink SFP ports, 2*10GE uplink ports and 8 GPON ports. Each GPON port supports the splitting ratio of 1:128, the GPON system supports up to 1024 terminal connections.

This product meets the requirements in device performance and size of compact server room as the product has high performance and compact size, which convenient and flexible to use, and is easy to deploy as well. Moreover, the product meets the requirements of promoting network performance, improving reliability and reducing power consumption in the perspective of access network and enterprise network and is applicable to three-in-one broadcast television network, FTTP (Fiber to the premise), video monitoring network, enterprise LAN (Local Area Network), internet of things and other network applications with a very high price/performance ratio。

 Download  Inquiry

Technical Specifications

ITEM		FD1608S-B1
Rack	Type	1U 19-inch standard box
Uplink Port	COMBO port	4 10/100/1000M auto-negotiation Ethernet ports
		4 SFP interfaces
	10-Gigabit	2 SFP+ interfaces
PON Port	Quantity	8
	Physical interface	SFP
	Interface type	GPON: ITU-TG.984.2 Class B+/Class C+
	Max splitting ratio	GPON: 1:128
Management Port		1 100/1000BASE-Tx out-band Ethernet port 1 CONSOLE local management port
USB Port		1 USB interface (It’s used to backup configuration, upgrade program and record log information)
PON Port attribute	Transmission distance	20KM
	Port rate	GPON: Downstream: 2.5Gbps Upstream: 1.25Gbps
	Wavelength	Forwarding: 1490nm Receiving: 1310nm
	Interface type	SC/UPC
	Fiber type	9/125μm SMF ((Single Mode Fiber)
	Light transmission power	Class B+：+1.5～+5dBm Class C+：+3～+7dBm
	Receiving sensitivity	Class B+：-28dBm Class C+：-30dBm
	Saturation power	Class B+：-8dBm Class C+：-12dBm
Network management method		Support CLI、SNMP、TELNET、SSH、WEB
Business capabilities		Support device log, device upgrade, device management, condition monitoring, configuration management, and user management Layer 2 switching configuration management: Like port management, VLAN, RSTP, IGMP, ACL, QOS and so on. PON function configuration management: Like OLT authentication, DBA template, service template, line template and so on. Layer 3 function: support static routing, dhcp-relay and vlanif configuration.
Backplane Bandwidth		78G
Size		44044276mm
Weight		4.50Kg
Power supply	220VAC	AC: 100V～240V，47/63Hz
	-48DC	DC:-40V～-72V
	BBU (Backup Battery Unit)	DC: 11V～14V Function: When the regular power supply is cut off, it can be switched to the backup power supply, and when the regular power supply resumes, it will switch back to the regular power supply
Maximum power		78W
Working environment	Working temperature	-15～50℃
	Storage temperature	-40～85℃
	Humidity	5～90% (Non-condensing)
