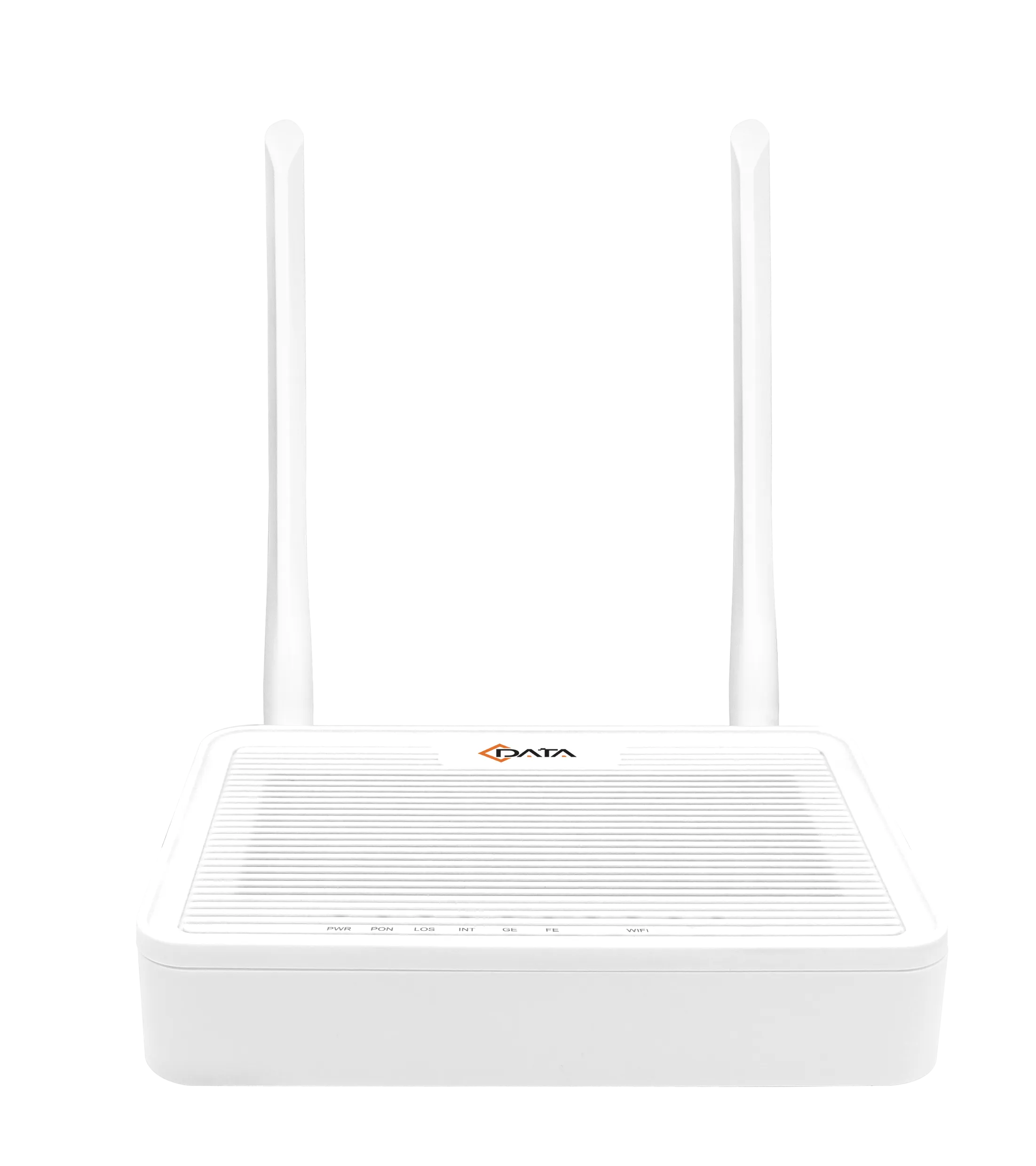

FD512XW-R470 is an indoor fiber broadband access terminal. The device provides one GPON / EPON adaptive optical port and supports XPON mode. It can be used in connection with our company FD16 series GPON OLT or FD11 / 12 series EPON OLT. It can also interconnect with the mainstream manufacture (Huawei / ZTE / Fiberhome) GPON or EPON OLT to provide users with Internet, WIFI services based on GPON and EPON technology.
Mechanics | |
Dimensions | 160mm(L)*112mm(W)*30mm(W)(Antennas are not included) |
Weight | About 300g |

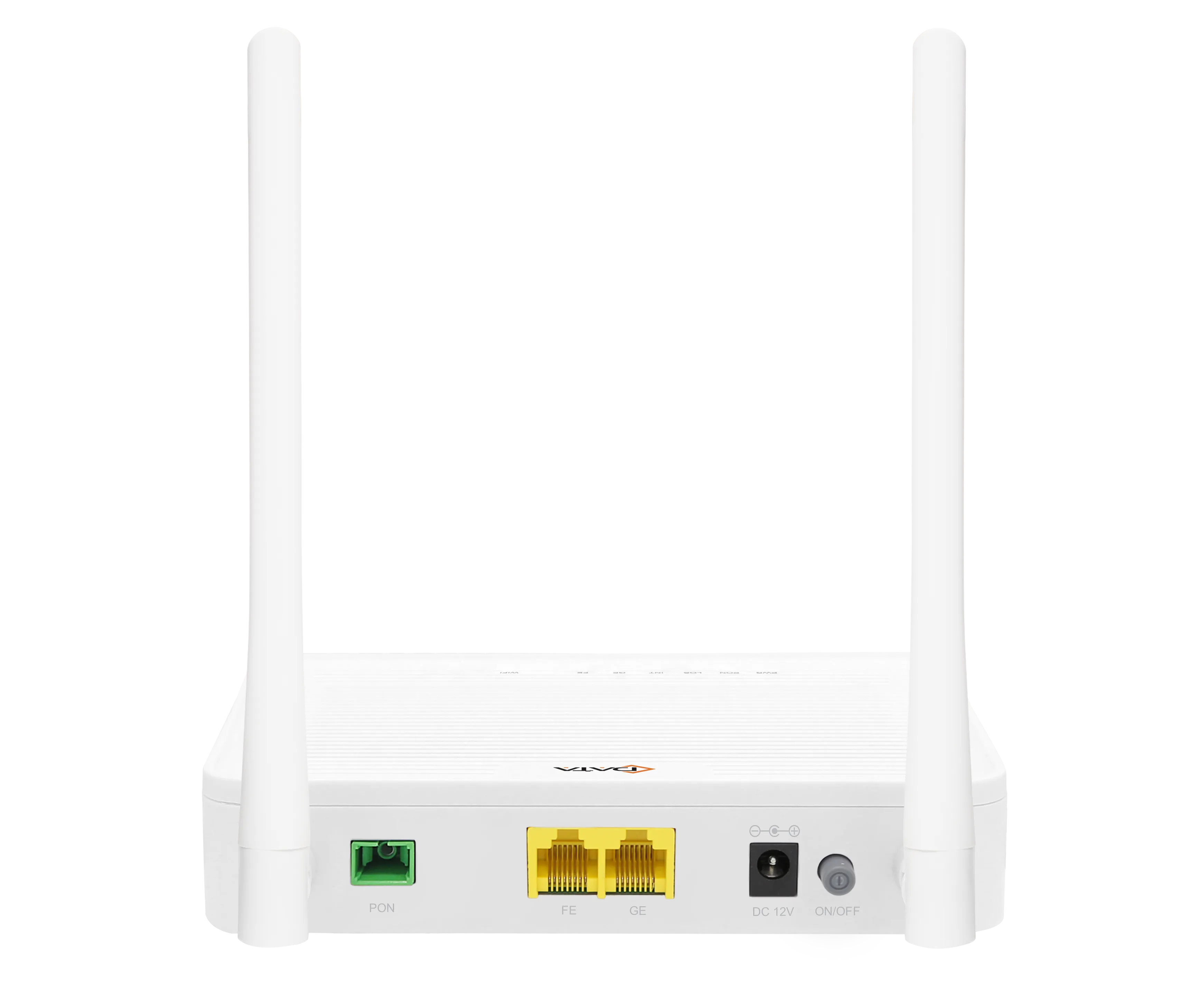

Hardware | |||
User Port (LAN) | RJ-45 connector | ||
1*10/100/1000Mbps and 1*10/100Mbps adaptive Ethernet port | |||
Full/half duplex | |||
Auto MDI/MDI-X | |||
Indicators | PWR / PON / LOS / GE / FE / INT /WIFI | ||
PON Port | Mode | EPON：1000BASE-PX20+ symmetric GPON：FSAN G.984.2 standard,Class B+ | |
Rate | EPON：1.25Gbps downstream/upstream GPON：2.488Gbps/1.244Gbps downstream/upstream | ||
Wavelength | Transmit: 1310nm | Receiver: 1490nm | |
Receiving sensitivity | EPON：-27dBm GPON：-28dBm | ||
Saturated power | EPON：-3dBm GPON：-8dBm | ||
Transmitting power | EPON:0～4dBm GPON：0.5～5dBm | ||
WIFI | |||
IEEE802.11b/g/n | |||
Max rate: 300M | |||
MAX TX power :17dBm |
Environment | |
Working temperature | 0 to 40ºC |
Operating humidity | 10% ~ 90% (Non-condensing) |
Power | |
External 12VDC/0.5A power supply adapter | |
Power consumption | ≤6.5W |
