FD712GD-R460
2GE+CATV+2WIFI XPON ONU

Name: FD712GD-R460
Brand: Shenzhen C-Data Technology Co., Ltd.

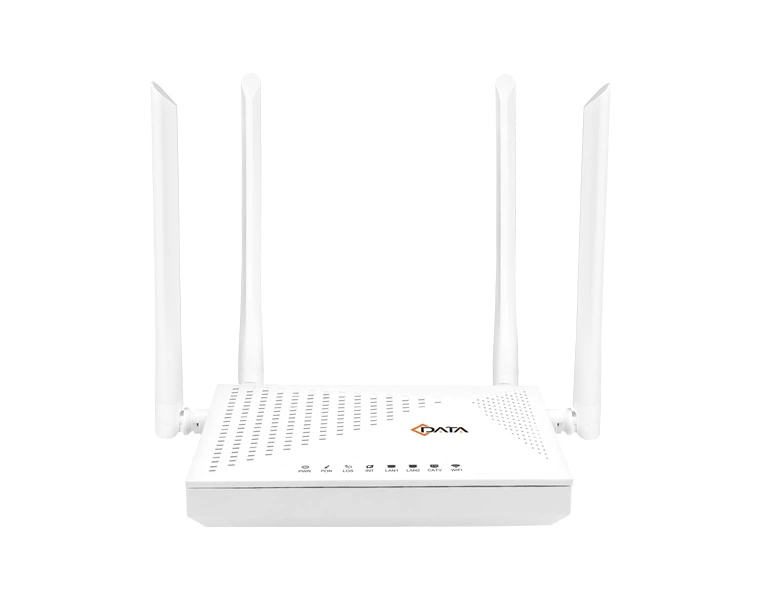

FD712GD-R460 is an indoor fiber broadband access terminal. The device provides one GPON / EPON adaptive optical port and supports XPON mode. It can be used in connection with C-Data EPON, GPON and XGSPON OLT. It can also interconnect with the mainstream manufacture (Huawei / ZTE / Fiberhome) GPON or EPON OLT to provide users with Internet, WIFI and CATV services based on GPON and EPON technology.

 Download  Inquiry

Technical Specifications

Mechanics
Dimensions	214139.532mm
Weight	About 300g

Hardware

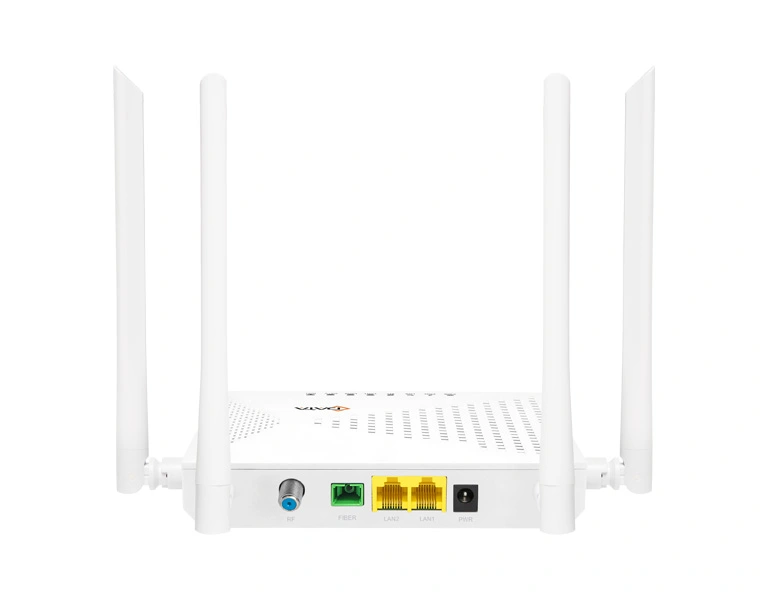

User Port (LAN)		RJ-45 connector
		2 *10/100/1000Mbps adaptive Ethernet port
		Full/half duplex
		Auto MDI/MDI-X
Indicators		PWR / PON / LOS / LAN / INT / CATV / WIFI
PON Port	PON Mode	EPON：1000BASE-PX20+ symmetric GPON：FSAN G.984.2 standard,Class B+
	PON Rate	EPON：1.25Gbps downstream/upstream GPON：2.488Gbps/1.244Gbps downstream/upstream
	Wavelength	Transmit: 1310nm	Receiver: 1490nm
	Receiving sensitivity	EPON：-27dBm GPON：-28dBm
	Saturated power	EPON：-3dBm GPON：-8dBm
	Transmitting power	EPON:0～4dBm GPON：0.5～5dBm

CATV（Input /Output port）
Wavelength: 1550nm
Input optical power: -18dBm～0dBm(with AGC)
RF frequency: 47MHz~1000MHz
RF output level: 78dBuV (@-12~-2dBm@85MHz) (with AGC)
RF output return loss: >12dB(with AGC)
RF impedance: 75Ω
