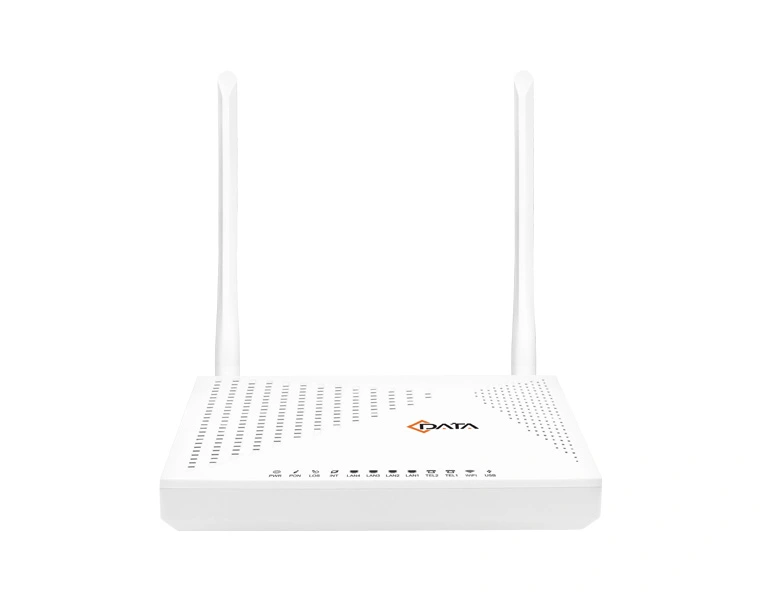

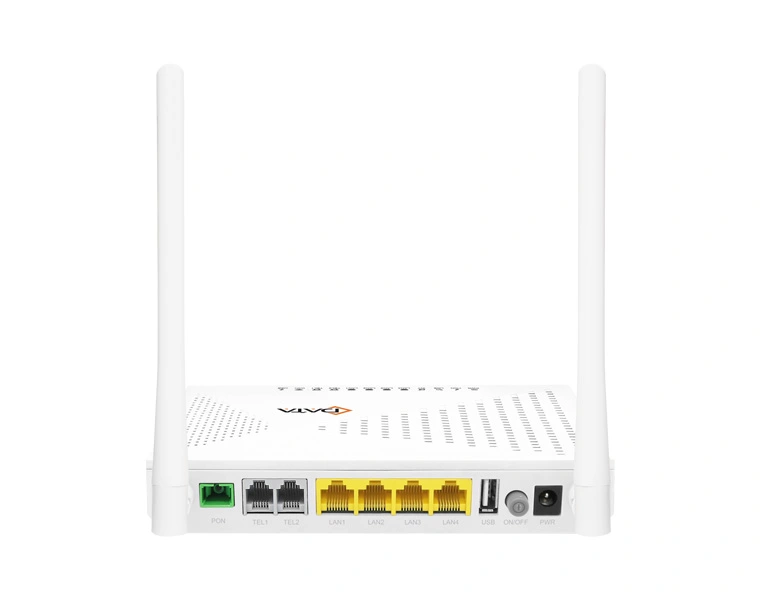

FD604GW-DX
4GE+2POTS+2WIFI XPON ONU

Name: FD604GW-DX
Brand: Shenzhen C-Data Technology Co., Ltd.

FD604GW-DX features high-performance forwarding capabilities to ensure excellent experience with VoIP and Internet. It fully meets the ITU-T technical standards and have good compatibility with third party OLT. It provides a perfect terminal solution and future-oriented service supporting capabilities for FTTH deployment.

FD604GW-DX integrate wireless function which meets 802.11 a/b/g/n/ac technical standards. At the same time, it also supports 2.4GHz/5GHz dual-band wireless signal. It has the characteristics of strong penetrating power and wide coverage. It can provide users with more efficient data transmission security.

 Download  Inquiry

Technical Specifications

Item		FD604GW-DX
Specifications		1xPON + 4GE RJ45 + 2*POTS + Wi-Fi
GPON/EPON Port		Single mode single fiber
	GPON	FSAN G.984.2 standard,Class B+
	EPON	1000BASE-PX20+ symmetric
	GPON	2.488Gbps/1.244Gbps downstream/upstream
	EPON	1.25Gbps downstream/upstream
	Wavelength	Transmit: 1310nm Receiver: 1490nm
	Receiving sensitivity	GPON：-28dBm EPON：-27dBm
	Saturated power	GPON：-8dBm EPON：-3dBm
	Transmitting power	GPON：0.5～5dBm EPON:0～4dBm
User Port(LAN)		RJ-45 connector
		4*10/100/1000Mbps adaptive Ethernet port
		Full/half duplex
		Auto MDI/MDI-X
User Port(POTS)		RJ-11 connector
		2*accounts
		SIP protocol
		TDMF
		G711U/G711A/G729/G722 encoding and decoding
WIFI performance parameters		IEEE802.11b/g/n(2.4G) IEEE802.11a/n/ac(5G)
	Max rate	300M(2.4G) 867Mbps(5G)
	MAX TX power	2.4G:17dBm 5G:17dBm
Indicators		PWR / PON / LOS / LAN / WIFI / USB / INT/ OPT/TEL
Power		External 12VDC/1.5A power supply adapter
Power		Power consumption:<13W
Dimension and Weight	Item Dimension	180mm(L) x 155mm(W) x 30mm(H)
Dimension and Weight	Item weight	0.317kg
Environmental Specifications	Operating temperature	0 to 40ºC
	Storage temperature	-40 to 85ºC
	Operating humidity	10% to 90%(Non-condensing)
