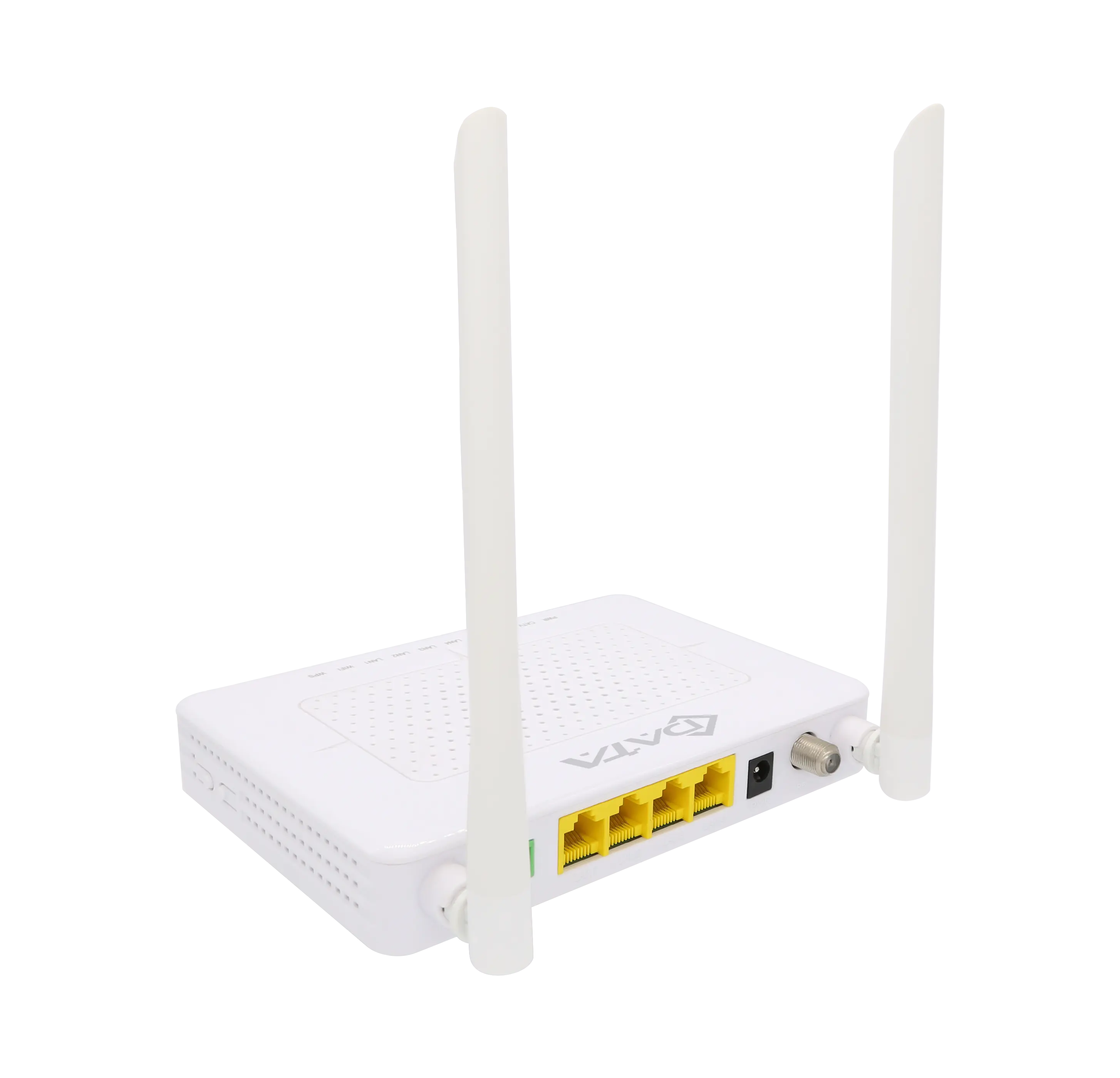

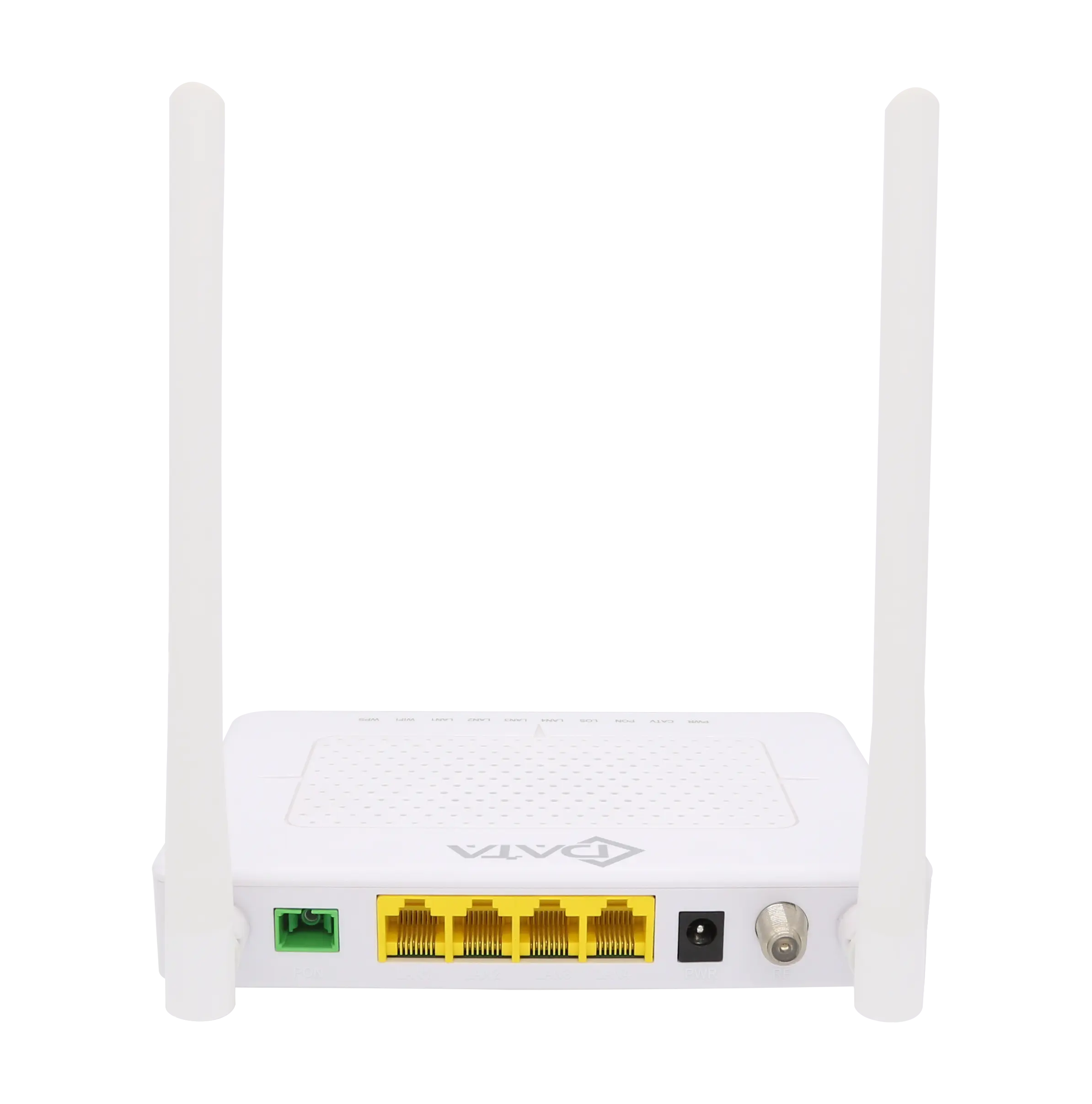

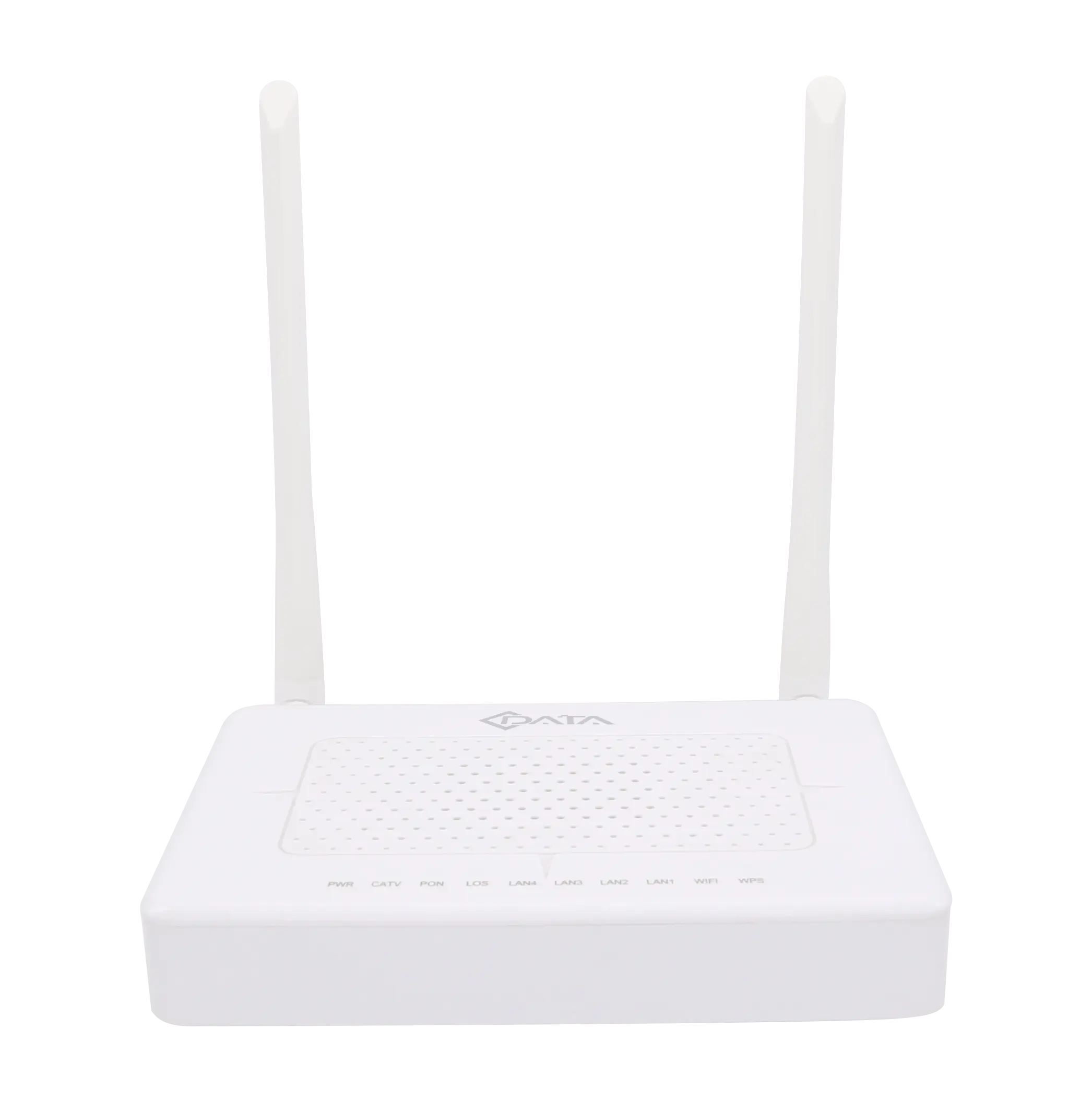

FD704GW-AX-R410 dual-mode ONU supports EPON and GPON two modes access. The ONU automatically switches into the corresponding PON mode by identifying the local OLT mode to complete GPON or EPON adaptive access.FD704GW-AX-R410 integrates wireless function which meets 802.11 b/g/n technical standards. it supports 2.4GHz wireless signal.The 2.4GHz transmission rate up to 300Mbps.
FD704GW-AX-R410 is fiber to the home multiple service access XPON ONT. It ’s based on the mature, stable, high cost performance XPON technology, gigabit Ethernet switching, WDM and HFC technology. It has a higher bandwidth, higher reliability, easy management and good quality of service (QoS) guarantee. It fully meets the ITU-T and IEEE technical standards and have good compatibility with third party OLT.
It adopts single fiber WDM technology with downlink wavelength 1550nm and 1490nm, uplink wavelength 1310nm . It only needs one-core fiber to transmit data and CATV service.
Dimension and Weight | |
Item Dimension | 160mm(L)*139.5mm(W)*28.5mm(H) |
Item weight | About 231g |
Hardware | |||
User Port (LAN) | 4*10/100/1000 M Auto-negotiation | ||
Full Duplex / Half-Duplex | |||
RJ45, Auto-MDI/MDI-X | |||
Transmission Distance 100 Meter | |||
Indicators | PWR / PON / LOS / LAN /CATV /WIFI | ||
GPON/EPON Port | Single mode single fiber | GPON：FSAN G.984.2 standard,Class B+ EPON：1000BASE-PX20+ symmetric GPON：2.488Gbps/1.244Gbps | |
downstream/upstream | EPON：1.25Gbps downstream/upstream | ||
Wavelength | Transmit: 1310nm | Receiver: 1490nm | |
Receiving sensitivity | GPON：-28dBm EPON：-27dBm | ||
Saturated power | GPON：-8dBm EPON：-3dBm | ||
Transmitting power | GPON: 0.5～5dBm EPON：0～4dBm | ||
CATV（Input /Output port） | |
Wavelength: 1550nm | |
Input optical power: -18dBm～0dBm(with AGC) | |
RF frequency: 47MHz~1000MHz | |
RF output level: 78dBuV (@-12~-2dBm@85MHz) (with AGC) | |
RF output return loss: >12dB(with AGC) | |
RF impedance: 75Ω | |
WIFI performance parameters |
IEEE802.11b/g/n(2.4G) |
Max rate: 300M(2.4G) |
MAX TX power 2.4G:17dBm |
Environmental Specifications | |
Working temperature | 0 to 40ºC |
Operating humidity | 10% ~ 90% (Non-condensing) |
Power | |
External 12V/0.5A DC power supply adapte | |
Operating humidity | <9W |
Software | |
Management | EPON :OAM / WEB / TR069 / Telnet GPON:OMCI / WEB / TR069 / Telnet |
L3 | IPv4/IPv6 Dual Stack NAT DHCP client/server PPPOE client/ Pass through Static and dynamic routing |
Switch | MAC address learning MAC address learning account limit Port isolation Port flow control Broadcast storm suppression VLAN transparent/tag/translate/trunk |
Multicast | IGMP V2 IGMP VLAN IGMP transparent/Snooping/Proxy |
Security | Firewall MAC address/URL filter Remote WEB/Telnet access control |
| Register | Auto-discovery/Link detection/Remote upgrade software Auto/MAC/SN/LOID+Password authentication |
