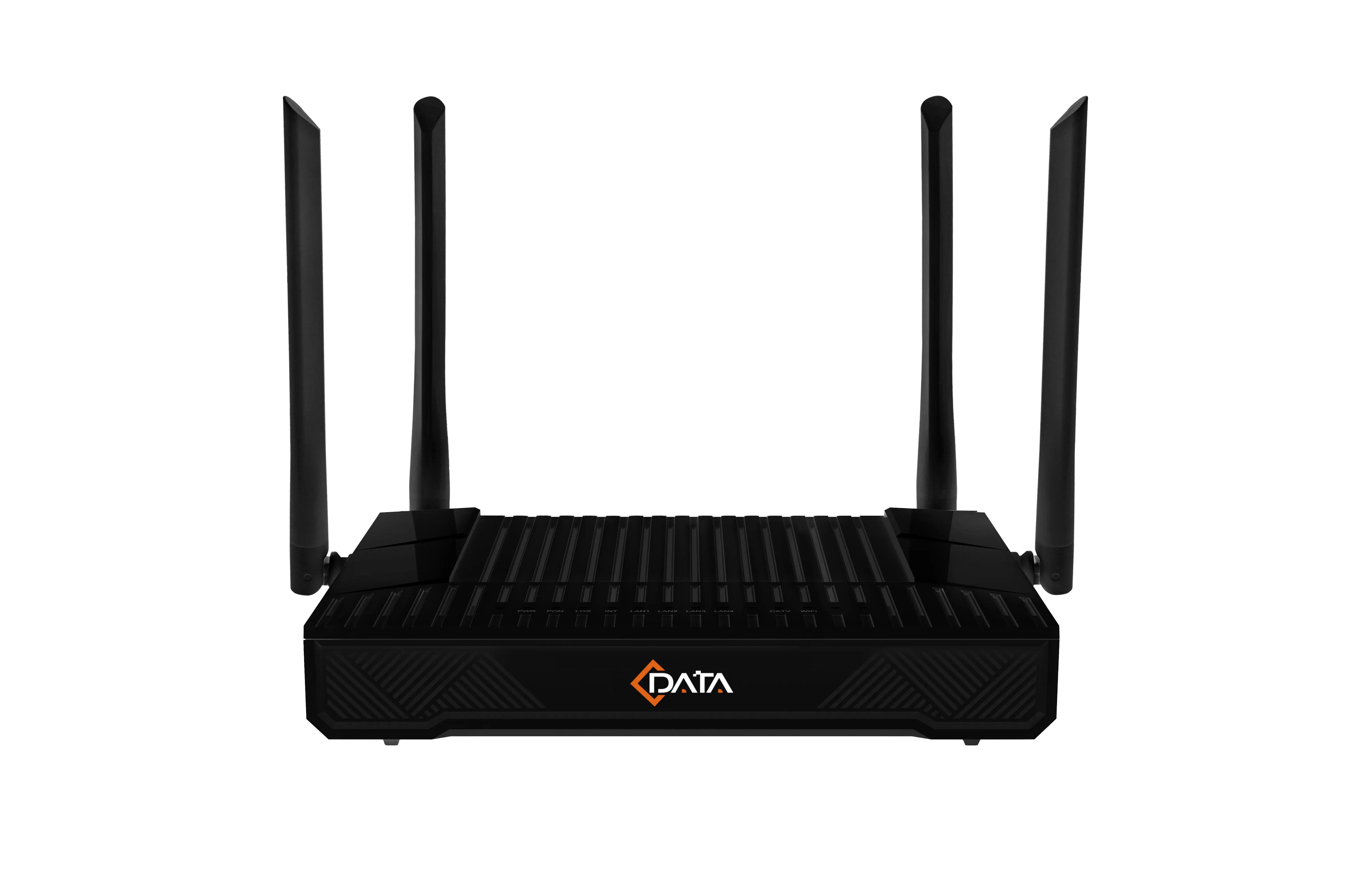

FD714GS3-R850
4GE+CATV+2WIFI(AX3000) XPON ONU

Name: FD714GS3-R850
Brand: Shenzhen C-Data Technology Co., Ltd.

FD714GS3-R850 is an indoor fiber broadband access terminal. The device provides one GPON / EPON adaptive optical port and supports XPON mode. It can be used in connection with our company FD16/17 series GPON OLT or FD12 / 13 series EPON OLT. It can also interconnect with the mainstream manufacture (Huawei / ZTE/ Fiberhome) GPON or EPON OLT to provide users with Internet, WIFI and CATV services based on GPON and EPON technology.

 Download  Inquiry

Technical Specifications

Mechanics
Dimensions	210mm135mm45mm
Weight	About 300g

Hardware
User Port (LAN)		RJ-45 connector
		4 *10/ 100/ 1000Mbps adaptive Ethernet port
		Full/half duplex
		Auto MDI/ MDI-X
Indicators		PWR / PON / LOS / LAN(1-4) / INT / CATV /WIFI
PON Port	PON Mode	EPON：1000BASE-PX20+ symmetric GPON：FSAN G.984.2 standard,Class B+
	PON Rate	EPON：1.25Gbps downstream/upstream GPON：2.488Gbps/1.244Gbps downstream/upstream
	Wavelength	Transmit: 1310nm	Receiver: 1490nm
	Receiving sensitivity	EPON：-27dBm GPON：-28dBm
	Saturated power	EPON：-3dBm GPON：-8dBm
	Transmitting power	EPON:0～4dBm GPON：0.5～5dBm

CATV Input Output port
Wavelength: 1550nm
Input optical power: -18dBm～0dBm(with AGC)
RF frequency: 47MHz~ 1000MHz
RF output level: 78dBuV (@-12~-2dBm@85MHz) (with AGC)
RF output return loss: >12dB(with AGC)
RF impedance: 75 Ω
