FD714TS3-R850s is WiFi6 XGSPON Gateway ONT,it support 802.11a/b/g/n/ac/ax standards over 2.4GHz and 5GHz,max speed can up to 3000Mpbs.
FD714TS3-R850s have a high reliability and provide quality of service guarantee, easy management, flexible expansion and networking. It fully meets the ITU-T technical standards and have good compatibility with third party OLT.
Technical Specifications
Mechanics | |
Dimensions | 210mm(L)*135mm(W)*45mm(H) |
Weight | About 300g |
Hardware | |||

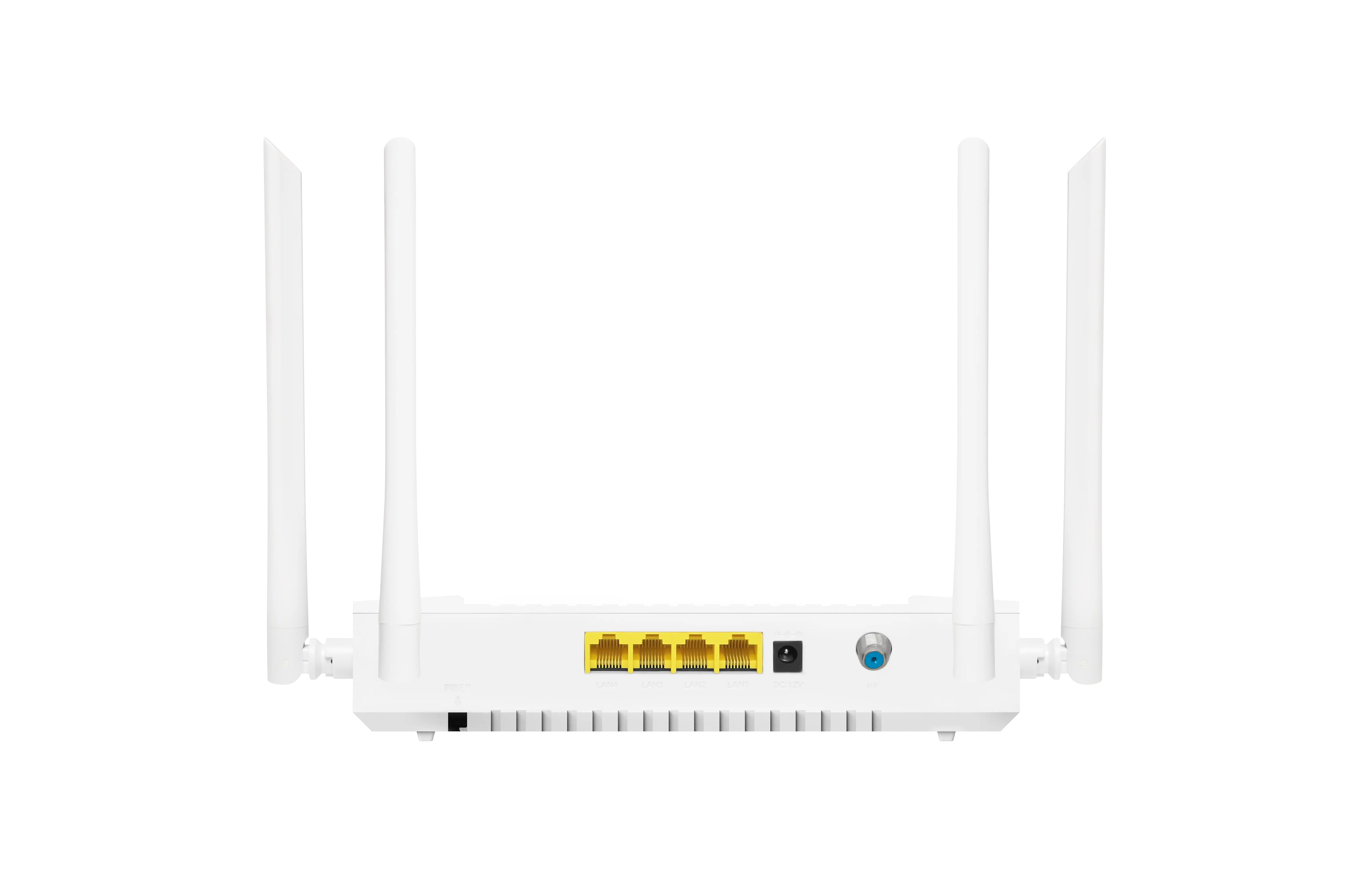

User Port (LAN) | RJ-45 connector | ||
4* 10/ 100/ 1000Mbps adaptive Ethernet port | |||
Full/half duplex | |||
Auto MDI/ MDI-X | |||
Indicators | PWR / PON / LOS / LAN1-4 / INT / WIFI / CATV | ||
PON Port | PON Mode | XGSPON：FSAN G.9807.1 standard | |
PON Rate | XGSPON：10Gbps/10Gbps downstream/upstream | ||
Wavelength | Transmit: 1270nm | Receiver: 1577nm | |
Receiving sensitivity | XGSPON：-28dBm | ||
Saturated power | XGSPON：-9dBm | ||
Average sending | XGSPON：+4～+9dBm | ||
| WIFI |
IEEE802.11b/g/n/ax(2.4G) IEEE802. 11a/n/ac/ax(5G) |
2.4G: 40Mhz bandwidth maximum rate 574Mbps 5G：160Mhz bandwidth maximum rate 2402Mbps Total wireless rate is 3000Mbps |
2.4G EIRP:22dBm / 5 G EIRP:21dBm |
CATV（Input /Output port） |
Wavelength: 1550nm |
Input optical power: -18dBm～0dBm(with AGC) |
RF frequency: 47MHz~ 1000MHz |
RF output level: 78dBuV (@-12~-2dBm@85MHz) (with AGC) |
RF output return loss: >12dB(with AGC) |
RF impedance: 75 Ω |
Environment | |
Working temperature | 0 to 40ºC |
Operating humidity | 10% ~ 90% (Non-condensing) |
Power | |
External 12VDC/2A power supply adapter | |
Power consumption | <18.9W |
