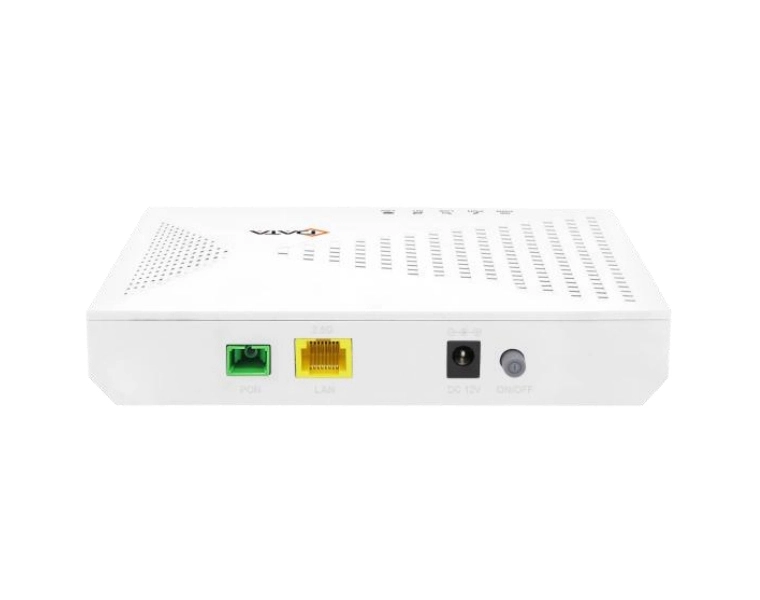

FD511TH-R460s
2.5GE XGSPON ONU

Name: FD511TH-R460s
Brand: Shenzhen C-Data Technology Co., Ltd.

FD511TH-R460s is an indoor fiber broadband access terminal.

It can be used in connection with our XGSPON OLT. It can also interconnect with the mainstream manufacture (Huawei / ZTE / Fiberhome) XGSPON OLT to provide users with Internet service based on XGSPON technology.

 Download  Inquiry

Technical Specifications

Mechanics
Dimensions	160mm(L)112mm(W)32mm(H)
Weight	About 200g

Hardware
User Port (LAN)		RJ-45 connector
		2.5GE
		Full/half duplex
		Auto MDI/ MDI-X
Indicators		PWR / XGSPON / LOS / LAN / INT
PON Port	PON Mode	XGSPON：FSAN G.9807.1 standard
	PON Rate	XGSPON：10Gbps/10Gbps downstream/upstream
	Wavelength	Transmit: 1270nm	Receiver: 1577nm
	Receiving sensitivity	XGSPON：-28dBm
	Saturated power	XGSPON：-9dBm
	Average sending	XGSPON：+4～+9dBm
