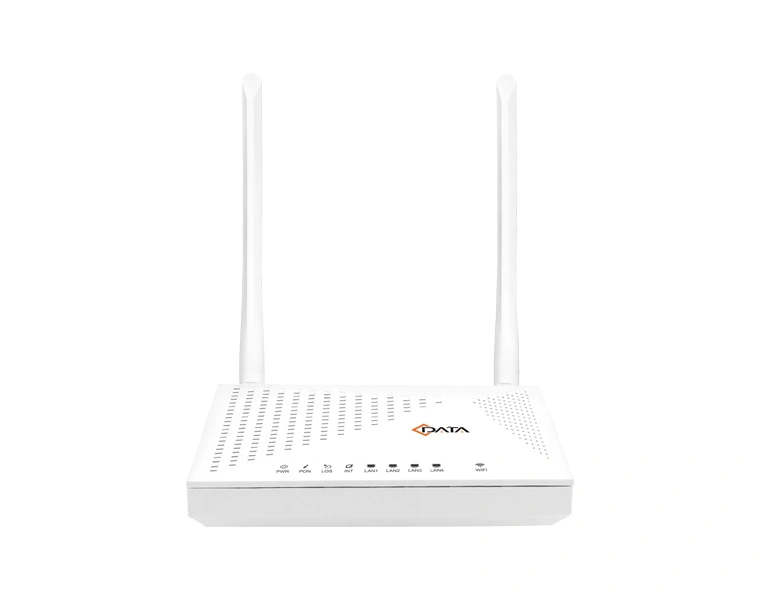

FD514GW-R460
4GE+WIFI XPON ONU

Name: FD514GW-R460
Brand: Shenzhen C-Data Technology Co., Ltd.

FD514GW-R460 have a high reliability and provide quality of service guarantee, easy management, flexible expansion and networking. It fully meets the ITU-T and IEEE technical standards and have good compatibility with third party OLT.

FD514GW-R460 integrates wireless function which meets 802.11 b/g/n technical standards. The 2.4GHz transmission rate up to 300Mbps.It has the characteristics of strong penetrating power and wide coverage. It can provide users with more efficient data transmission security.

 Download  Inquiry

Technical Specifications

Item		FD514GW-R460
Specifications		1xPON + 4GE RJ45 + Wi-Fi
GPON/EPON Port		Single mode single fiber
	GPON	FSAN G.984.2 standard,Class B+
	EPON	1000BASE-PX20+ symmetric
	GPON	2.488Gbps/1.244Gbps downstream/upstream
	EPON	1.25Gbps downstream/upstream
	Wavelength	Transmit: 1310nm Receiver: 1490nm
	Receiving sensitivity	GPON：-28dBm EPON：-27dBm
	Saturated power	GPON：-8dBm EPON：-3dBm
	Transmitting power	GPON：0.5～5dBm EPON:0～4dBm

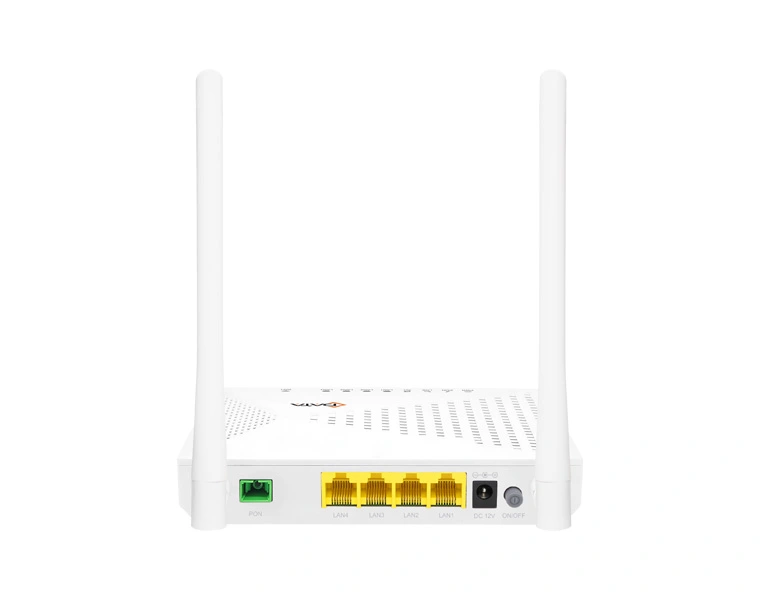

User Port(LAN)		RJ-45 connector
		4*10/100/1000 Mbps adaptive Ethernet port
		Full/half duplex
		Auto MDI/MDI-X
WIFI performance parameters		IEEE802.11b/g/n(2.4G)
		Max rate: 300M(2.4G)
		MAX TX power 2.4G:17dBm
Indicators		PWR / PON / LOS / LAN / INT / WIFI
Power		External 12VDC/1A power supply adapter
Power		Power consumption:<6W
Dimension and Weight	Item Dimension	160mm(L) x 139.5mm(W) x 28.5mm (H)
Dimension and Weight	Item weight	0.228kg
Environmental Specifications	Operating temperature	0 to 40ºC
	Storage temperature	-40 to 85ºC
	Operating humidity	10% to 90%(Non-condensing)
