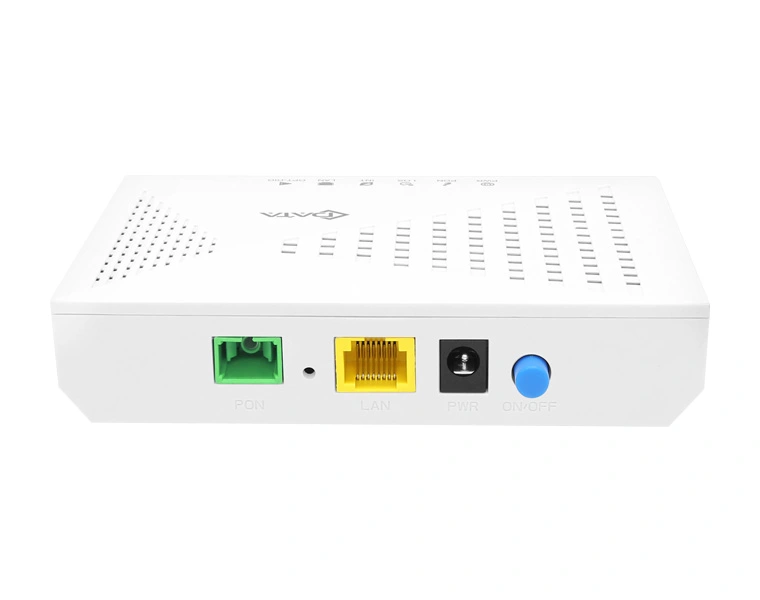

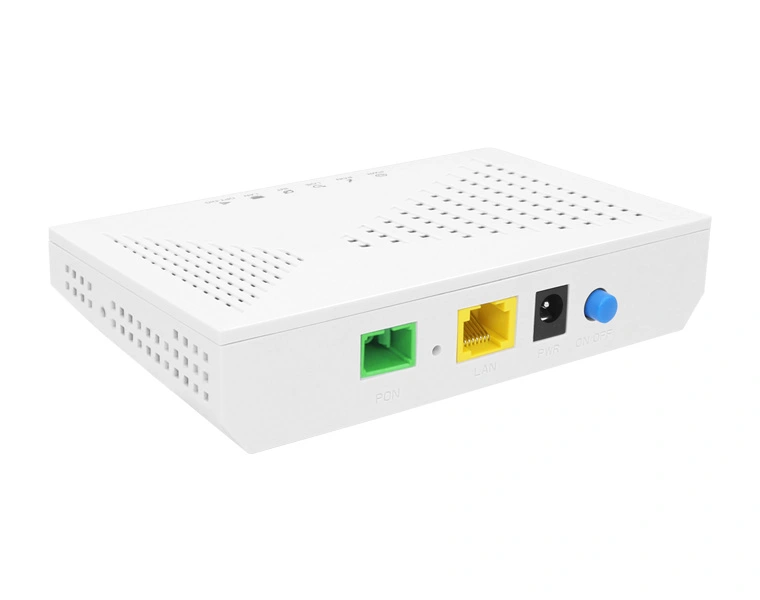

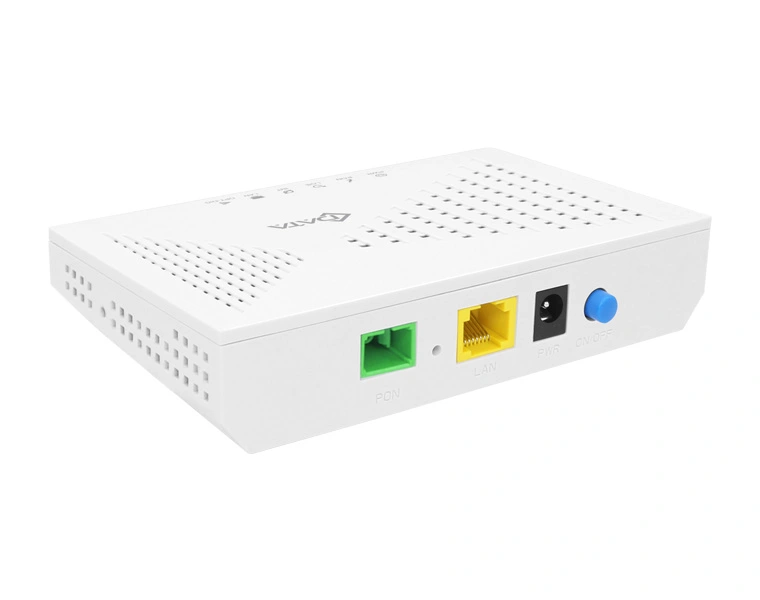

FD511G-F360 dual-mode ONU supports EPON and GPON two modes access. The ONU automatically switches into the corresponding PON mode by identifying the local OLT mode to complete GPON or EPON adaptive access.
FD511G-F360 features high-performance forwarding capabilities to ensure excellent experience with Internet services. It has good third-party compatibility to work with the third party OLT, such as Huawei/ZTE/Fiberhome/Alcatel-Lucent. It provides a perfect terminal solution and future-oriented service supporting capabilities for FTTH deployment.
| Item | FD511G-F360 | |
| Specifications | 1*xPON + 1*GE RJ45 | |
| GPON/EPON Port | SC/APC single mode single fiber | |
| GPON | FSAN G.984.2 standard,Class B+ | |
| EPON | 1000BASE-PX20+ symmetric | |
| GPON | 2.488Gbps/1.244Gbps downstream/upstream | |
| EPON | 1.25Gbps downstream/upstream | |
| Wavelength | Transmit: 1310nm Receiver: 1490nm | |
| Receiving sensitivity | GPON: -28dBm EPON: -27dBm | |
| Saturated power | GPON: -8dBm EPON: -3dBm | |
| Transmitting power | GPON: 0.5～5dBm EPON: 0～4dBm | |
| User Port(LAN) | 1*10/100/1000 Mbps Auto-negotiation RJ45 ports | |
| Full Duplex / Half-Duplex | ||
| RJ45, Auto-MDI/MDI-X | ||
| Transmission Distance 100 Meter | ||

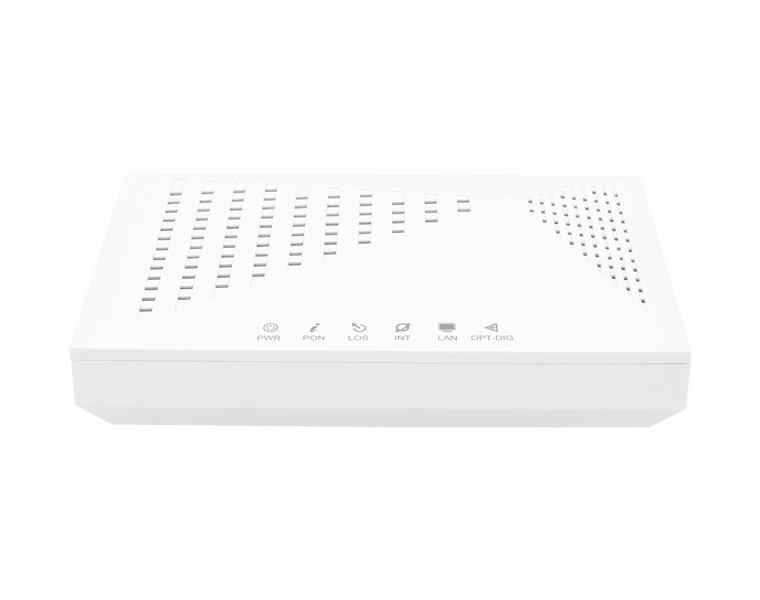

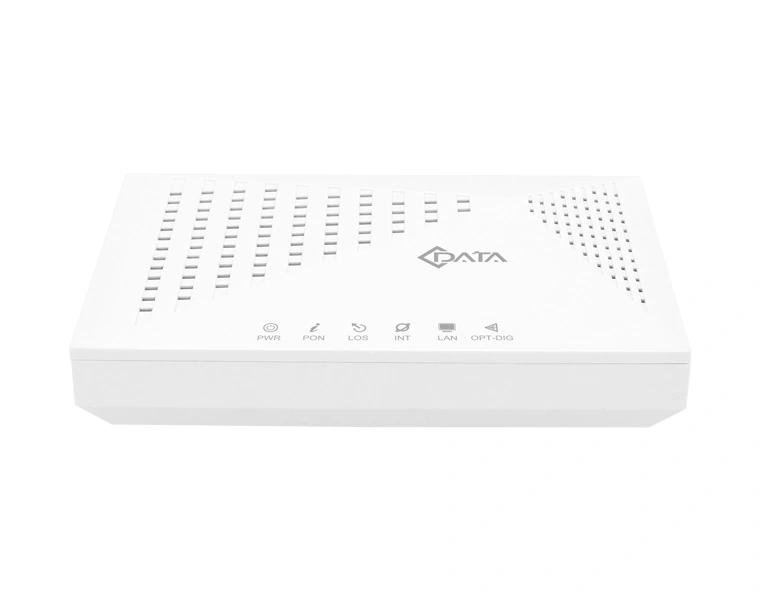

| Indicators | PWR / PON / LAN / INT/ OPT-DIG | |
| Power | External 12V/0.5A DC power supply adapter | |
| Power consumption:<4.5W | ||
| Dimension and Weight | Item Dimension | 125mm(L) x 80mm(W) x 28mm (H) |
| Item weight | about 125g | |
| Environmental Specifications | Operating temperature | 0 to 40ºC |
| Operating humidity | 10% to 90%(Non-condensing) |
