L2 Managed Ethernet Switch

L2 Managed Ethernet PoE Switch
L2 Managed Ethernet PoE Switch

Designed for Business Networking

  • ACL
    ACL
  • ERPS
    ERPS
  • GE Ports
    GE Ports
  • IEEE
    IEEE
  • LACP
    LACP
  • Maintenance
    Maintenance
  • Plug and Play
    Plug and Play
  • POE Power
    POE Power

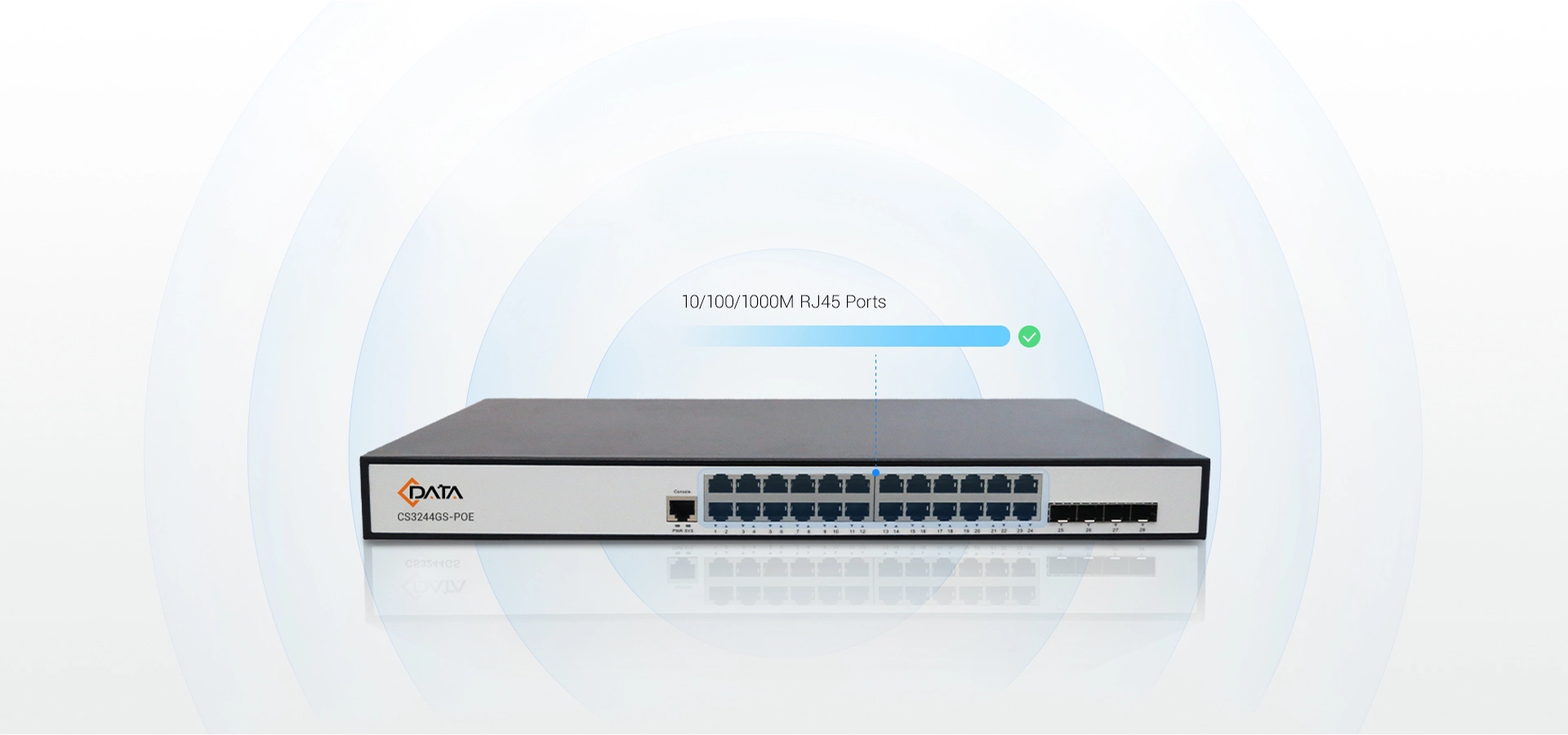

All GE Ports, Flexible Networking
All GE Ports, Flexible Networking

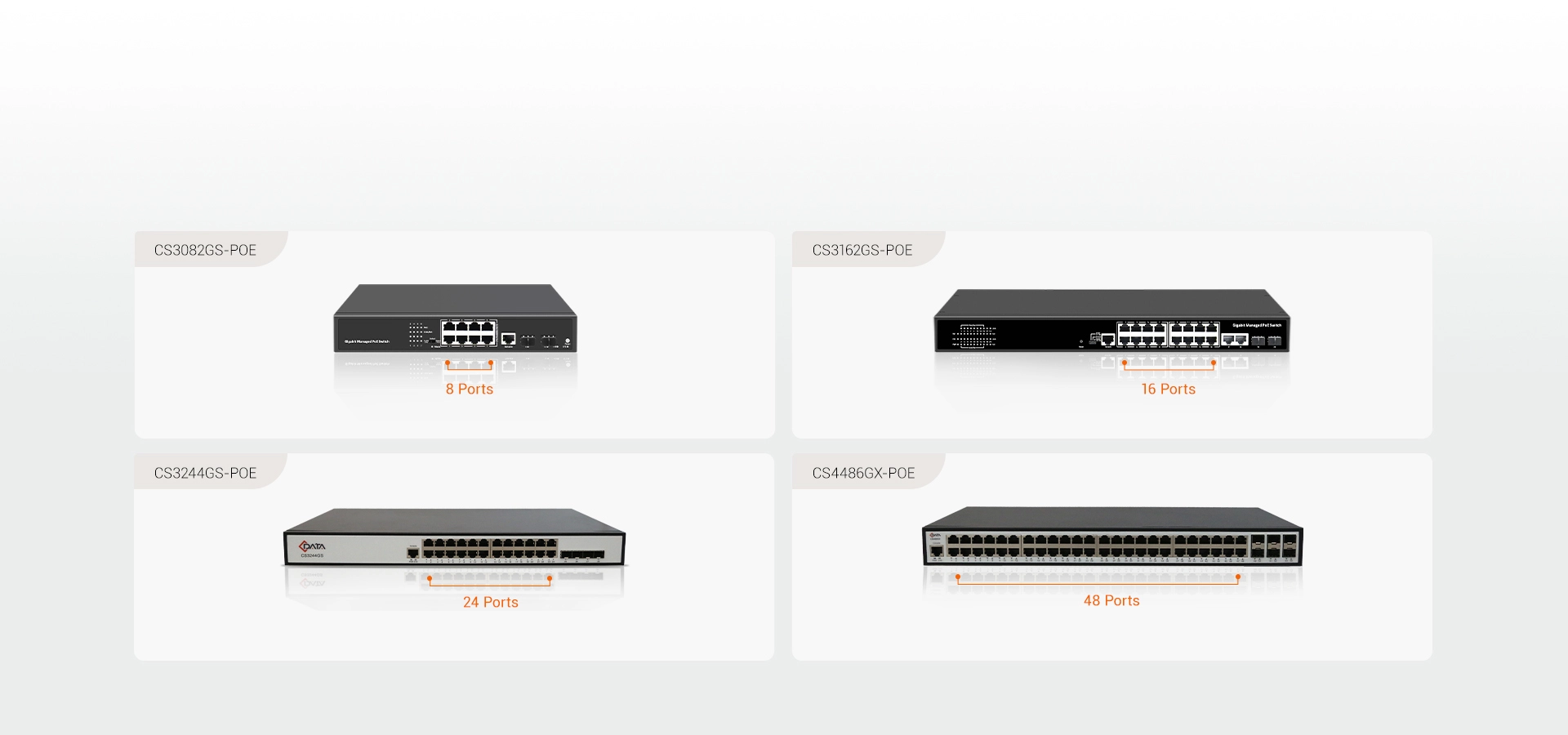

8/16/24/48 multi-specification port products support "Ethernet port + Optical port" , which is convenient for users to flexibly form a network.

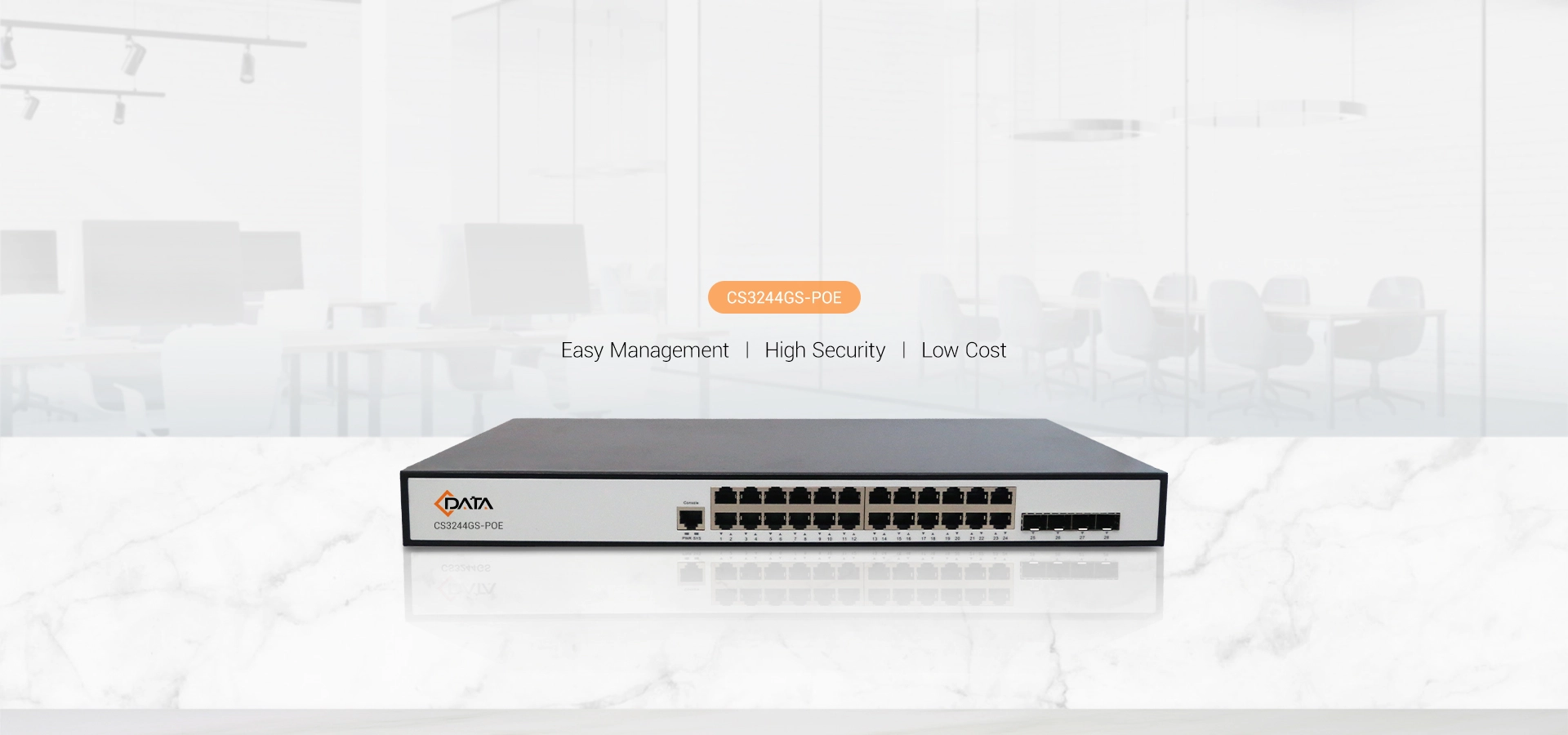

High Reliability, Efficient Network Operation
High Reliability, Efficient Network Operation

QoS provides different priorities for different applications, users or data flows, ensuring that important traffic is not delayed or lost.

ERPS provides failover protection within 50 milliseconds, effectively increasing network redundancy.

Support PoE Power Supply, Flexible and Convenient
Support PoE Power Supply, Flexible and Convenient

The PoE model supports PoE power supply and follows the IEEE 802.3af/at standard to meet the PoE power supply requirements of security monitoring, teleconferencing systems, wireless coverage and other scenarios.

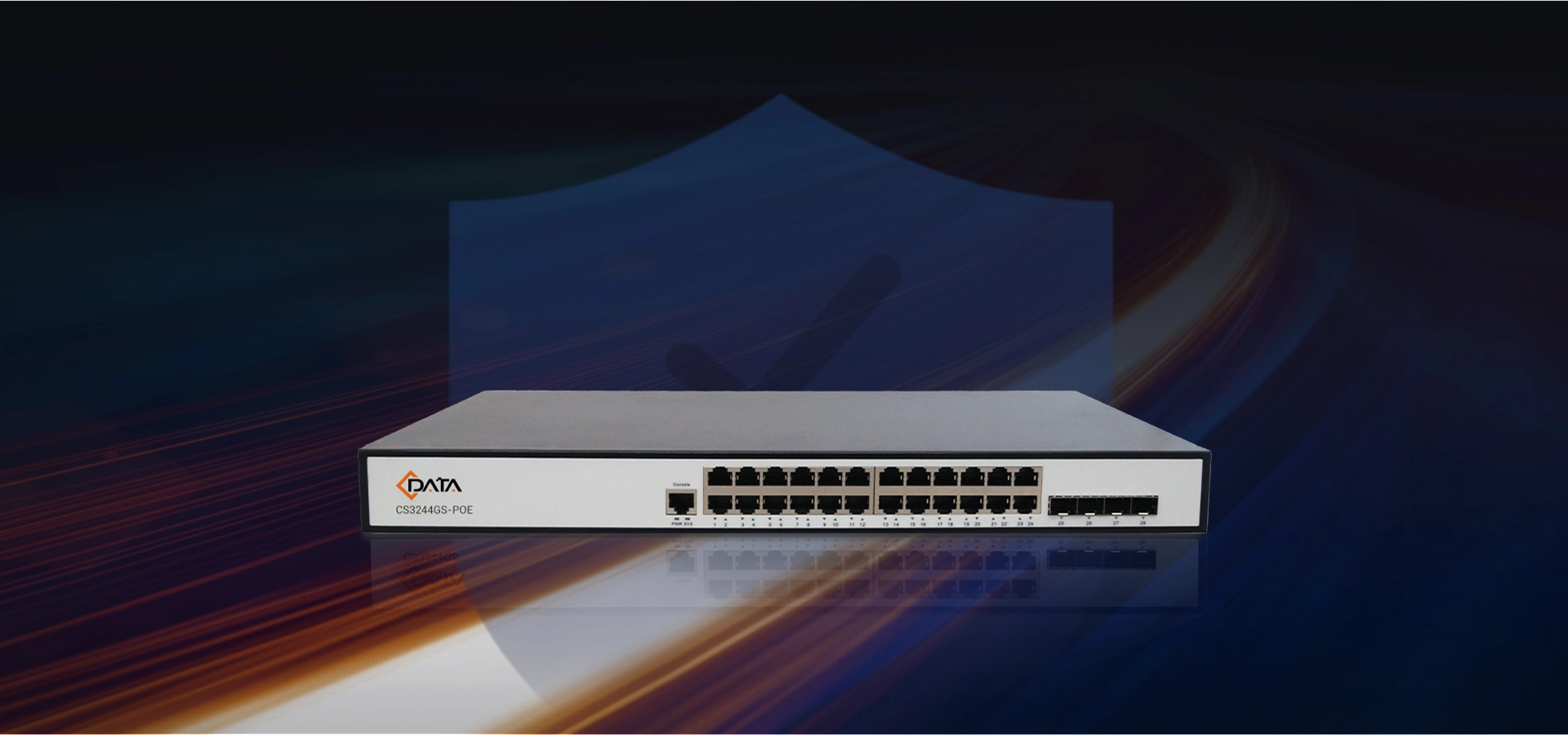

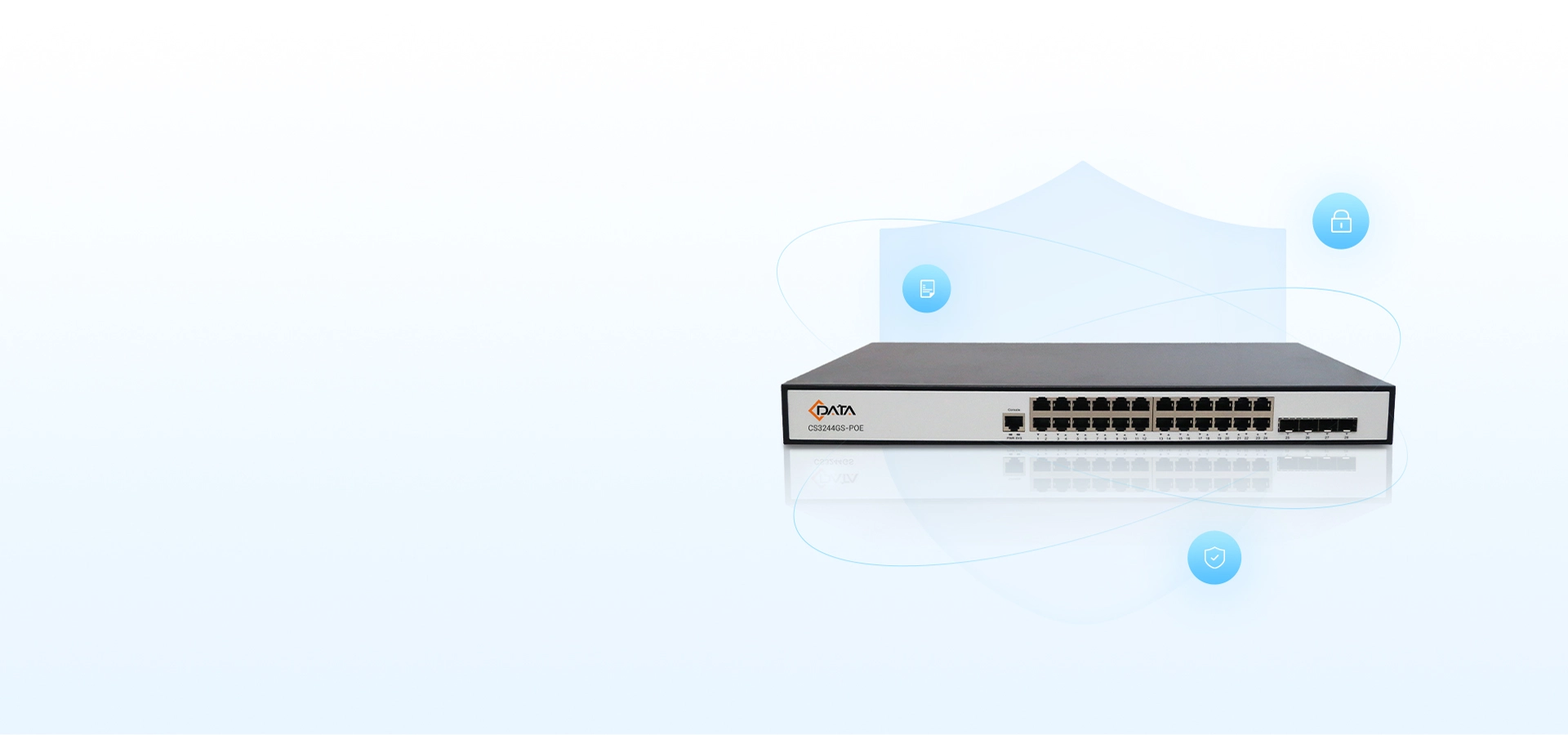

Multiple Protection Mechanisms, Network Security is Guaranteed
Multiple Protection Mechanisms, Network Security is Guaranteed

Multiple protection mechanisms such as ARP protection, IP source protection, 802.1X authentication, and DHCP Snooping can effectively prevent malicious network attacks and ensure network security.

Plug and Play, Quick Installation
Plug and Play, Quick Installation

Plug and play, eliminating tedious configuration steps, even newcomers can get started quickly.

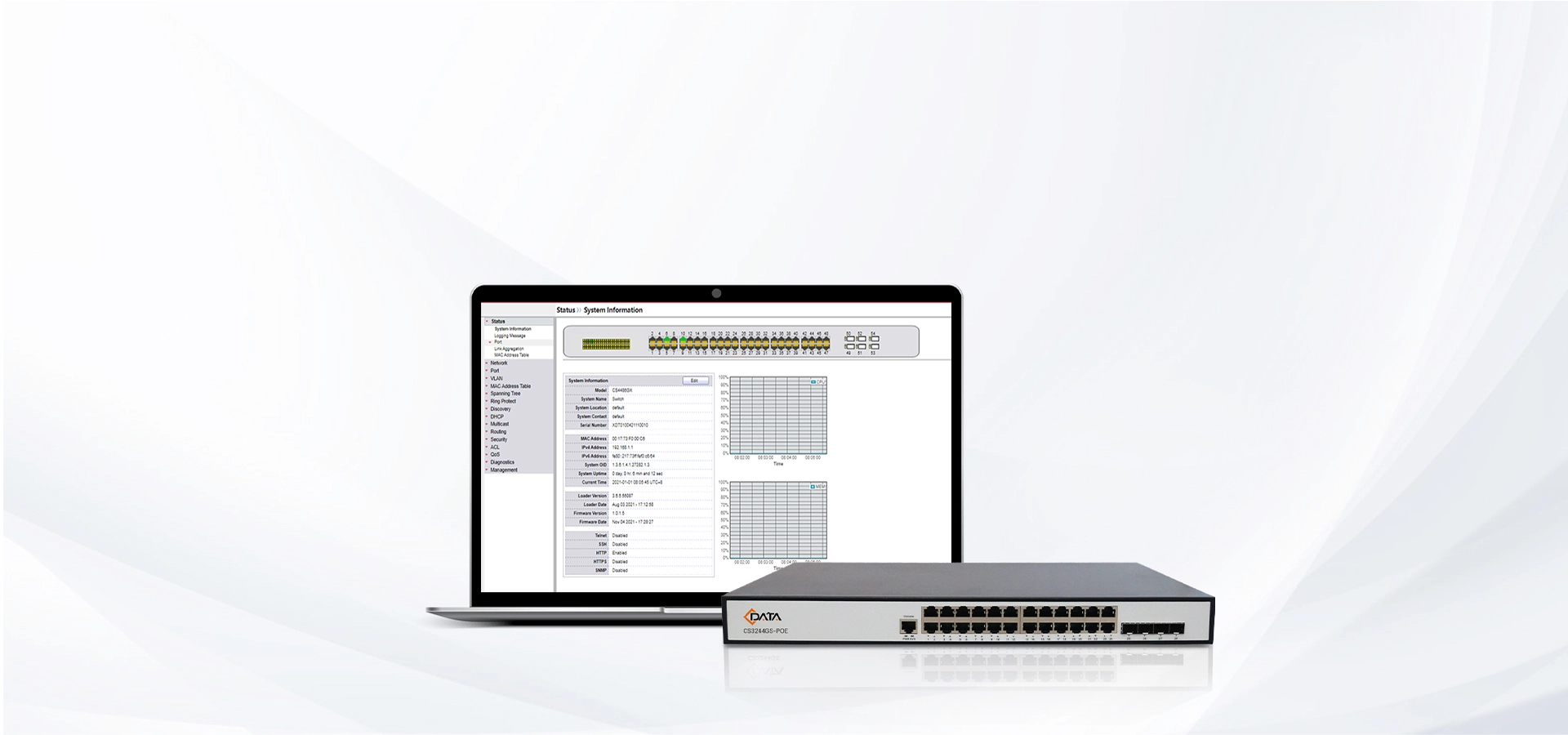

Remote Management, Easy Maintenance
Remote Management, Easy Maintenance

It supports diversified management and maintenance methods such as Web, CLI (Console, Telnet), and SNMP, reducing the burden of operation and maintenance.


Various Scenarios, Easy to Deal With
Various Scenarios, Easy to Deal With

It is suitable for various application scenarios such as campus, hotel and enterprise campus network access.

RELATED PRODUCTS


Item


L2 L3 Managed Ethernet Switch

CS3082GS


L2 L3 Managed Ethernet Switch

CS3164GS-POE


L2 L3 Managed Ethernet Switch

CS3244GC-POE


L2 L3 Managed Ethernet Switch

CS5484GX

Specifications
8*RJ45 + 2*1000M SFP16*RJ45 PoE + 2*RJ45 + 2*1000M SFP24*RJ45 PoE + 4*1000M SFP combo48*RJ45 + 4*10G SFP+
Downlink ports
8*10/100/1000MBASE-T  RJ4516*10/100/1000MBASE-T  RJ4524*10/100/1000BASE-T  RJ4548*10/100/1000BASE-T  RJ45
Uplink ports
2* 1000M SFP2* 1000M SFP
2*1000M RJ45		4*SFP Combo4*10G SFP+
Console port
1 pcs1 pcs1 pcs1 pcs
USB port



1 pcs
Switching capability
20Gbps40Gbps56Gbps176Gbps
Packets switching capability
14.88Mpps29.76Mpps41.7Mpps131Mpps
Switching method
Storage forwardingStorage forwardingStorage forwardingStorage forwarding
LED light
PWR、SYS、Link、ACTPWR, SYS, PoE, Link/ACTpower,ports,syspower,ports,sys
PoE

Max Power:200W（Optional 300W),port MAX 30WMax Power:300W（Optional：400W),port MAX 30W
Enviroment parametersWork temperature-15 - to 55℃-15 - to 55℃-20 - to 50℃-10 - to 50℃
Storage temperature-40 - 70℃-40 - 70℃-40 - 85℃-40 - 85℃
Work humidity10% to 90%10% to 90%10% to 90%10% to 90%
Storage humidity10% to 90%10% to 90%10% to 95%10% to 95%
WeightProduct Weight0.7KG2.7KG3.9KG3.87KG
Packing Weight1.2KG3.2KG4.6KG4.70KG
Jumbo Frame
9K9K9.6Kbytes12Kbytes
MAC table size
8K8K8K32K
Flash size
16MB16MB16MB32MB
DDR3 size
128MB128MB128MB512MB
Power
AC100-240V/50-60HzAC100-240V/50-60HzAC100～240VAC100-240V/50-60Hz
Power consumption


Full load <= 36WFull load <= 46W
Dimention（W*D*Hmm）
200*120*45mm440*205*44mm440*280*44mm440*280*44mm
Certification compliance
FCC CE ROHSFCC CE ROHSFCC CE ROHSFCC CE ROHS


ORDERING INFORMATION

NO.Product ModelSpecificationsAccessories
1CS3082GS8*RJ45 + 2*1000M SFP2*L-shaped bracket with screws
2CS3082GS-POE8*RJ45 PoE + 2*1000M SFP2*L-shaped bracket with screws
3CS3164GS-POE16*RJ45 PoE + 2*RJ45 + 2*1000M SFP2*L-shaped bracket with screws
4CS3244GC-POE24*RJ45 PoE + 4*1000M SFP combo2*L-shaped bracket with screws
5CS3244GS24*RJ45 + 4*1000M SFP2*L-shaped bracket with screws
6CS5244GX24*RJ45 + 4*10G SFP+2*L-shaped bracket with screws
7CS5244GX-POE24*RJ45 PoE + 4*10G SFP+2*L-shaped bracket with screws
8CS5484GX48*RJ45 + 4*10G SFP+2*L-shaped bracket with screws
9CS5484GX-POE48*RJ45 PoE + 4*10G SFP+2*L-shaped bracket with screws
